Atomos Ninja Flame 7.1-inch AtomHDR package b

code:ATOMOSNINJAFLAMEPACKB
Condition: New
  • Offers Available
  • Free UK Standard Delivery when you spend £300.00 inc VAT
£1,141.38 (ex. VAT) (FREE UK Delivery)
RRP: £1,318.32 (ex. VAT) You Save: £176.94 (ex. VAT) (13%)
( £1,369.65 (inc. VAT) inc. VAT)
Item Available1    |  Usually dispatched within 24 hours
Add to Basket
This product has been added to your basket...
  • Continue Shopping
  • Checkout

Atomos AO-ATOMNJAFL2 ( AO ATOMNJAFL2, AOATOMNJAFL2, AO/ATOMNJAFL2) Ninja Flame 7.1-inch AtomHDR 1500nit Field Monitor with 4K Recording package B includes:

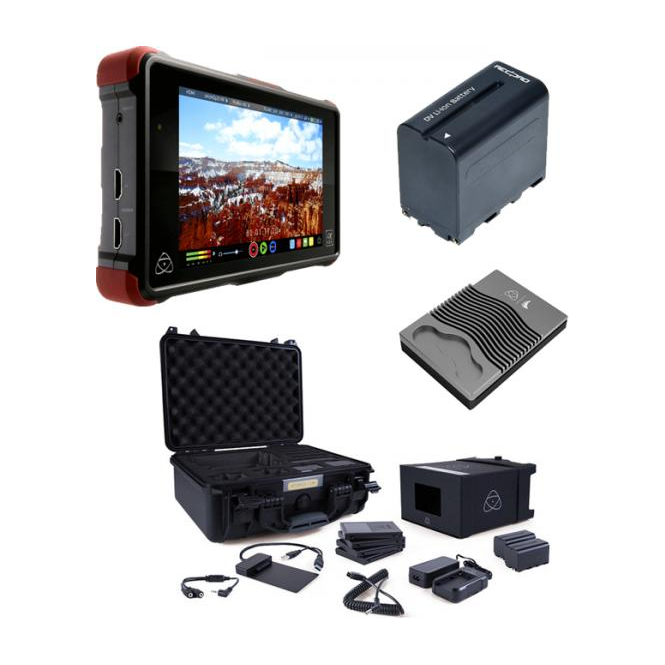

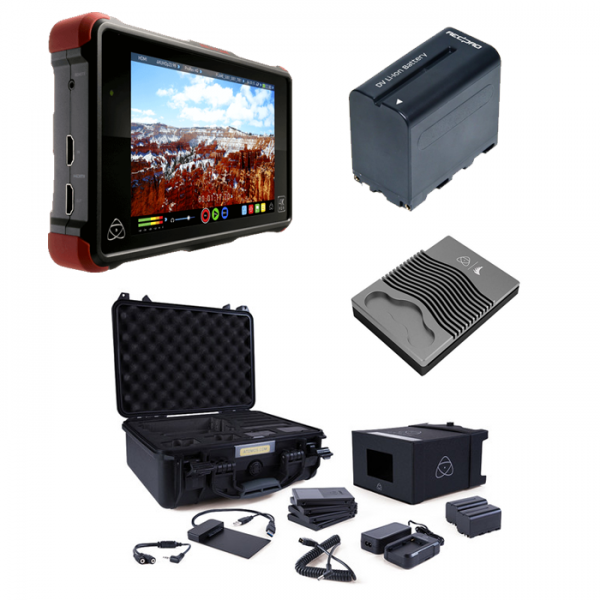

1x Atomos Ninja Flame 7.1-inch AtomHDR 1500nit Field Monitor with 4K Recording (AO-ATOMNJAFL2)

1x Atomos Accessory Kit for Flame/Inferno Series with HPRC Carry Case (AO-ATOMACCKT1)

1x Angel-Bird AB-4KRAWATOM500 Atomos MasterCaddy 4K RAW 500GB (AB-4KRAWATOM500)

*500GB will give provide approximately 5 hours of HD or 1,5 hours of 4K

1x FREE RedPro RP-NPF970 Lithium Ion Battery for any device using NPF style batteries  (RP-NPF970) worth £57.00


*Digibroadcast has put together some bespoke Atomos packages for our clients based on our own research and surveys and holds the right to protect all of its content ©



Change the way you shoot with Log. Record Log in 4K or HD ProRes/DNxHR from DSLR's with the Ninja Flame's HDMI input and thanks to the AtomHDR engine's combination of 10+ stops dynamic range, 1500nit brightness and 10-bit color processing you can monitor the HDR Log with vivid, natural colors.


SIMPLE OS, SOPHISTICATED SHOTS

The Flame Series is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Safe Area, luma/RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LUTs or upload .cube files) and options for de-squeezing anamorphic content.


CONTINUOUS POWER IS BACK... WITH SUPER FAST CHARGING.

Our patented continuous power system pioneered on our HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (both included with the product) means that continuous power in the field is all but assured.


ADVANCED DSLR AUDIO MONITORING

Record audio as well as video externally on the Ninja Flame. Monitor up to 8ch of HDMI audio or 2ch analog line in on the dedicated audio meters, all locked frame accurate with adjustment for frame delay, gain adjustment and Mic level adjustment when using external microphones (3.5mm unbalanced input).


ADVANCED RECORDING CAPABILITY

Outside of 10-bit 4:2:2 ProRes/DNx, the Ninja Flame adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI from select Canon, Sony, Panasonic, Nikon cameras. Convert interlace video from your camera to progressive on the fly with built-in 3:2 and 2:2 pulldown and gain advanced functionality like Pre-roll (continuous cache recording to never miss the action) and Time lapse to maximise your creativity.


INTENSE DETAIL SCORCHING BRIGHTNESS

Current monitors force filmmaking compromises due to a lack of brightness & brightness range (dynamic range). Expose for highlights and lose shadow detail or shoot in Log with a flat, washed out image. Enter the Ninja Flame, a 7" AtomHDR 1500nit Field Monitor with 4K/HD 10-bit ProRes/DNx Recording over HDMI. With the AtomHDR engine, it has the brightness and dynamic range to show all the detail of HDR Log, at all brightness ranges, with natural, vibrant colors.



Camera Log (S-Log2, S-Log3, C-Log, V-Log etc) delivers maximum sensor detail in your recordings, but on monitors it looks washed out & makes judging exposure difficult. The compromise for filmmakers is to use LUT's to get the approximate "look" but sacrifice detail or use calibration cards, waveform & some “rule of thumb” figures to set exposure correctly. AtomHDR is the solution, accurately displaying HDR Log footage with the brightness to see Log as the eye sees it.


SCENES IGNITE WITH 1500NITS OF LIGHT

Not all scenes call for HDR Log recording. In situations that don't call for 10 stops of dynamic range, use the intensity of the 1500nit panel to monitor traditional standard dynamic range (SDR/Rec709) video at high brightness for outdoor monitoring.


Simply pick the right mode, HDR or High Bright SDR, and get busy setting up your shot on the premium 7" display boasting 10-bit processing, 1920x1200 resolution, 325ppi pixel density, optional calibration to overcome natural LCD color drift and an arsenal of precision video setup tools for perfect shots every time.


GET MORE FROM YOUR DSLR

The perfect partner for DSLR and Mirrorless cameras with Log output over HDMI. From gimbal operators to Corporate to Indy filmmakers, your recordings are instantly upgraded to the defacto standard for Hollywood, Indie & Broadcasters (ProRes and DNxHR), ensuring you're not technically rejected in Post and letting you see the detail of your camera's Log on set with natural colors on the calibrated 7" AtomHDR High Bright monitor.


AFFORDABLE, RELIABLE MEDIA

The combination of high capacity media with recording direct from the sensor means that the conventional 30min barrier imposed by many cameras can be bypassed.


RECORD PROFESSIONAL 4K & HD

Recording 4K and high frame rate HD within the camera might seem enough but unless you record with the right codec you're restricting flexibility in post and even run the risk of having your footage technically rejected. Along with the high pixel density of 4K, the Ninja Flame records higher resolution 10-bit color information, more precise yet efficient 4:2:2 color encoding and to visually lossless, edit-ready codecs like Apple ProRes or AVID DNxHR.


Now you're recording professionally, capturing full individual frames just like film and opening up more creativity in post and grading. Additionally, bypassing internal recording also bypasses the 30min recording barrier found on many Mirrorless/DSLR cameras.

Supported formats (Record & Playback)

4K 2160p 24/25/30

HD - high frame rate** 1080p120*, 1080p60/50

HD** 1080i60, 1080i50, 1080p30, 1080p25, 1080p24, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p50

4K UHD downscale for HD monitoring Yes - loop-out & playback

Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3





Realtime hardware encoding

4K-UHD 3840x2160 8/10-bit 4:2:2 to Apple ProRes

HQ, 422, LT DNxHR

HQX, HQ, SQ, LB

1920x1080 8/10-bit 4:2:2 to Apple ProRes

HQ, 422, LT DNxHD

220x, 220, 145, 36



Onboard processing

Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)



Audio in/out (48kHz PCM audio)

HDMI 2 or 8ch 24-bit, camera dependent

SDI -

Audio Line in / Mic in / Headphone out 2ch 48kHz 24-bit



Remote start/stop

HDMI Auto HDMI Trigger

Supported Protocols - Canon, Sony, Atomos Open Standard

SDI -

Other LANC control - Slave

Playback

Playlist Yes

Genlock / LTC -



Playback

Pre-roll record Yes (HD 8s, 4K 2s)

Custom timelapse Yes

Meta data tagging Yes (10 tags available)

Supported media

(Approved List Only) 4K / HD (50/60/120p*)

SSD 2.5”, HDD (7,200 up to 1080p60)



HD

SSD 2.5”, HDD (5,400 up to 1080p30)

Master caddy case Master Caddy II (included)

75mm x 105mm x 12mm

Master caddy dock 2.5” SATA to USB 2.0/3.0

Supported applications Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+

EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /

Autodesk Smoke 2015

XML support FCPX XML native, FCP7 supported with conversion (Adobe compatible)

Accessories included Ninja Flame unit, Custom red HPRC case, Control cable, 2x NP-F750 5200mAh batteries, Fast battery charger, SATA 3/2 to USB 3/2 HDD/SSD docking station, DC to D-Tap coiled cable, Master Caddy II x 5, 12V-3A AC adapter x 2 (Fast charger & DC power), HDR sunhood

Optional extras Atomos HDMI cable, Spyder calibration



Weight

Without batteries & media 620g / 21.9oz

With batteries & media 1064g / 37.5oz

Dimensions (W x H x D mm) 214 x 127 x 45mm, 8.4 x 5 x 1.8”

Construction High quality lightweight ABS Polycarbonate for durability & portability

Built-in armor protection



Power

Operating power 10 - 24W

Compatible batteries NP series and supporting accessories

Input voltage (battery) 6.2V to 16.8V

Battery time (based on 7.4V) -

5200mAh - up to 1.5hrs (monitor & record 4K)

7800mAh - up to 2.2hrs (monitor & record 4K)

DC In 1 x DC in (6.2 - 16.8V)

Continuous power

* Patent pending Primary-secondary battery system Change batteries without losing power Loop batteries continuously



Touchscreen

Size 7.1”

Resolution 1920 x 1200

PPI 325

AtomHDR Yes

Bit depth 10-bit (8+2 FRC)

Brightness 1500nit (+/- 10%)

Aspect ratio 16:9 native

Color Gamut REC709 HDTV

Look up table (LUT) support 3D LUT (.cube le format)

Technology SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder



Video input/loop out

HDMI 1 x HDMI (1.4b)

SDI -

Signal Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video output (play out)

HDMI 1 x HDMI (1.4b)

SDI -

Signal Uncompressed true 10-bit or 8-bit 422 (playback file dependent)



Supported loop out formats

HDMI to HDMI 720p 50/60, 1080i 50/60,

1080p 24/25/30/50/60/120*, 2160p 24/25/30

SDI to SDI -



Video signal conversion

HDMI to SDI -

SDI to HDMI -
