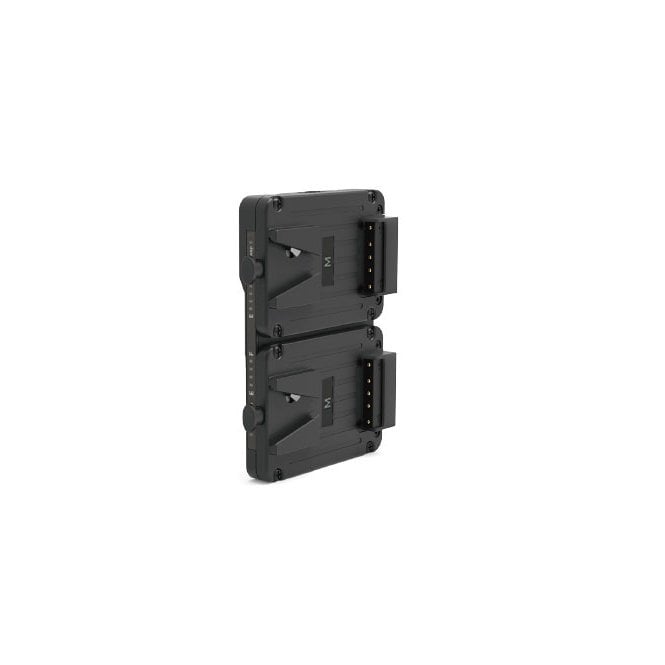

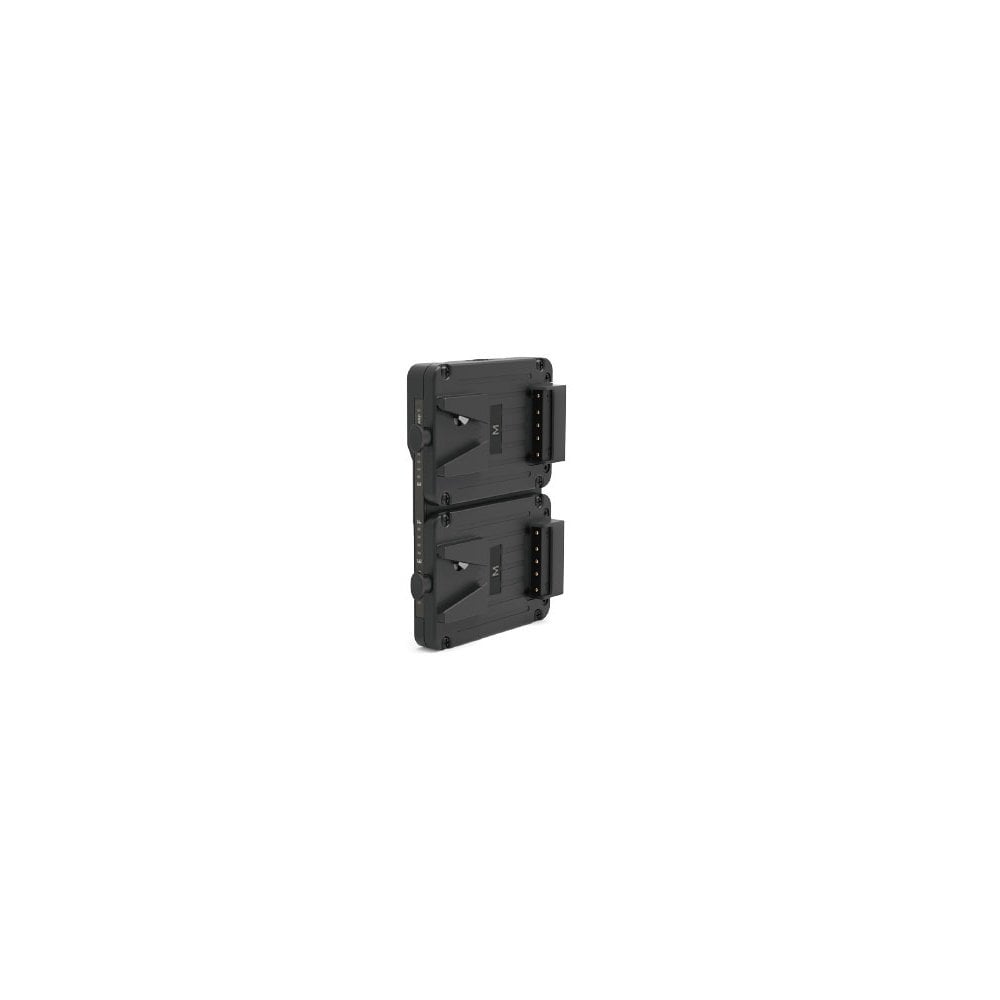

Swit KA-M20S Dual Pocket V-mount Batteries Hot Swap Plate

Swit KA-M20S (KA_M20S, KA/M20S, KA M20S) Dual Pocket V-mount Batteries Hot Swap Plate

KA-M20S is an extender plate for SWIT Pocket V-mount Batteries. Installed with 2x PB-M series batteries, the size is equivalent to a standard large capacity V-mount battery, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.

• Input: SWIT PB-M series Pocket V-mount Batteries x2
• Output : V-mount 11-16.8V, D-tap x2, 11-16.8V
• Max Load: Hot swap mode: V-mount: Max load of the single smaller battery, D-tap: Max load of the single smaller battery and limited 150W/10A
• Max Load: High load mode: V-mount: Max load of the single smaller battery x2, D-tap: Max load of the single smaller battery x2 and limited 150W/10A
• Working temperature : -20°C ~ 50°C
• Dimension: 148×108×28mm
• Net weight: 238g

In the box

• KA-M20S Dual Pocket V-mount Batteries Hot Swap Plate
