HedBox GIGABANK 4L Professional Power Bank Set 1200Wh

Hedbox GIGABANK 4L Professional Power Bank Set 1200Wh(GIGABANK)

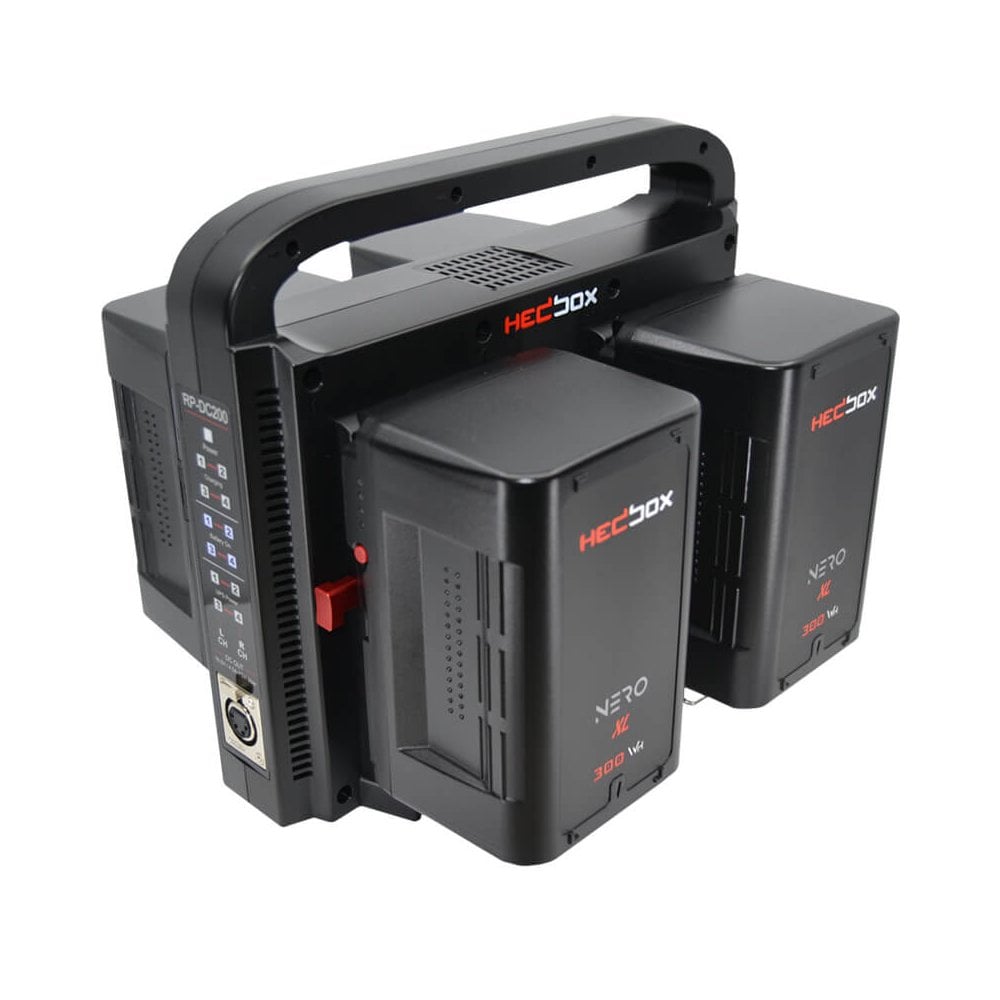

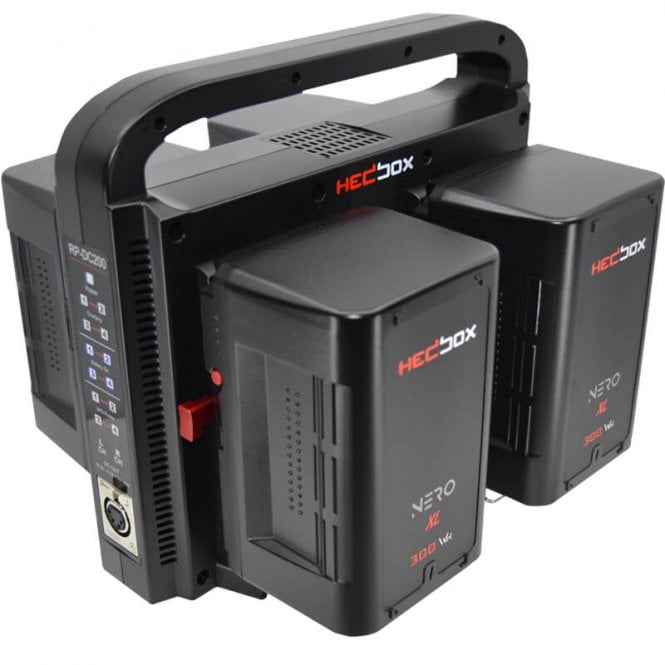

Hedbox GIGABANK is an Intelligent Digital Quad Battery Charger system with four V-Mount (V-Lock) Batteries featuring simultaneous charging and UPS/Power Bank capabilities. LED status indicators provide clear, accurate and precise reporting while integrated support stands ensure stable operation when only one battery is mounted. The included 4-pin XLR female to male DC Power Cable (RPC-DC4X4) enables the GIGABANK to be used as a Power Bank, providing power to the DC output from the AC-input or fitted V-Lok batteries. DC output power of up to 14.5V 4.5A 75W is available.

When running as a Power Bank should the AC-input fail, then the power to the DC is seamlessly switched to a fitted battery, and then to the second battery upon depletion of the first battery, then to the third battery upon depletion of the second battery, and to the forth battery upon depletion of the third battery. This UPS and Continuous Power Supply feature provides a valuable and constant DC power supply for audio, video and lighting equipment with total independence of the regular grid power supply.

Mount / Series Type

V-Mount

Chemistry

Lithium-Ion

Battery Capacity

20,300 mAh / 300 Wh

Capacity per Section (Wh)

300 Wh

Output Voltage

16.5 VDC

Maximum Load

75 W, 4.5 A

Accessory I/O

1x XLR 4-Pin Output

Operating Temperature

-4 to 113°F / -20 to 45°C

Dimensions (W x H x D)

4.9 x 17.5 x 4.5" / 124 x 445 x 114 mm

Weight

7.61 lb / 3.45 kg

In the Box

1x RP-DC200V DIGITAL QUAD CHAGER

4x NERO-XL LI-ION BATTERY

1x RPC-DC4X4 DC 4-PIN XLR POWER CABLE

1x 110V ~ 240V POWER SUPPLY CABLE

1x USER MAUNAL (ENGLISH)
