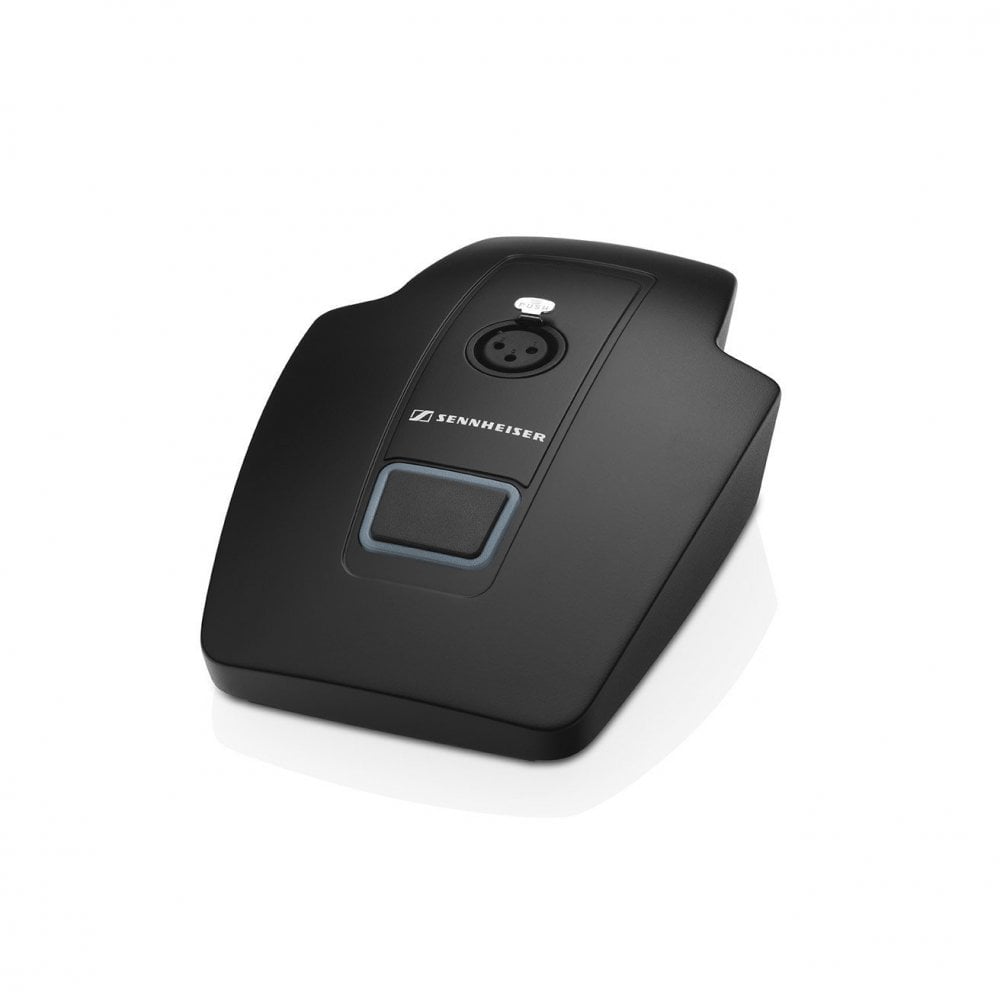

Sennheiser MAT 133-S-B Table Stand with Programmable Mic Button (Black)

Sennheiser 505624 (505 624, 505/624, 505-624, 50-56-24) (MAT-133-S-B, MAT/133-S-B, MAT133-S-B) MAT 133-S-B Table Stand with Programmable Mic Button (Black)

The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate.

The table stand MAT 133 is compatible with MEG 14-40-L.

• Colour: black , nextel grey , LED light ring: red / green
• Dimensions: 120 x 170 x 43 mm (BTH / WDH)
• Connector: Mic in: XLR-3F
• Connector: Mic out: XLR-3M
• Connector: Logic: clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
• Weight: 1210 g
• Phantom powering: P 24 - P 48
• Operating temperature: -10° - +50°C
• Current consumption: 3.7 mA
• Output voltage: Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
• Output voltage: Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V

In The Box

• MAT 133-S table stand
• Quickguide
