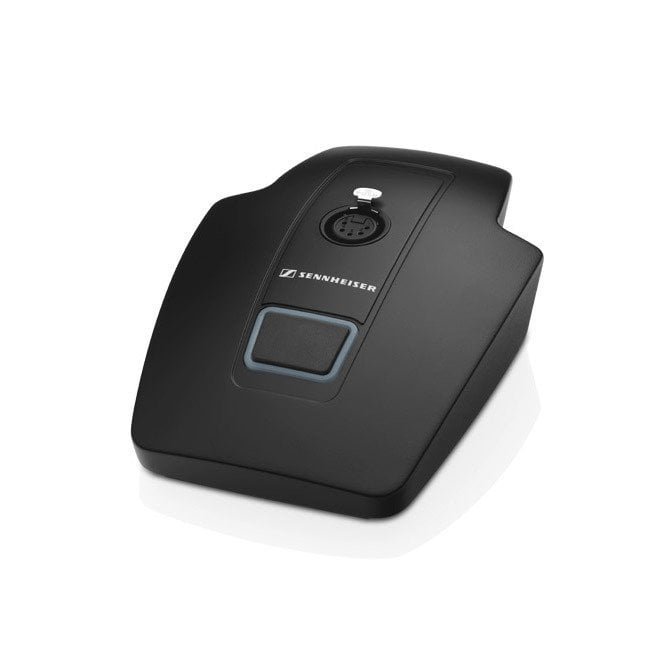

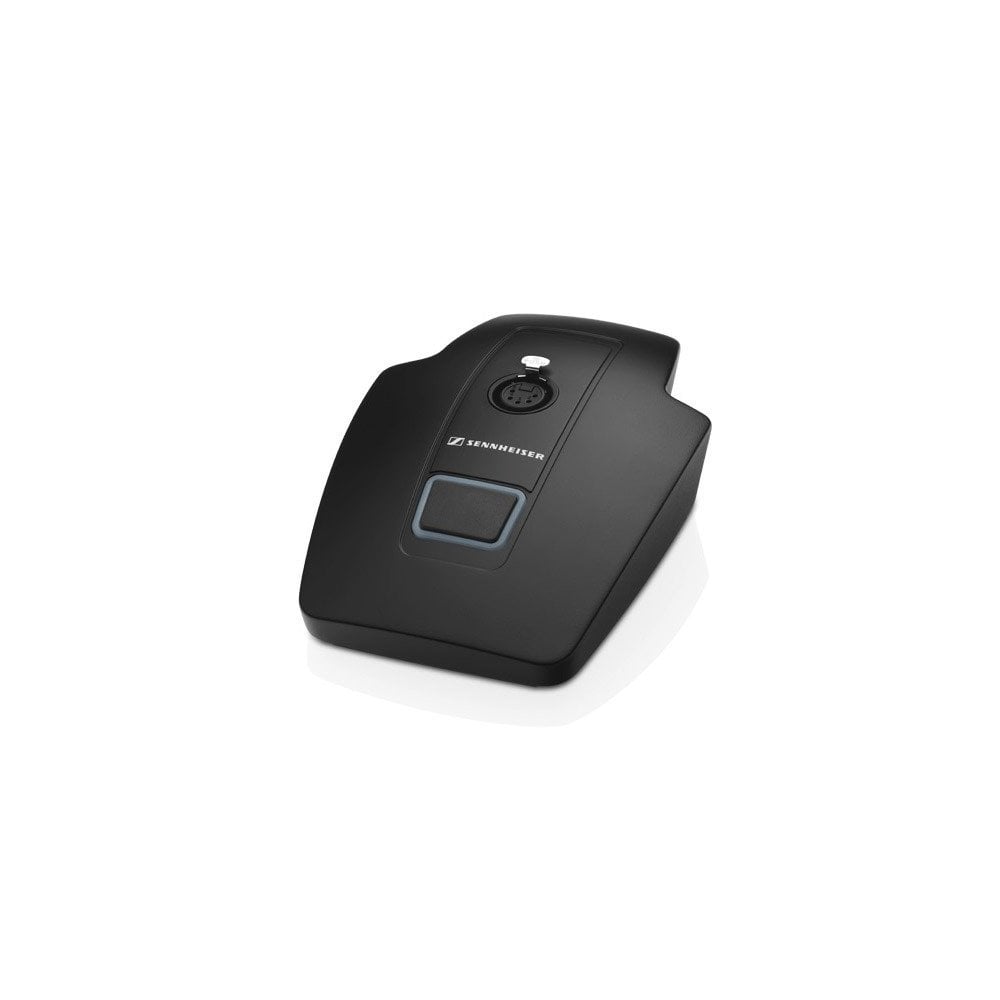

Sennheiser 505626 (505-626, 505/626, 505 626, 50-56-26) (MAT/153-S, MAT-153-S, MAT 153-S) MAT 153-S Table Stand with LED Light Ring Button for 5-Pin XLR Gooseneck Microphone

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.

Connector: MIC IN: XLR-5F, MIC OUT: XLR-3M, 3x terminal

• Colour: black , LED light ring: red / green
• Connector: Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (−), 4 = LED (−), 5 = LED (+)
• Connector: Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = −
• Connector: Clip contact: Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
• Weight: approx. 1,206 g , 1526 g
• Current consumption: 3.7 mA
• Output voltage: Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
• Output voltage: Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V

In The Box

• MAT 153-S table stand
