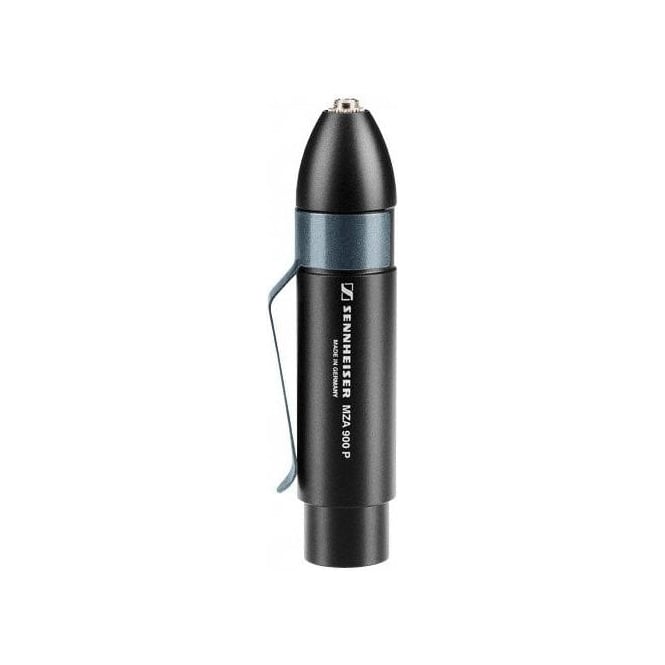

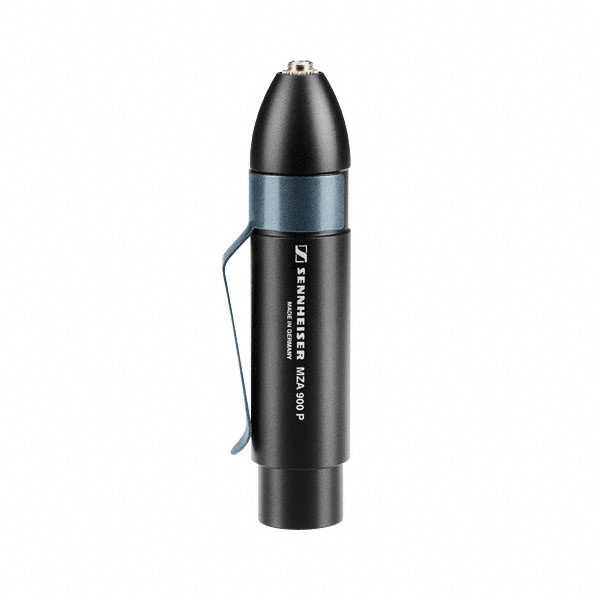

Sennheiser MZA 900 P Microphone Adapter, Phantom

code: 500226
Know Your Frequency | Click Here
  • $178.78
  • RRP: $178.78
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

  • Robust metall chassis
  • Switchable gain (0/-12dB)
  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
  • Two-colour control LED (phantom power, audio peak)
  • Input 3,5mm stereo jack socket, lockable
  • Output XLR-3M

Sennheiser 500226 (50-02-26, 50/02/26, 50 02 26) MZA 900 P (MZA-900-P, MZA/900/P, MZA900P, mza 900 p) Microphone Adapter, Phantom

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:

  • MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
  • MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Gain
  • 0/-12 dB
  • 0/-12 dB
  • 0/-12 dB
Output voltage
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  • 1,8V (P48), 0,6V (P12) @ 0dB gain
  • 20 - 20000 Hz (-1 dB)
Phantom powering
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
  • P12 - P48, 10 - 52V, 2,6 - 2,8mA
Output impedance
  • 100 Ω
  • 100 Ω
  • 100 Ω
  • 100 Ω
  • Dimensions : Ø 19/22 mm, L 100 mm
  • Weight : 60 g
  • Nominal impedance : 100 Ω
  • Phantom powering P12 : - P48, 10 - 52V, 2,6 - 2,8mA
  • Operating temperature : -20.....+60 °C
  • Gain : 0/-12 dB
  • Output voltage : 1,8V (P48), 0,6V (P12) @ 0dB gain

In the box

  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificatee
