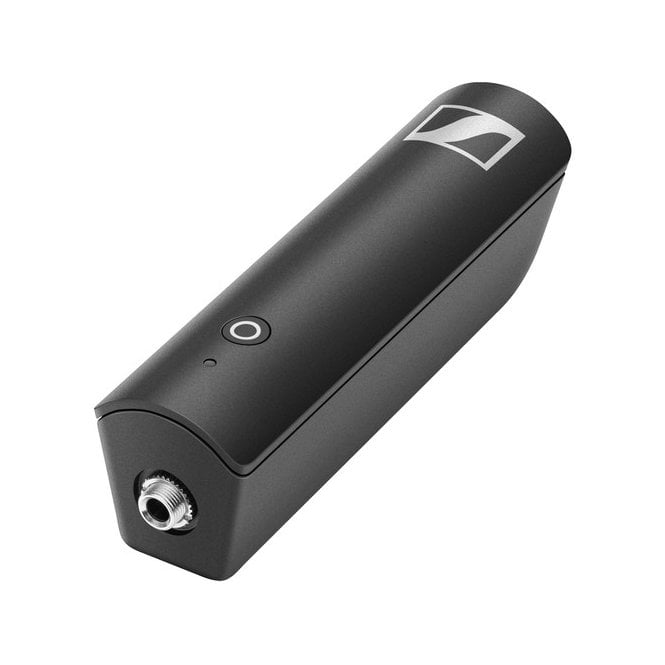

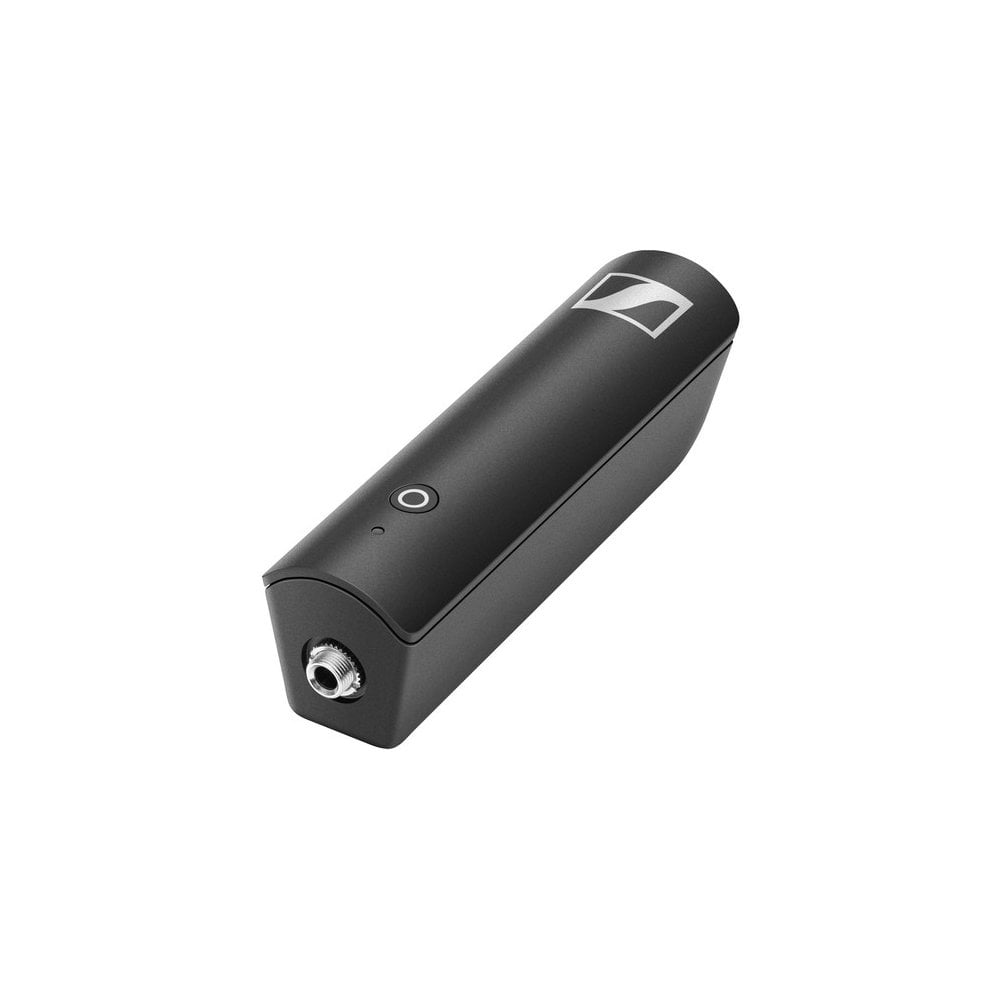

Sennheiser XSW-D Mini Jack RX Mount Receiver (2.4 GHz)

Sennheiser 508500 (508/500, 508_500, 508 500) XSW-D Mini Jack RX Mount Receiver (2.4 GHz)

The Sennheiser XS Wireless Digital series includes ‘plug and play’ wireless transmitters and receivers that operate on the 2.4GHz spectrum for license-free use.

These compact plug-on style units include connection types of 3-pin XLR, 6.3mm jack, or 3.5mm jack and have been designed for uses including vlogging, social rooms, and educational placement.

Multiple transmitters can be linked to a single receiver, and a mute function can be applied from either transmitting or receiving device.

The 3.7V, 850mAh lithium-ion battery provides up to 5 hours of operational run time from a typical 3 hour charge, whilst up to five channels, which are automatically adjusted, can be simultaneously used. Under optimal conditions a 75m range can be achieved.

Receiver

• Form Factor: Camera-Mount
• Antenna: 1 x  Internal
• Number of Audio Channels: 1
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output (Lockable)
• Frequency Response: 80 Hz to 18 kHz
• USB Port: 1 x USB Type-C (Bus Power, Charging)
• Power Requirements: Battery, USB Bus Power
• Battery Type: 1 x Built-In Rechargeable (Not Replaceable)
• Internal Battery Capacity: 850 mAh
• Battery Charging Time: 3 Hours
• Approx. Battery Life: 5 Hours (Lithium Rechargeable)
• Battery Cycle Count: Up to 1000 Cycles
• Housing: Plastic
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Dimensions: 1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

In the Box

• Sennheiser XSW-D MINI JACK RX Camera-Mount Receiver (2.4 GHz)
• USB Type-A to USB Type-C Charging Cable
