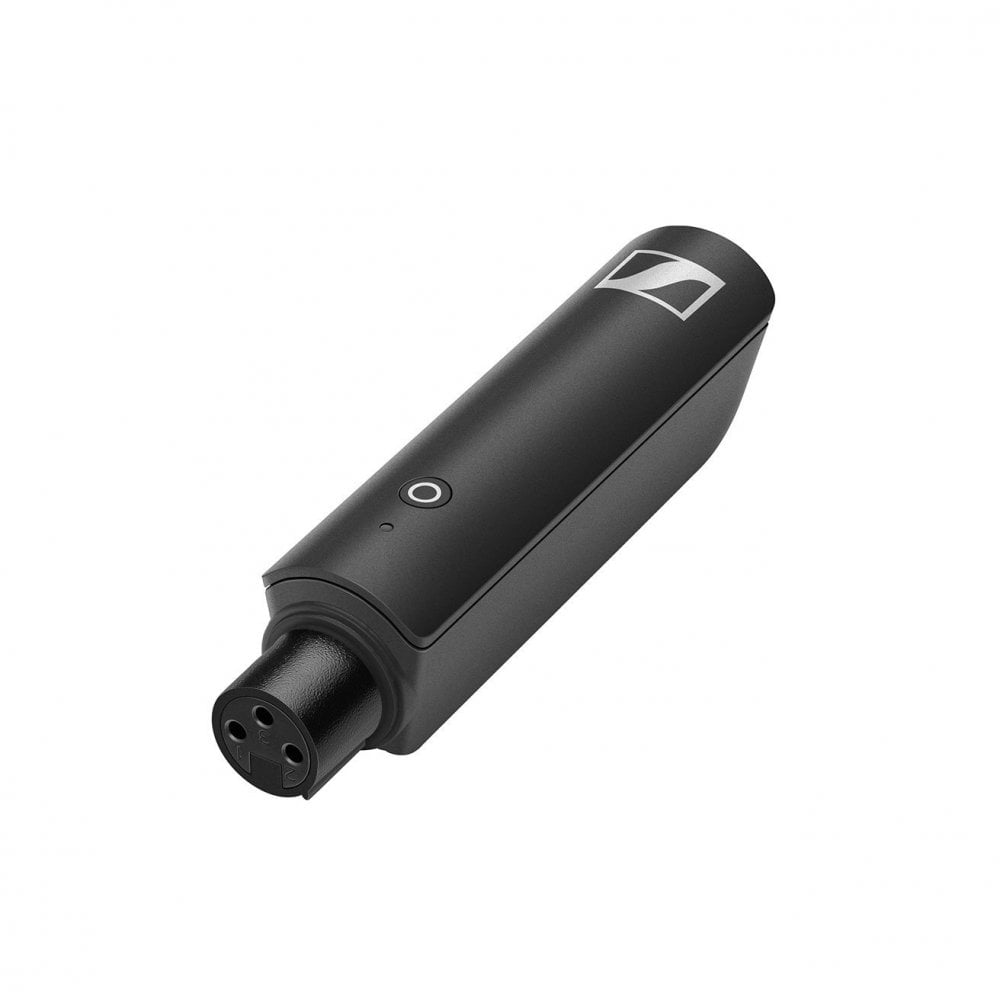

Sennheiser XSW-D XLR Female TX Plug-On Transmitter for XSW-D Digital Wireless System
Sell Your Gear
warranty on this product

Sennheiser XSW-D XLR Female TX Plug-On Transmitter for XSW-D Digital Wireless System

code: 508494
Know Your Frequency | Click Here
  • 139,99 â‚¬
  • RRP: 139,99 â‚¬
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features

  • XLR Microphone Input Connector
  • For Handheld and Shotgun Mics
  • Easy to Use, Plug & Play Operation
  • Lightweight Miniature Housing
  • USB-Rechargeable 5-Hour Battery
  • Includes USB Charging Cable
  • 5 Systems at Once Max, Up to 250' Range

Sennheiser 508494 (508-494,508/494, 50-84-94) (XSW/D, XSW_D) (XLR-Female-TX, XLR/Female/TX) XSW-D XLR Female TX Plug-On Transmitter for XSW-D Digital Wireless System

Part of the Sennheiser XSW-D digital wireless system, the XSW-D XLR FEMALE TX plug-on transmitter is available as an individual component when you're ready to add an additional transmitter to your system or as a replacement unit.

Exceptionally lightweight and low-profile, the XSW-D XLR FEMALE TX features an XLR input connector ready to accommodate a handheld dynamic vocal microphone or self-powered shotgun mic.

The XSW-D puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-play, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on your performance.

Easy to Use

  • The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.

Step Up to Sennheiser Sound Quality

  • Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.

Clean Audio without Drop Outs

  • Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
  • Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.

License-Free Operation Worldwide

  • Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
  • Simply let the system pick a channel for you, and you're ready to go—whether you're working at home or anywhere in the world.



System
  • Frequency Range: 2.400 to 2.483 GHz
  • Latency:
  • Transmission Range: 250' / 76.2 m (Line of Sight)
  • Simultaneous Operation of Units Up: to 5 Systems Simultaneously
  • Frequency Response: 80 Hz to 18 kHz
  • Signal-to-Noise Ratio: ≥106 dB
  • THD: <0.1 %
  • Modulation: GFSK with TDMA
  • Operating Temperature: -10 to 55° C / 14 to 131° F
  • Relative Humidity: 95% (Non-Condensing)
Transmitter
  • Type: Plug-On Transmitter
  • Input Connector: XLR-Female
  • RF Output Power: 10 mW, Maximum (EIRP)
  • Input Sensitivity: 1.2 dBu (Typ. 0 dBu)
  • Battery: Type: Built-In, USB-Rechargeable, Lithium-Ion , Battery Life: 5 Hours, Charging Time: 3 Hours (Typical), Nominal Voltage: 3.7 V,, Cell Capacity: 850 mAh, Input Voltage: 5.0 V (Typical) , Charging Temperature: 32 to 140° F / 0 to 60° C
  • Dimensions: 4.0 x 0.9 x 1.1" / 102 x 24 x 28 mm


In the box

  • Sennheiser XSW-D XLR FEMALE TX - Plug-On Transmitter for XSW-D Digital Wireless System (2.4 GHz)
  • USB Type-A to USB Type-C Charging Cable
Be the first to review XSW-D XLR Female TX Plug-On Transmitter for XSW-D Digital Wireless System. Write a review ›
