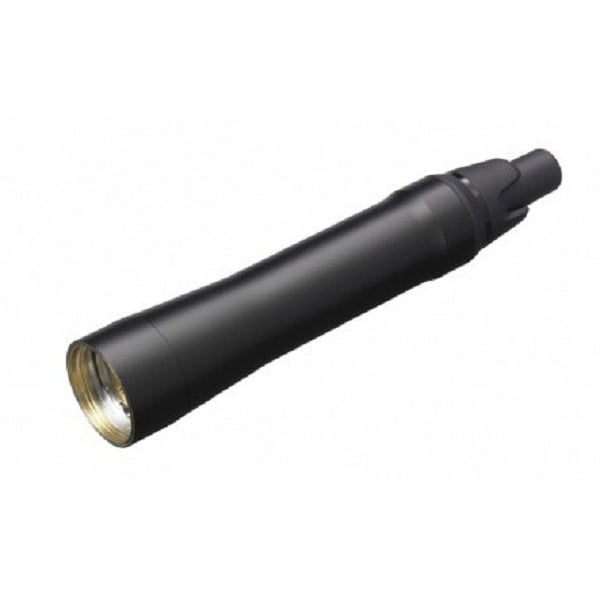

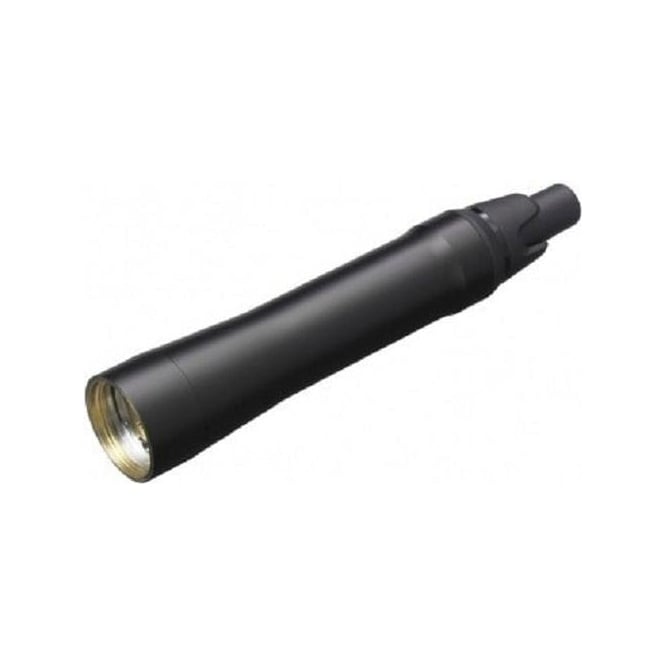

Sony DWM-02N/21 Digital Wireless Handheld Transmitter

Sony DWM-02N/21 (DWM-02N-21, DWM/02N/21, DWM_02N_21, DWM02N21, dwm-02n/21) Digital Wireless Handheld Transmitter

High quality flexible microphone system with three codec modes providing short audio latency and more reliable transmission

The DWM-02N digital wireless microphone forms part of the DWX series system offering high-quality full-digital operation shorter audio latency and more reliable RF transmission mode – ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound.

Maximising flexibility for users, the DWM-02N is not supplied with a microphone capsule as the DWM-02N Interchangeable head mechanism supports Sony and other third party capsules. Sony offers three microphone heads – the CU-C31, CU-F31 and CU-F32 - and there are also a wide variety of third-party capsules to choose from – ensuring whatever your requirements, the DWM-02N wireless handheld microphone is an ideal choice.

The DWX series system delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

The DWX series works with Sony control software Wireless Studio for PC and Wireless Studio Mobile for smartphones* to give users flexible control of the system. Remote control of up to 82 transmitters can be achieved using the Cross Remote™ function combined with the RMU-01 remote control unit.

NOTE: This model is available in multiple versions to support the widest possible range of operating frequencies. Please refer to product specifications for more information.

* Wireless Studio Mobile supported OS: iOS Ver.8.0 or later and Android Ver.4.1 or later.

Operation is not guaranteed on all smartphones.

Low audio latency and high quality sound

MODE2 provides higher quality sound with a 96kHz sampling rate A/D converter and very low audio latency of 1.5 msec.**

Compatibility with DWX series

The DWM-02N has full compatibility with its predecessor DWX series equipment.

Smartphone control*

Wireless Studio Mobile software gives users remote control of the DWX series system via a smartphone.

• Wireless Interface: WiDIF-HP
• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: λ/4 flexible wire
• Type of Emission: G1E or G1D

Carrier Frequencies - CE7:

• CE21: 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps

• RF Power: 1 mW/10 mW/50 mW (e.r.p) selectable
• Maximum Input Level: –16 dBu (with 0 dB attenuator)
• Audio Attenuator Adjustment Range: 0 dB to 21 dB (in 3-dB steps)
• Frequency Response: Transmission: 20Hz to 22kHz (typical)
• Audio Delay: MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)
• Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
• Display: OLED
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries)
• Battery Operating Time: Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output

(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Φ37.1 x 194 mm
• Mass: Approx. 235 g (including batteries)

In the box

• 1x DWM-02N/21 (TV channel 21-29)
• 1x Set with identification rings
• 1x Microphone holder
• 1x USB adapter cable
• 1x Stand adapter
• 1x Transport bag
• 1x PF1/2 to W3/8
• 1x CD-ROM
