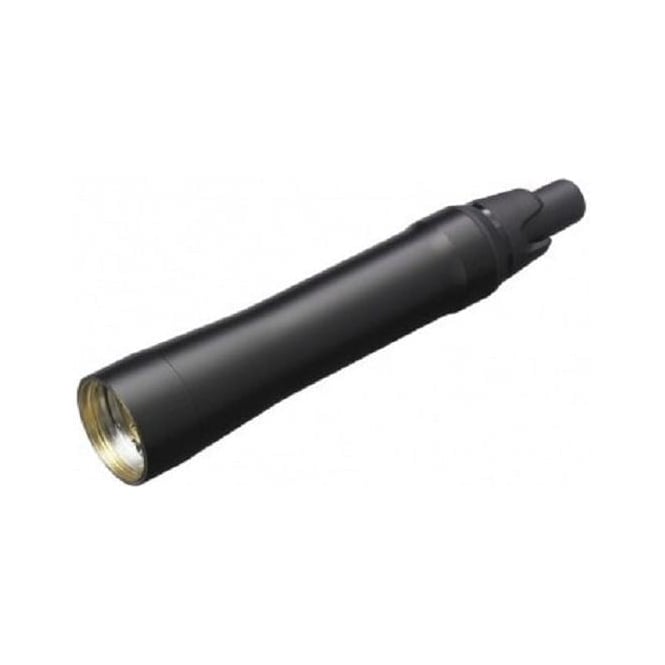

Sony DWM-02N/33 Digital Wireless Handheld Transmitter For DWX Series

Sony DWM-02N/33 (DWM-02N-33, DWM/02N/33, DWM_02N_33, DWM02N33, dwm-02n/33) Digital Wireless Handheld Transmitter For DWX Series

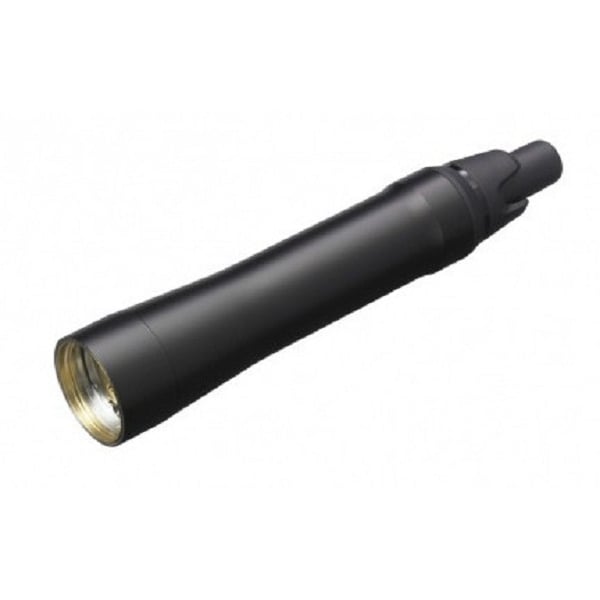

The DWM-02N digital wireless microphone forms part of the DWX N series system that offers high-quality full-digital operation shorter audio latency and more reliable RF transmission mode – ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound.

Maximising flexibility for users, the DWM-02N is not supplied with a microphone capsule as the DWM-02N Interchangeable head mechanism supports Sony and other third party capsules. Sony offers three microphone heads – the CU-C31, CU-F31 and CU-F32 - and there are also a wide variety of third-party capsules to choose from – ensuring whatever your requirements, the DWM-02N wireless handheld microphone is an ideal choice.

The DWX N series system, which consists of the DWT-B01N body-pack transmitter, DWM-02N microphone and DWR-R02DN receiver, delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

The DWX N series works with Sony control software Wireless Studio 4.2 or later for PC and Wireless Studio Mobile for smartphones* to give users flexible control of the system. Remote control of up to 82 transmitters can be achieved using the Cross Remote™ function combined with the RMU-01 remote control unit.

• Wireless Interface: WiDIF-HP
• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: λ/4 flexible wire
• Type of Emission: G1E or G1D

Carrier Frequencies - CE7:

• CE33: 566.025 MHz to 630.000 MHz (TV-33 to TV-40 channels), 25 kHz steps

• RF Power: 1 mW/10 mW/50 mW (e.r.p) selectable
• Maximum Input Level: –16 dBu (with 0 dB attenuator)
• Audio Attenuator Adjustment Range: 0 dB to 21 dB (in 3-dB steps)
• Frequency Response: Transmission: 20Hz to 22kHz (typical)
• Audio Delay: MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)
• Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
• Display: OLED
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries)
• Battery Operating Time: Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output

(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Φ37.1 x 194 mm
• Mass: Approx. 235 g (including batteries)

In the box

• 1x DWM-02N/33 (TV channel 33-40)
• 1x Set with identification rings
• 1x Microphone holder
• 1x USB adapter cable
• 1x Stand adapter
• 1x Transport bag
• 1x PF1/2 to W3/8
• 1x CD-ROM
