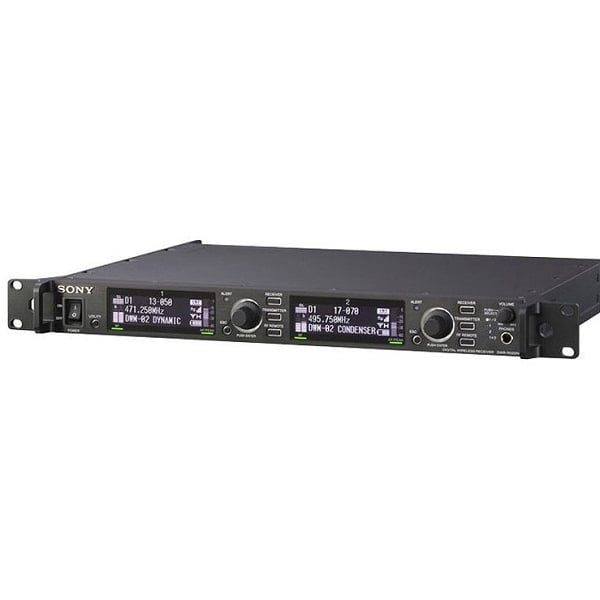

Sony DWR-R02DN/W DWX Series Digital Wireless Receiver

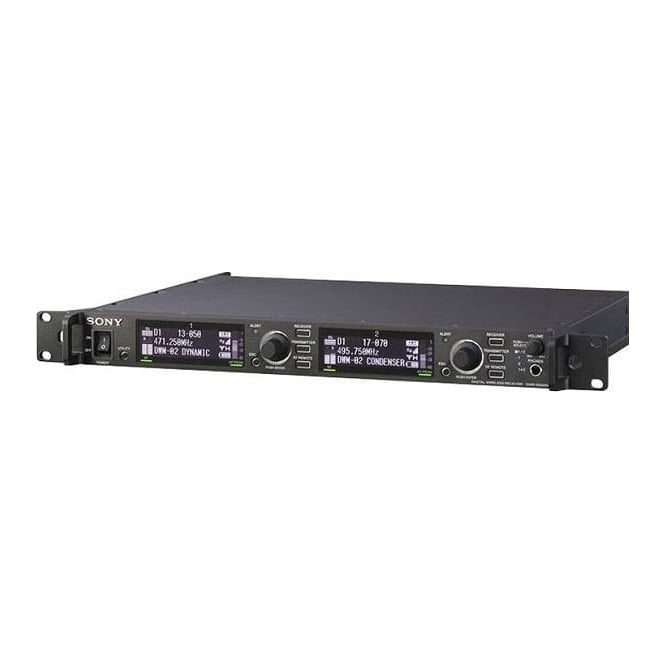

Sony DWR-R02DN/W (DWR-R02DN-W, DWR_R02DN_W, DWRR02DNW, DWR R02DN W, dwr-r02dn/w) DWX Series Digital Wireless Receiver

The DWR-R02DN is a 2-channel receiver for 19 "rack installation (1 U). It is part of the DWX-N series of digital wireless microphone systems that offer high-quality, fully digital operation, shorter audio latency and a reliable mode RF transmission - ideal for a variety of demanding applications, whether in the broadcast studio, in the theater or live.

The high-quality, all-digital broadband radio receiver with three new codec modes that delivers first-class audio latency and RF transmission. 19 "1U TV channel 21-50 (470-710MHz), with analogue XLR and 3x digital AES / EBU, 12 DC in, remote software.

The DWX-N series system consists of the pocket radio transmitter DWT-B01N, the microphone DWM-02N and the receiver DWR-R02DN, which offer high-quality radio transmission of digital audio with 24 bits thanks to the improved codec and the new hardware it delivers higher sound quality with lower audio latency.

The DWX-N series is compatible with the Sony control software Wireless Studio 4.2 or higher for PCs and with Wireless Studio Mobile for smartphones * in order to make system operation as flexible as possible for users. If the Cross Remote function is combined with the RMU-01 remote control, up to 82 transmitters can be remote-controlled.

• Wireless Inter: faceWiDIF-HP
• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: True diversity
• Circuit system: Double Superheterodyne
• Antenna Type: Detachable
• Antenna Input Connector: BNC-R, 50 Ω (x2)
• Antenna Cascaded Output: BNC-R, 50 Ω (x2)

Carrier Frequencies - UC7:

• 470.125 MHz to 541.875 MHz (TV-14 to TV-25 channels), 25 kHz steps
• 566.125 MHz to 637.875 MHz (TV-30 to TV-41 channels, except TV-37channel), 25 kHz steps
• 638.125 MHz to 697.875 MHz (TV-42 to TV-51 channels), 25 kHz steps

Carrier Frequencies - CEZ:

• 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps
• 566.025 MHz to 630.000 MHz (TV-33 to TV-40 channels), 25 kHz steps
• 638.025 MHz to 710.000 MHz (TV-42 to TV-50 channels), 25 kHz steps

Carrier Frequencies - J:

• WL: 470.150 MHz to 542.000 MHz (TV-13 to TV-24 channels), 25 kHz steps
• WM: 566.025 MHz to 638.000 MHz (TV-29 to TV-40 channels), 25 kHz steps
• WH: 638.025 MHz to 713.850 MHz (TV-41 to TV-52 and 53 channels), 25 kHz steps
• G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps

• Frequency Response: 20Hz to 22kHz (typical)
• Dynamic Range: 106 dB or more typical (A-weighted, T.H.D=1%)
• Distortion (T.H.D): MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less

Audio Delay:

• MODE1; 1.9 msec（total: 3.4msec）（Analog output）, 1.9 msec（total: 3.4msec）（Digital output)
• MODE2: 0.5 msec（total: 1.5msec）（Analog output）, 1.5 msec（total: 2.5msec) (Digital output)
• MODE3: 1.9 msec（total: 4.0msec）（Analog output）, 2.8 msec（total: 4.9msec）（Digital output）

Analog Output:

• BAL: XLR-3-32 (male), 47 Ω or less (×2), Output level (0 dBu = 0.775 Vrms)
• BAL: –22 dBu maximum/–58 dBu reference (when MIC output)
• BAL: +24 dBu maximum/–12 dBu reference (when LINE output)

• Digital Output: XLR-3-32 (male), 110 Ω (×2) / BNC-R, 75 Ω (×2), Reference output level: –36 dBFs
• Headphone Output: φ6.3 mm (1/4 inch) stereo jack

WORD SYNC IN/OUT connectors:

• Input connector: BNC-R with a 75 Ω termination switch
• Output connector: BNC-R, External Word Sync: 32 kHz to 96 kHz

• Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
• LAN Connector: RJ-45 modular jack 100BASE-TX: IEEE802.3u compliant
• Display: OLED
• Power Requirements: AC: 100 to 240 V 0.4 A or less / DC: 12 V 1.6 A or less
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: 482 x 44 x 335 mm (W x H x D)
• Mass: Approx. 3.6 kg (including the attached antenna)

In the box

• Sony DWR-R02DN Rackmountable Dual-Channel Digital Wireless Receiver
• 2 x Whip antenna
• 1 x AC power cord
• 4 x Foot
• 1 x Operating Instructions (CD-ROM)
• 1 x PC control software (CD-ROM)
