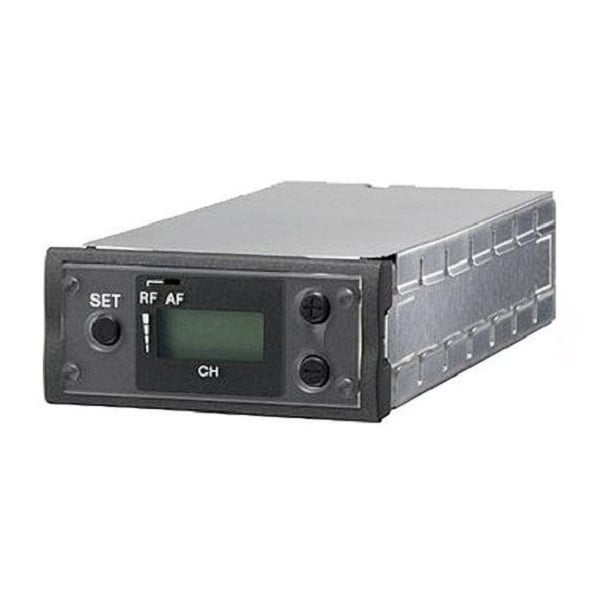

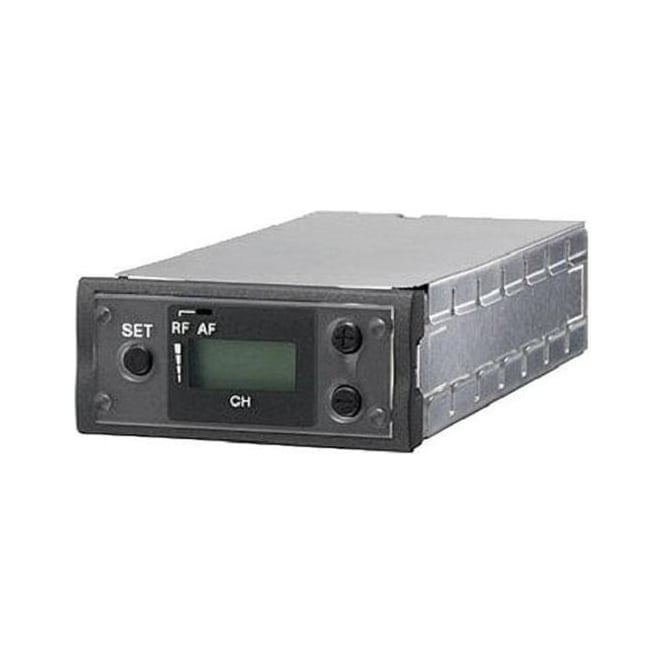

Sony URX-M2/K33 UWP Series Plug-in Tuner Module

Sony URX-M2/K33 (URX/M2/K33, URX-M2-K33, URX_M2_K33, URXM2K33, URX M2 K33, urx-m2_k33) UWP Series Plug-in Tuner Module

The Sony URX-M2 Tuner Module is a wireless microphone UHF receiver, specifically designed to install into Sony tuner bases. Among some of the compatible tuner bases are the MB-X6 and MB806A, and SRP-X700P, SRP-X500P, SRP-X351P powered mixer units.

Modular Design

• The URX-M2 is specifically designed for direct integration with the MB806A multiple tuner base (accommodates up to 6), SRP-X700P and SRP-X351P mixer/amplifier units.

Frequency Agile

• PLL synthesized UHF technology provides up to 188 user selectable frequencies.

Comprehensive LCD

• The LCD display provides channel and frequency information and more.

• Type of Receiver: Modular Tuner for MB806A Tuner Base
• RF Carrier Frequency Range: 30/32 (566 to 590 MHz)
• Approx. Working Range :400'
• Overall Frequency Response: 100 - 15kHz
• Signal-to-Noise Ratio: +60 dB (A weighted)
• Of Channels: 188
• Type of Outputs: MB806A Tuner - 6 Individual Balanced XLR Outputs and 1 Balanced XLR 'Mix' Output (switchable mic/line)
• Headphone Monitoring: No
• Power Requirements: AC 120v
• Battery Type/Approx. Life: Not Applicable, Unit Does NOT Operate on Batteries
• Display: LCD Display Found on Each Optional WRU806A Wireless Receiver Modules
• Mounting Options: MB806A Tuner - Rack/Table Top Mount
• Antenna Type: Passive Antennas with BNC-R Type Connectors
• Dimensions (WxHxD): 2.23 x 1.0 x 4.76" (56.6 x 25.5 x 121mm)
• Weight: 5.3 oz (150g)

In the box

• Sony URX-M2/K33 Tuner Module for Base
