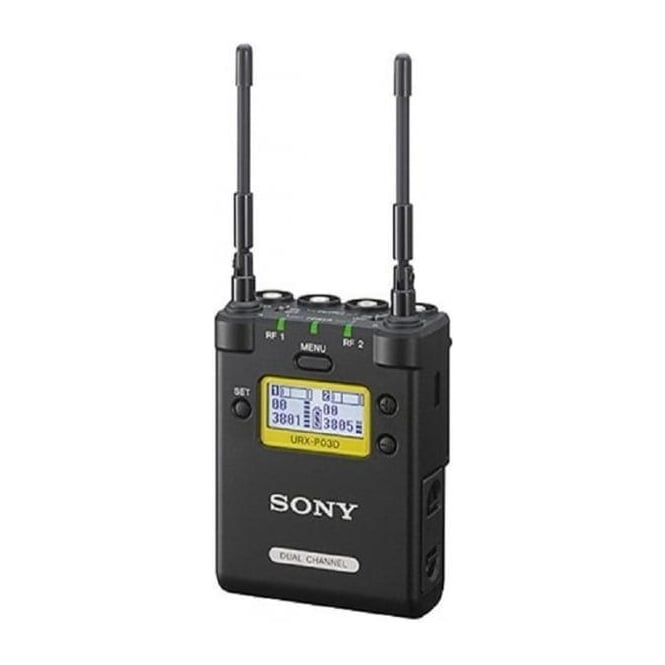

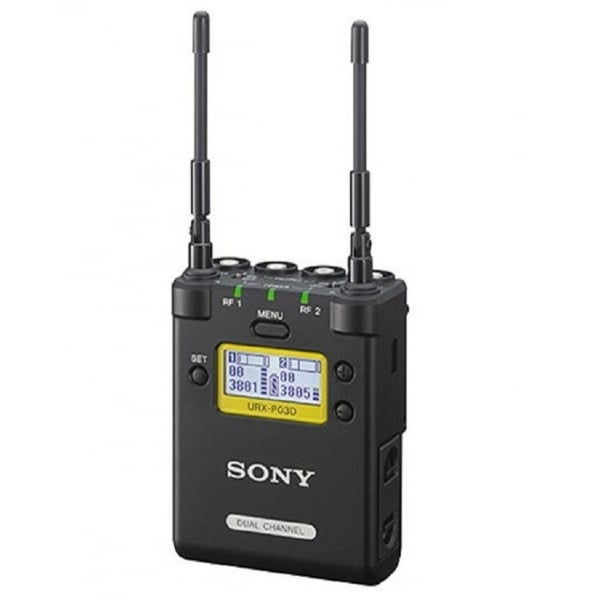

Sony URX-P03D/K21 Two-Channel Portable Receiver for UWP-D Systems

Sony URX-P03D/K21 (URX-P03D-K21, URX/P03D/K21, URX_P03D_K21, URXP03DK21, urx-p03d/k21) Two-Channel Portable Receiver for UWP-D Systems

2 channel portable receiver for high quality sound for ENG/EFP productions

The URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The URX-P03D offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The receiver also has external mic input for an additional wired microphone and 3 channel mixer function. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

2 channel portable receiver

Digital Audio Processing for high quality sound

Improves transient response performance between the UWP-D transmitter and receiver, which will provide impressive natural sound quality compared to conventional analogue wireless systems.

External mic input for additional wired microphone

This portable receiver has an external mic input connector for additional wired microphone. It also has a 3 channel mixer function for the two wireless microphones and one wired microphone.

Wide frequency coverage with choice of channels available

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.

14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)

25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)

42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in US or Canada)

Large display and small size receiver

The receiver features a large display for ease of use, while its small size means it fits neatly on any size camcorder or DSLR camera.

Easy to use features

Automatic channel setting function*, headphone output, USB connection for power supply and line input availability.

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Reception Type: Space diversity*
• Antenna Type: 1/4 wave length wire

Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New ZealandC:

• E21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand)

• Frequency Response: 23Hz to 18kHz (typical)
• Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
• Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
• Audio Delay: Approx. 0.375 msec
• Analog Input: 3-pole mini jack, unbalanced
• Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
• Analog Output: 3-pole mini jack, unbalanced
• Analog Output Level: -60dBV (at ±5kHz deviation)
• Analog Output Adjust Range: -12dB - +12dB (3dB step)
• Headphone Output: φ3.5 mm ( 5/32 inch) stereo mini jack
• Headphone Output Level: 5 mW (at 16-ohm load)
• Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
• Display: LCD

Power Requirements:

• DC 3.0 V (with two AA-size alkaline (LR6) batteries)
• DC 5.0V (via USB micro-B)

• Battery Operating Time: Approx. five hours with Sony's AA-size alkaline (LR6) batteries at 25ºC (77ºF)

Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Storage/Transport Temperature:

• -20°C to +55°C
• -4°F to +131°F

• Dimensions: 63 x 82 x 28.4 mm (excluding the anntenas) (W x H x D)
• Mass: Approx. 210 g (including batteries)

In the box

• Sony URX-P03D/K21 Two-Channel Portable Receiver for UWP-D Systems
