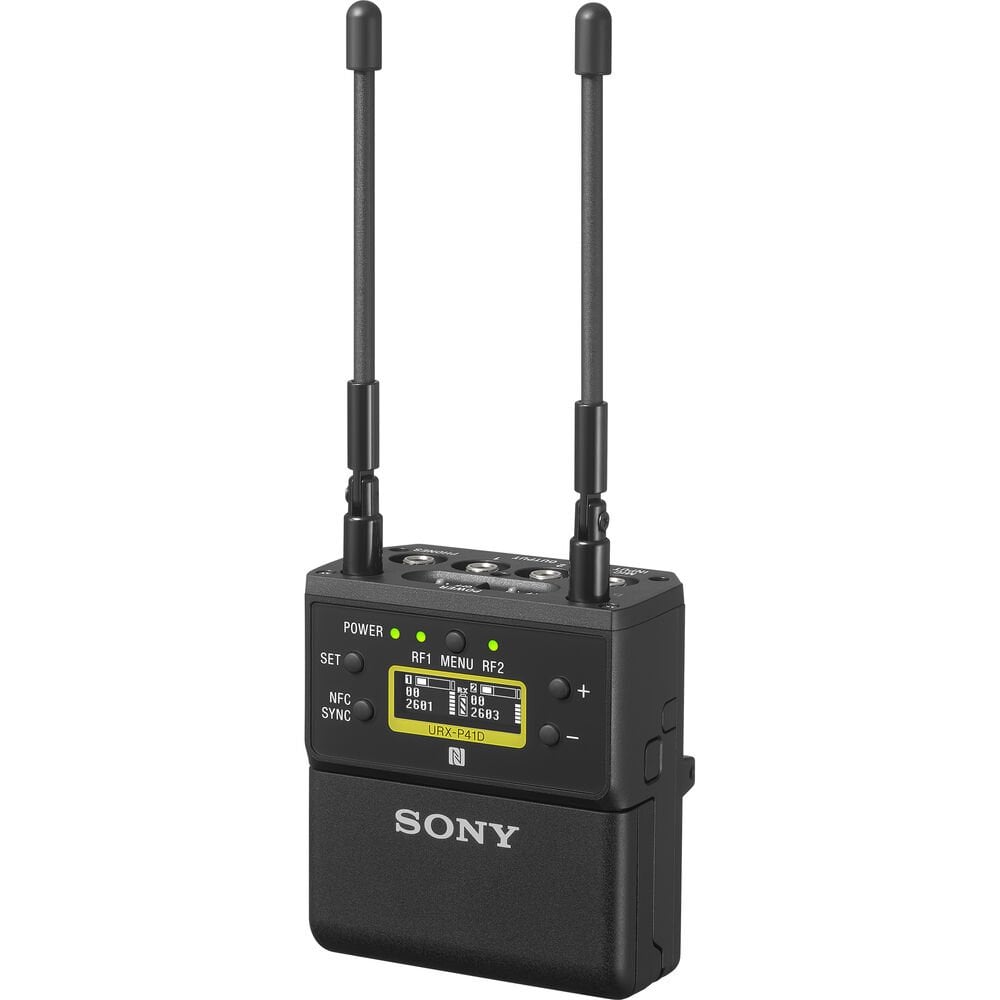

Sony URX-P41D/K42 Dual Channel Portable Receiver TV-channel 42-48, 638,025-694,000 MHz

Sony URX-P41D/K42 Dual Channel Portable Receiver, TV-channel 42-48, 638,025-694,000 MHz

Light, compact and brilliantly easy to use, the URX-P41D 2-channel portable wireless receiver combines digital audio processing for sparkling sound quality with the reliability of analogue FM modulation and true diversity reception. Automatic pairing with UWP-D Series wireless transmitters saves times for busy videographers, documentary makers and self-shooters. For extra versatility there’s an additional mic input and 3-channel mixer, making the URX-P41D an ideal sound acquisition partner for on-camera interviews. It’s also a great match for Sony cameras and handheld camcorders, with seamless integration via an optional Multi Interface Shoe Adaptor.

Carrier Frequencies14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)

25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)

42LA: 638.125 MHz to 697.875 MHz(UHF-TV channels 42-51)

90U: 941.625 MHz to 951.875 MHz, 953.000MHz to 956.125 MHz, and 956.625MHz to 959.625 MHz

21CE: 470.025 MHz to 542.000 MHz(UHF-TV channels 21-29)

33CE: 566.025 MHz to 630.000 MHz(UHF-TV channels 33-40)

42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48)

29CN: 638.025 MHz to 694.000 MHz(UHF-TV channels 29-35)

BJ: 806.125 MHz to 809.750 MHz

KR: 925.125 MHz to 937.375 MHz

Frequency Response23 Hz to 18 kHz (typical) (UC, U, CE7, LA, CN, E, KR models)

40 Hz to 15 kHz (typical) (J model)

Distortion (T.H.D)0.9% or less (1 kHz sine wave, 5kHz modulation)

Signal-to-Noise Ratio60 dB (1 kHz sine wave, 5 kHz modulation)

96 dB (max deviation, A-weighted)

Audio DelayApprox. 0.35 ms (analog output)

Approx. 0.24 ms (digital output)

Analog Input3.5-mm diameter 3-pole locking mini jack (unbalanced)

Analog Input Level-50dBV (±12dB Adjustable, 3-dB step)

Audio Output level–60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output)

–20 dBFS (external connection, digital output)

–50 dBV (external connection, analog output)

Audio Output Adjust Range-12dB to +12dB (3dB step)

Audio Output connector3.5mm diameter 3-pole locking mini jack (balanced),

External connection

Headphone Output Connector3.5mm diameter mini jack

Headphone Output LevelMax. 10 mW (16-ohm)

Tone signal frequencyIn UWP-D compander mode: 32.382 kHz

In UWP compander mode: 32 kHz

In WL800 compander mode: 32.768 kHz

DisplayOLED

Power RequirementsDC 3.0 V (with two AA-size alkaline (LR6) batteries)

DC 5.0 V (supplied from USB Type-C connector)

Battery LifeApprox. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF

Operating Temperature0 °C to 50 °C (32 °F to 122 °F)

Storage/ Transport Temperature-20ºC to +55ºC (-4ºF to +131ºF)

Dimensions63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna)

MassApprox. 159 g (5.6 oz) (excluding batteries)

In the box;

1 x Sony URX-P41D Dual Channel Portable Receiver (42CE: 638 - 694 MHz)
