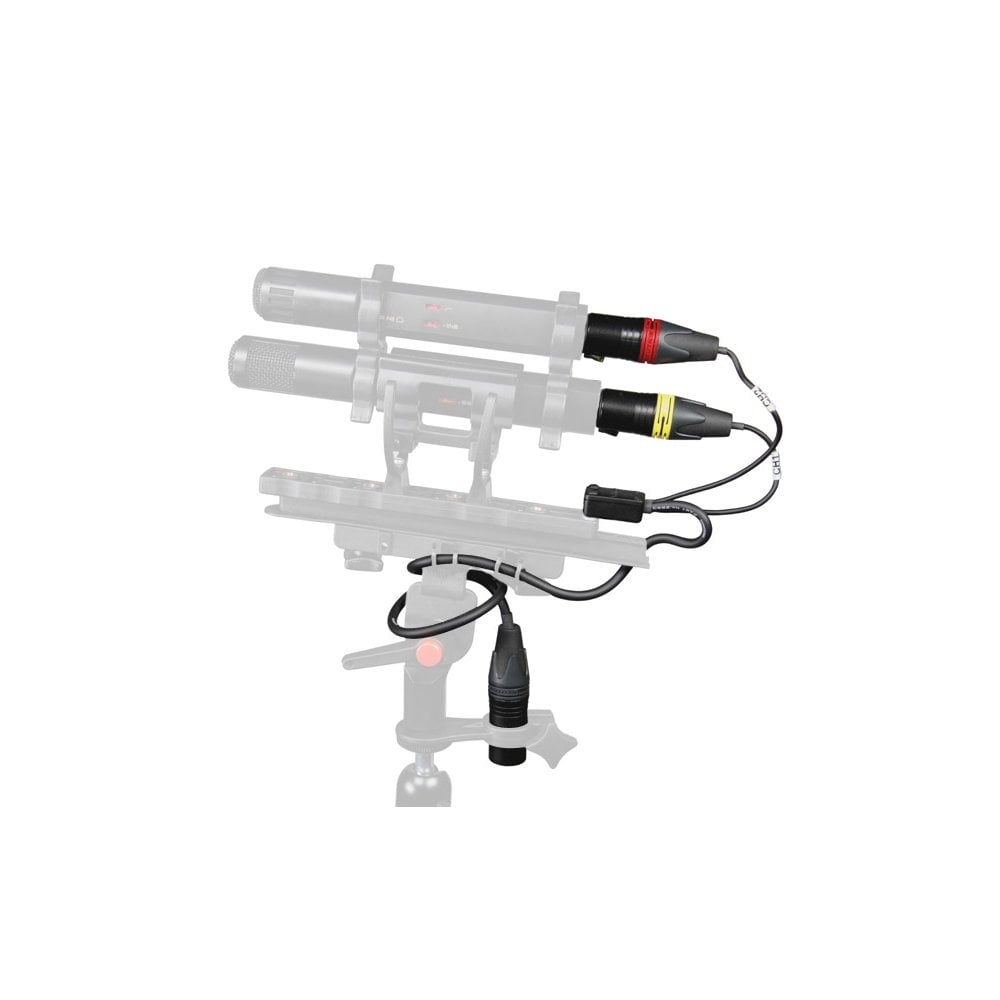

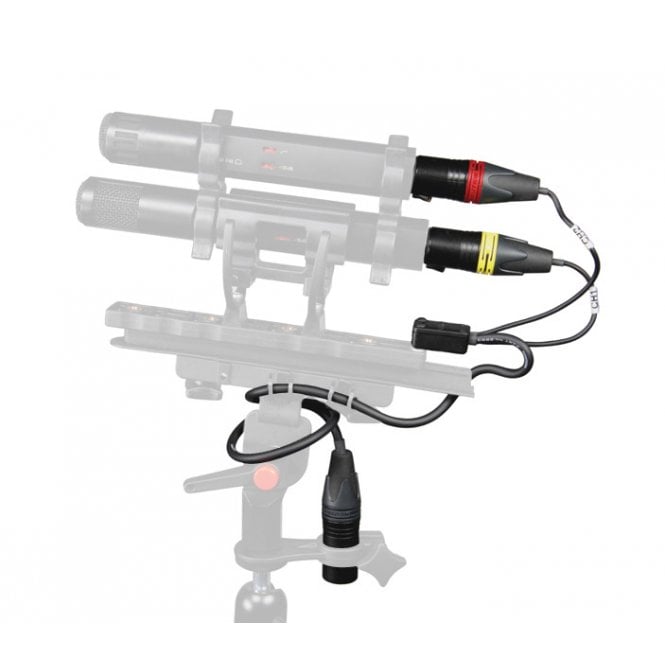

Rycote 016924 Connbox CB3 (2XLR-3F)

Rycote Connbox CB3 2XLR-3F – M/S Stereo Mic Cable for Windshield Systems

016924 Connbox CB3 (2XLR-3F) (cb-3, cb/3, 2xlr3f, 2xlr/3f)

An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using Gold 3-pin Neutrik X-series XLR connectors, and an ultra soft Mogami star-quad cable.

What it does:

• Connects 2 microphones → 1 XLR output (M/S stereo)
• Reduces handling & cable noise
• Designed for Rycote windshield systems
• Acts as a shock-isolated cable junction

INPUT

Input connector: 2 x XLR -3F

Input Connbox Connector: Hardwired

Input Cable outside diameter: 2.5mm

Input Cable Exposed Length: ch1 100mm, ch2 120mm

Input Cable Band Colour: Plain

OUTPUT

Output Connector: XLR – 5M

Output Connbox Connector: Hardwired

Output Cable Outside Diameter: 4.8mm

Output Cable Exposed Length: 400mm

Outout Cable Band Colour: Plain

Net Weight: 90g

Includes:

1 x Connbox CB3 (2XLR-3F)
