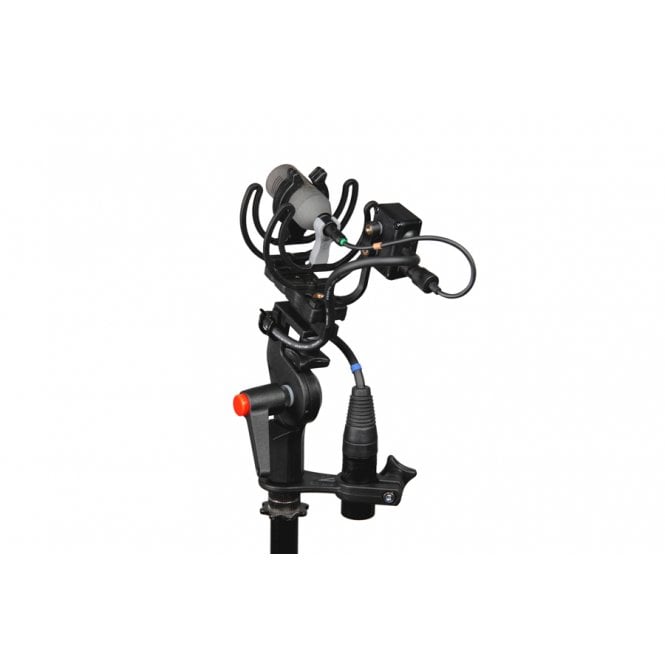

Rycote 016905 Connbox CB5 (LEMO Detachable)

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox 5 is suitable for single Schoeps CCM in a WS 9 Kit with Lemo connector. The Lemo tail is detachable from the Connbox.

An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using Gold 3-pin Neutrik X-series XLR connectors, and an ultra soft Mogami star-quad cable.

INPUT

Input connector: Lemo

Input Connbox Connector: TA-3M Binder

Input Cable outside diameter: 2.5mm

Input Cable Exposed Length: 110mm

Input Cable Band Colour: Brown

OUTPUT

Output Connector: XLR – 3M

Output Connbox Connector: Hardwired

Output Cable Outside Diameter: 4.8mm

Output Cable Exposed Length: 250mm

Input Cable Band Colour: Blue

Included:

1 x Connbox CB5 (LEMO Detachable)
