Rycote 016907 Connbox CB7 (2LEMO Long Detachable)

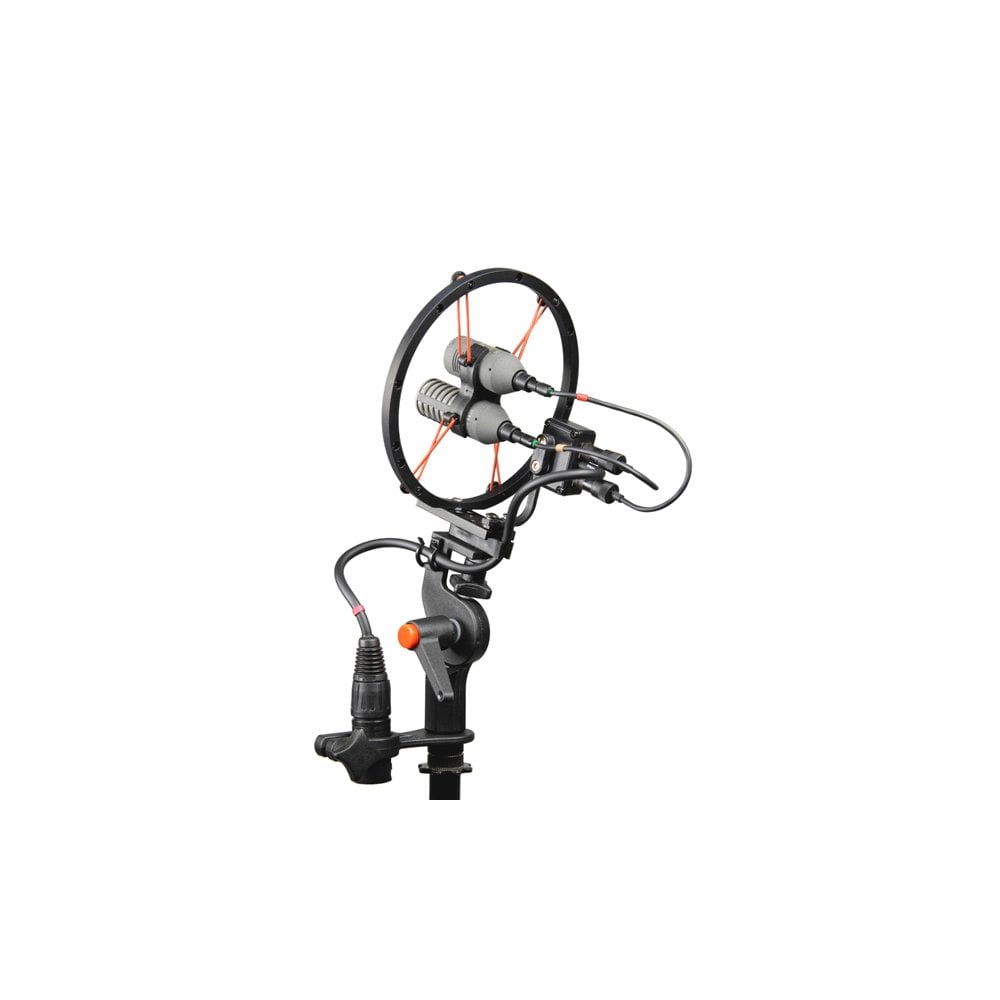

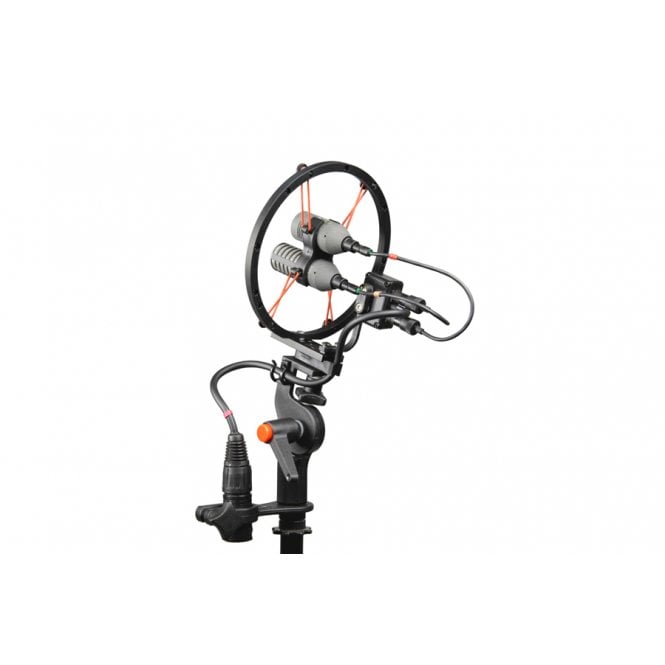

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox 7 is suitable for a M/S stereo pair of Schoeps CCM in a AC MS Stereo Windshield Kit with Lemo connectors. The Lemo tails are detachable from the Connbox 7 and longer than those on the Connbox 6.

An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using a Gold 5-pin Neutrik X-series XLR connector, and an ultra soft Mogami star-quad cable.

INPUT

Input connector: 2 x Lemo

Input Connbox Connector: 2 x TA-3M Binder

Input Cable outside diameter: 2.5mm

Input Cable Exposed Length: ch1 110mm, ch2 130mm

Input Cable Band Colour: ch1 Brown, ch2 Red

OUTPUT

Output Connector: XLR – 5M

Output Connbox Connector: Hardwired

Output Cable Outside Diameter: 4.8mm

Output Cable Exposed Length: 260mm

Input Cable Band Colour: Red

Included:

1 x Connbox CB7 (2LEMO Long Detachable)
