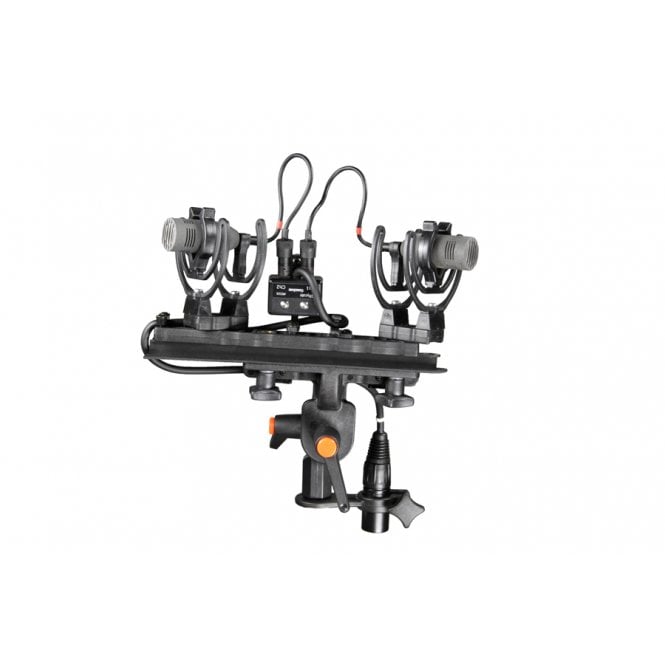

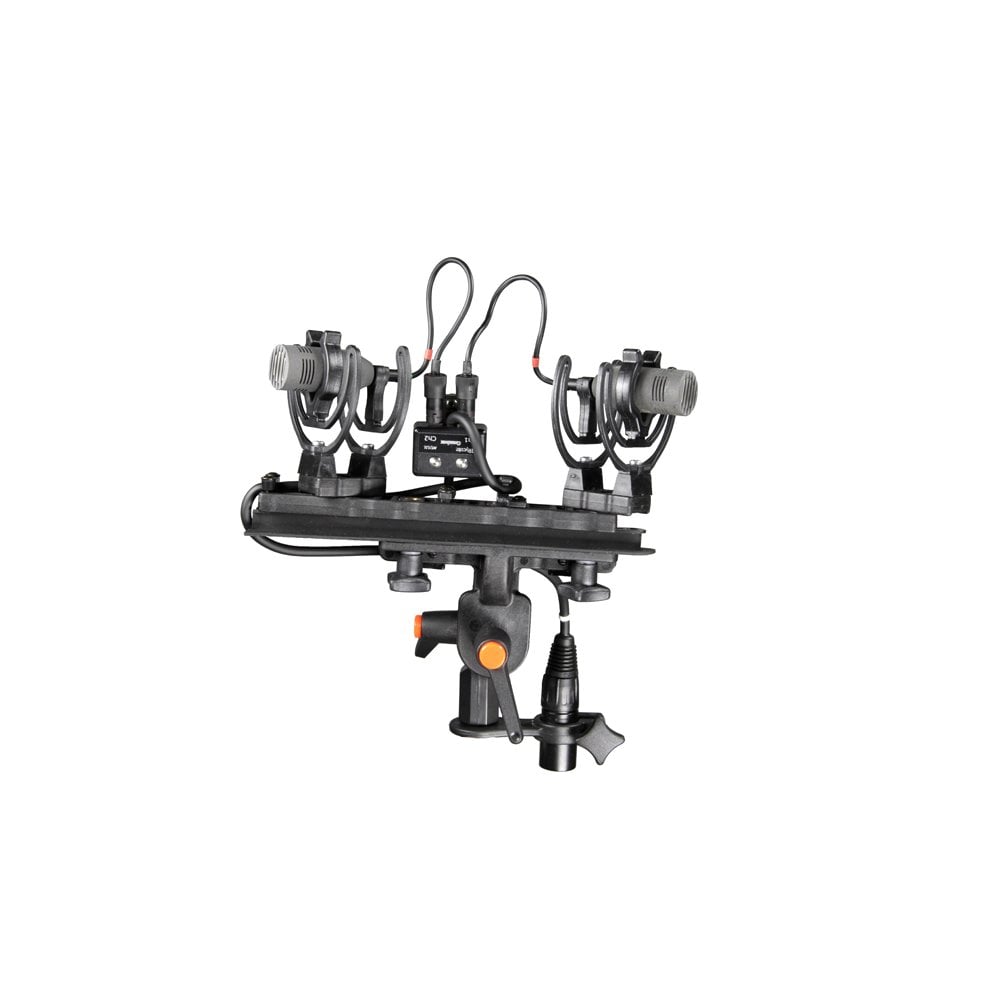

Rycote 016927 Connbox CB12 (2 LEMO Detachable)

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox 12 is suitable for an ORTF stereo pair of Schoeps CCM in an ORTF Windshield kit (AE).

An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using a Gold 5-pin Neutrik X-series XLR connector, and an ultra soft Mogami star-quad cable.

Connbox 12 is suitable for an ORTF stereo pair of Schoeps CCM in an ORTF Windshield kit (AE).

INPUT

Input connector: 2 x Lemo

Input Connbox Connector: 2 x TA-3M Binder

Input Cable outside diameter: 2.5mm

Input Cable Exposed Length: ch1 130mm, ch2 130mm

Input Cable Band Colour: ch1 Red, ch2 Red

OUTPUT

Output Connector: XLR – 5M

Output Connbox Connector: Hardwired

Output Cable Outside Diameter: 4.8mm

Output Cable Exposed Length: 260mm

Input Cable Band Colour: Red

Included:

1 x Connbox CB12 (2 LEMO Detachable)
