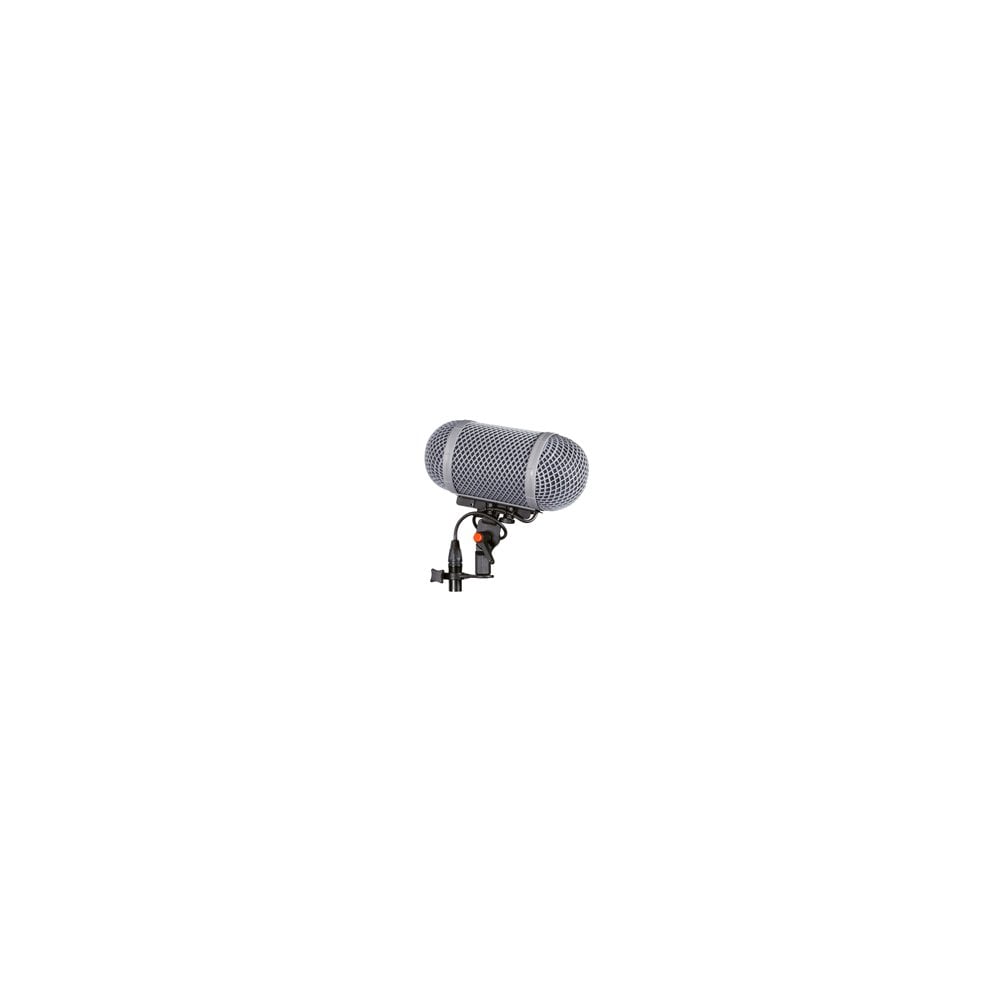

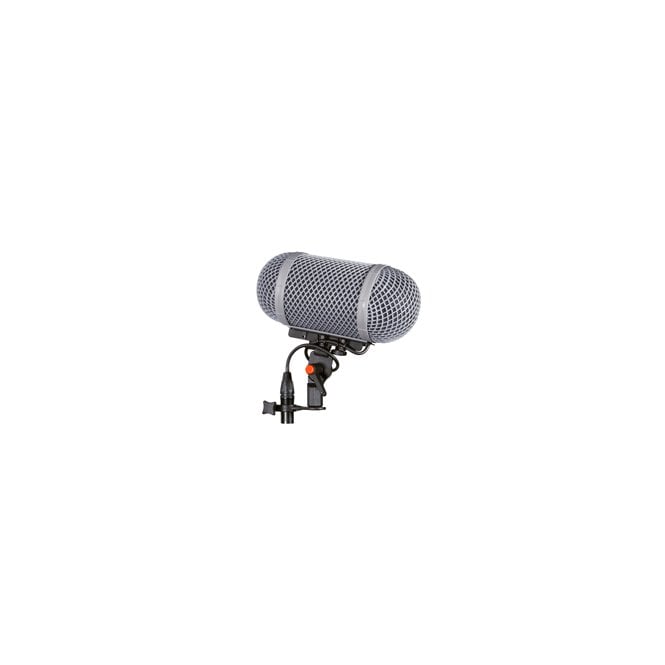

Rycote 010610 Windshield WS 10

010610 Windshield WS 10 (WS10, WS-10, ws10, WS/10, W-S-10)

The Modular Windshield is designed to work with the Modular Suspension, and forms an integral part of the Modular Windshield Kit.

The Windshield is a lightweight, durable basket made from flexible grey plastic netting with a screening material attached. The windshield slides on to the Modular Suspension surrounding the whole microphone, connector and suspension. This system creates a still volume of air around the microphone, which provides excellent wind-noise reduction of up to 30dB, including minimal High-Frequency loss.

A Modular Windshield is comprised of: A Windshield body, two end caps, and in some cases extension pieces. The twist and turn locking end caps provide easy, secure and rattle-free on both ends of the windshield. Both end caps can now be removed, facilitating easier placement of the microphone inside the basket.

The modular nature allows the fitting of extension pieces which extends the length of the windshield so that several microphones can be used by one kit. For example, a Windshield 5 is comprised of a Windshield 4 Body, an Extension 1 and two end caps, if necessary it can be used as a Windshield 4, by removing the extension piece.

To achieve maximum protection of up to 50dB, a Windjammer (fur cover) can be used over the Windshield.

Windshields are available in two types, this page refers to 'Mono' windshields which are designed to hold one microphone, and have a diameter of 100mm. 'Stereo' windshields have a larger diameter of 140mm, which fit stereo suspensions designed to hold two microphones.

Suitable for microphones up to 70mm in length.

Windshield Height: 100mm

Windshield Body Length: 120mm

Total Windshield Length (inc end caps): 230mm

Maximum wind-noise attenuation: 30dB

Included:

1 x Windshield WS 10
