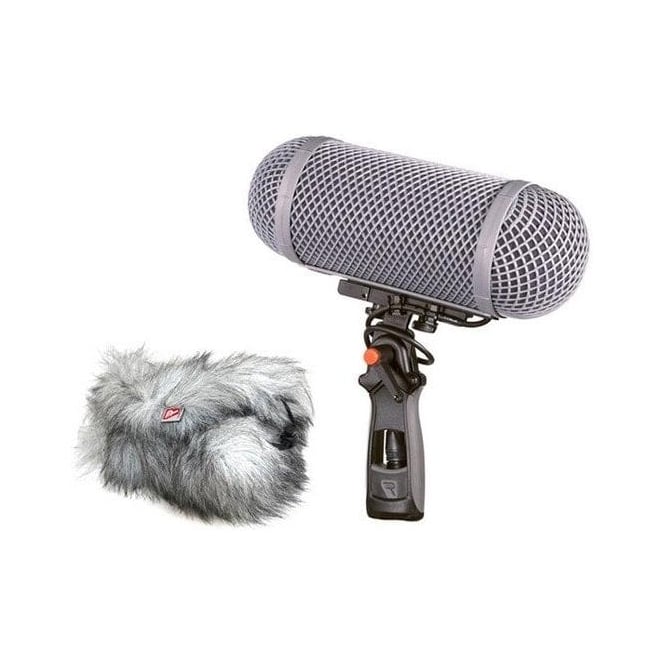

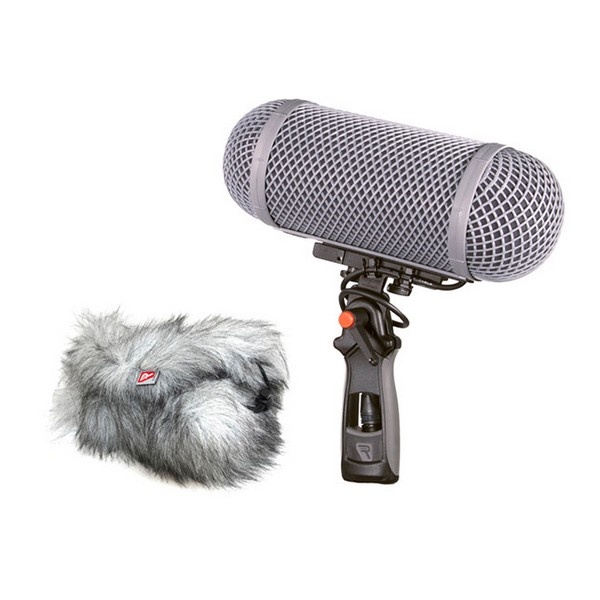

Rycote 086004 Modular Windshield WS 1 Kit

Rycote 086004 Modular Windshield WS 1 Kit

The Modular Windshield WS 1 Kit is suitable for small diaphragm condenser microphones up to 120mm in length with a 19-25mm diameter and a 3-pin XLR connector.

Main Benefits:

Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations

The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology

The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.

This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

Modular Suspension

 Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield

 The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

 Windjammer

 The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.

Includes:

• 1 x 040140 Suspension Small (XLR-3F)
• 1 x 010601 Windshield WS 1
• 1 x 021501 Windjammer WJ 1
• 1 x 016901 Connbox CB1 (XLR-3F)
• 1 x 048493 XLR Holder MK II
• 1 x 048401 Pistol Grip Handle with Lever
• 1 x 048402 Boom Poles Adaptor
• 2x Single Lyre 62 (19/25)
• Brush
• Hex head key

 Compatible with:

• Neumann KM 180 Series
• Neumann KM 184
• Neumann KM 185
• Neumann KM100F
• Neumann KM 180
• Audix SCX1C
• DPA DPA 2011c

Windshield Body Length: 170 mm

Total Windshield Length: 280 mm (includes the End Caps)

Height of Windshield: 100mm

Windjammer Fur Length: 40mm

Windjammer Fur Colour: Grey

Microphone Connector: XLR-3F

Max Wind-noise Attenuation: 50 dB

Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.

Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.

For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
