Rycote 086039 Modular Windshield WS 9 Kit LEMO

code: 86039
Availability | Usually dispatched within 24 hours

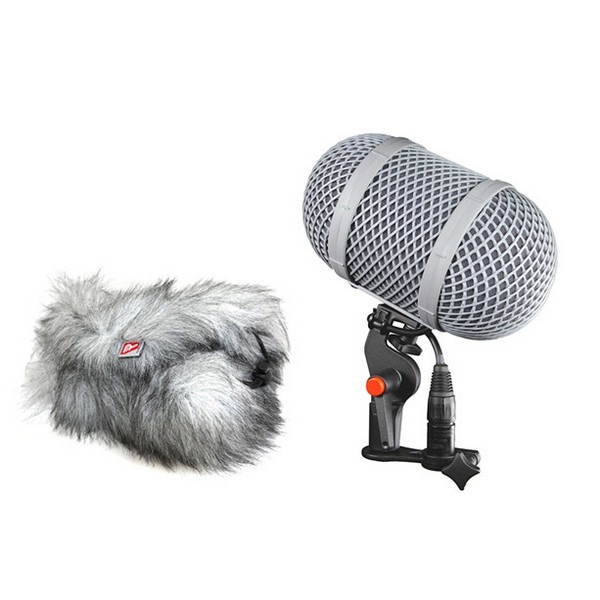

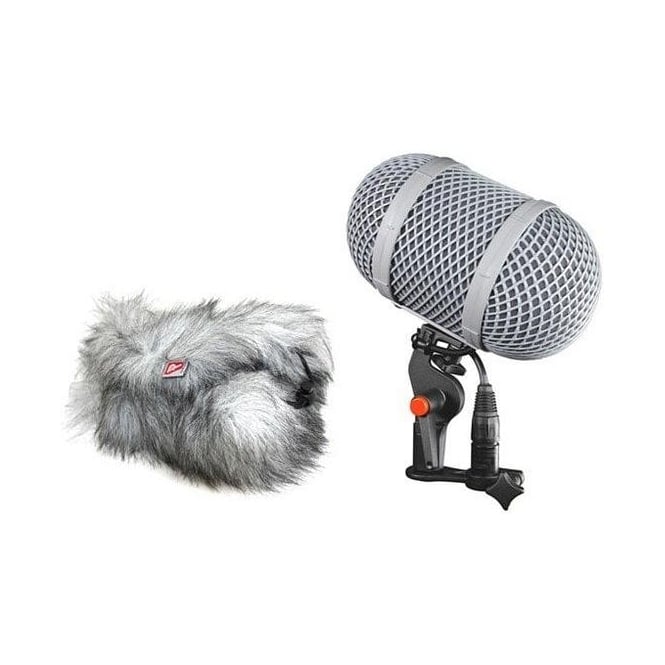

Rycote 086039 Modular Windshield WS 9 Kit (LEMO)

The Modular Windshield WS 9 Kit offers a unique and highly effective solution for compact condenser microphones requiring wind protection and maximum shock isolation. It completely surrounds the compact microphone, sliding onto the XX-Small Suspension to provide up to 25dB of wind noise attenuation. The wind attenuation performance is equivalent to a Rycote full sized Windshield yet in a much smaller and lighter package – only 170mm x 105mm including end caps.
High quality synthetic fur-cover Windjammer for WS 9 provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield up to 35 dB of windnoise attenuation can be achieved, producing excellent exterior audio recordings.

  • 1 x 040114 Suspension XX-Small (Lemo)
  • 1 x 010605 Windshield WS 9
  • 1 x 021509 Windjammer WJ 9
  • 1 x 016918 Connbox CB10 (LEMO)
  • 1 x 048493 XLR Holder MK II
  • 1 x 048402 Boom Poles Adaptor
  • 1 x 048401 Pistol Grip Handle with Lever
  • 1x Single Lyre 62 (19/25), 1 x Single Lyre 62(8)
  • Brush
  • Hex head key
  • Schoeps CCM Series (Lemo)
  • Schoeps CCM 41

Windshield Body Length: 70mm

Total Windshield Length: 170 mm (includes the End Caps)

Height: Windshield 100mm

Net Weight:

Gross Weight:

Windjammer Fur Length: 40mm

Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.

Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.


For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.

Windjammer Fur Colour: Grey

Microphone Connector: LEMO

Max Wind-noise Attenuation: 35 dB
