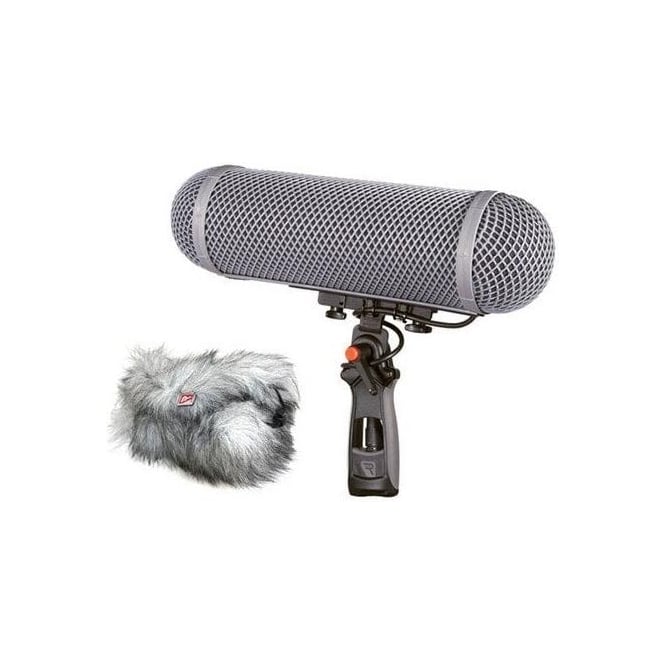

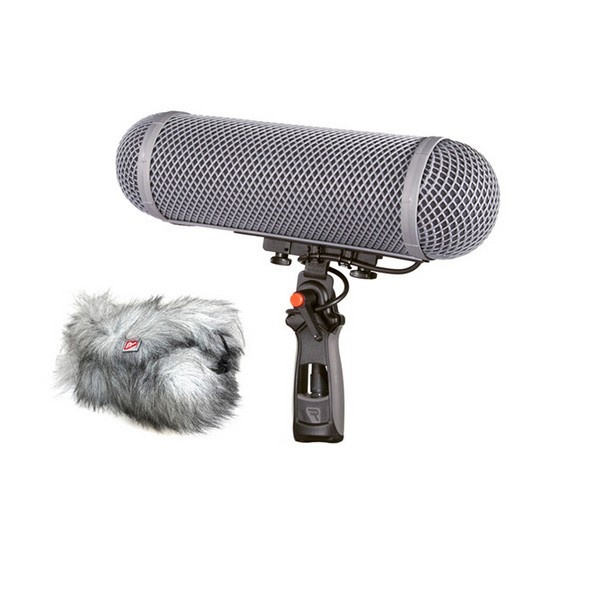

Rycote 086069 Modular Windshield WS 3 Kit XLR-5F

Rycote 086069 Modular Windshield WS 3 Kit (XLR-5F)

Modular Windshield 3 Kit is suitable for stereo microphones from 161mm up to 210mm in length and 19-34mm diameter with a 5 Pin XLR connector

Main Benefits:

Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations

The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology

The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.

This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations. A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

Modular Suspension

Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield

The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

Windjammer

The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.

Includes:

1 x 040145 Suspension Medium (XLR-5F) 68 Duo

1 x 010603 Windshield WS 3

1 x 021503 Windjammer WJ 3

1 x 016925 Connbox CB4 (XLR-5F)

1 x 048493 XLR Holder MK II

1 x 048401 Pistol Grip Handle with Lever

1 x 048402 Boom Poles Adaptor

2x Duo-Lyre 68 (19/34)

Brush

Hex head key

Compatible with:

• Audio-Technica AT 8022 (BP 4025)
• Audio-Technica AT 822
• Audio-Technica AT 825
• BeyerDynamic MCE 72
• Edirol CS-50
• Pearl MS 2
• Pearl MS 8
• Pearl MSH 10
• Sennheiser MKE 44P

Windshield Body Length: 260 mm

Total Windshield Length: 370 mm (includes the End Caps)

Height of Windshield: 100mm

Windjammer Fur Length: 40mm

Windjammer Fur Colour: Grey

Microphone Connector: XLR-5F

Max Wind-noise Attenuation: 50 dB
