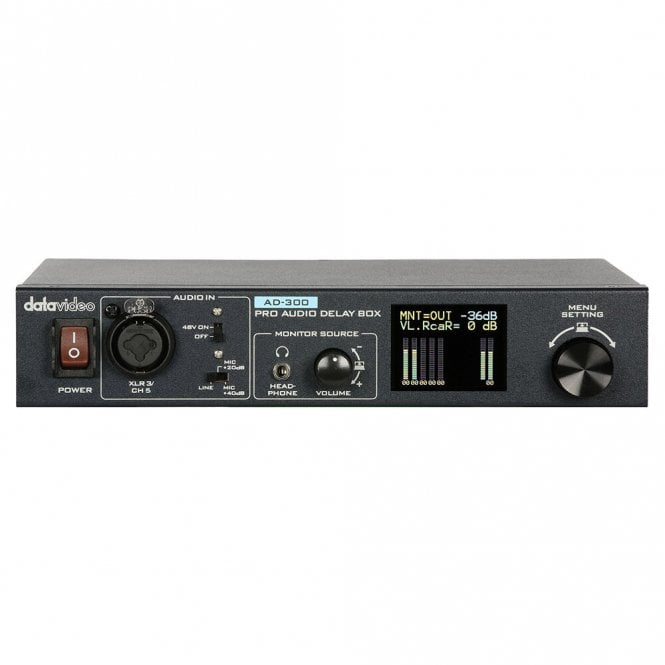

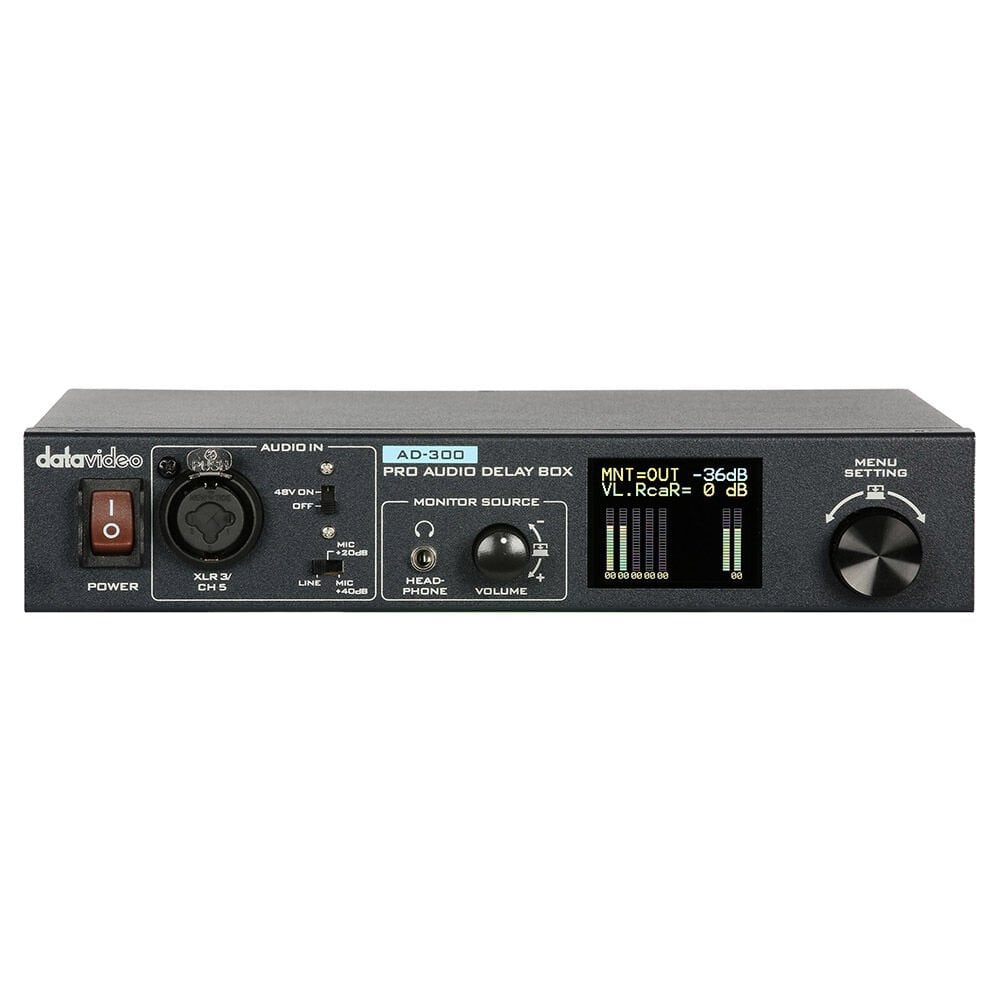

Datavideo AD-300 Audio Delay Box

Datavideo AD-300 Audio Delay Box(DATA-AD300)

Get multiple audio sources in sync with your video, using the AD-300 Pro Audio Delay Box from Datavideo. This multifunction sound box offers 5 x input channels: a pair of RCAs, a pair of XLR-1/4" combo inputs, and an additional XLR-1/4" input on the front panel. The combo inputs feature mic- and line-level switches along with phantom power switches to provide +48V phantom power for condenser microphones. The unit offers a built-in mixer to route the incoming signals to a pair of stereo outputs with both balanced XLR and RCA connections to choose from. The 3.5mm front-panel headphone jack provides quick monitoring.

Each channel on the AD-300 offers a digital delay adjustable from 0 to 3000 ms, allowing you to get professional synchronization from multiple sources. In addition, each channel offers a compressor, limiter, expander, and gate, allowing you to tame audio levels and reduce noise for more professional-sounding results. High-pass and low-pass filters along with an 8-band EQ on every input provide precise control over frequency content, giving you additional audio-sculpting Power.

Display 2" LCD Screen

Audio Input 3 x Combo XLR-1/4" Balanced Mic/Line Inputs

2 x RCA Line Inputs

Audio Output 2 X XLR Balanced Outputs

2 x RCA Outputs

3.5 mm Stereo Headphone Output

Display 2" / 5 cm LCD Screen

Audio Delay 0 to 3000 ms

Audio Sample Rate 48 kHz

Special Features Compressor

Limiter

Gate

Expander

Filter

EQ

Chassis Tabletop, Rack-Mountable with RMK-1 Rackmount Kit

Power 12 VDC, 13.8 W

Operating Temperature 32 to 104° / 0 to 40° C

Dimensions 8.1 x 9.3 x 1.8" / 205 x 235 x 45 mm

Weight 2.7 lb / 1.3 kg

Packaging Info

Package Weight 4.07 lb

Box Dimensions (LxWxH) 11 x 10.3 x 5.2"

In the Box

Datavideo AD-300 Pro Audio Delay Box

12 VDC Power Supply
