Datavideo PCB-1 Panasonic interface Control Box

Datavideo PCB-1 Panasonic interface Control Box(DATA-PCB1)

An optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic 2-ports remote cameras

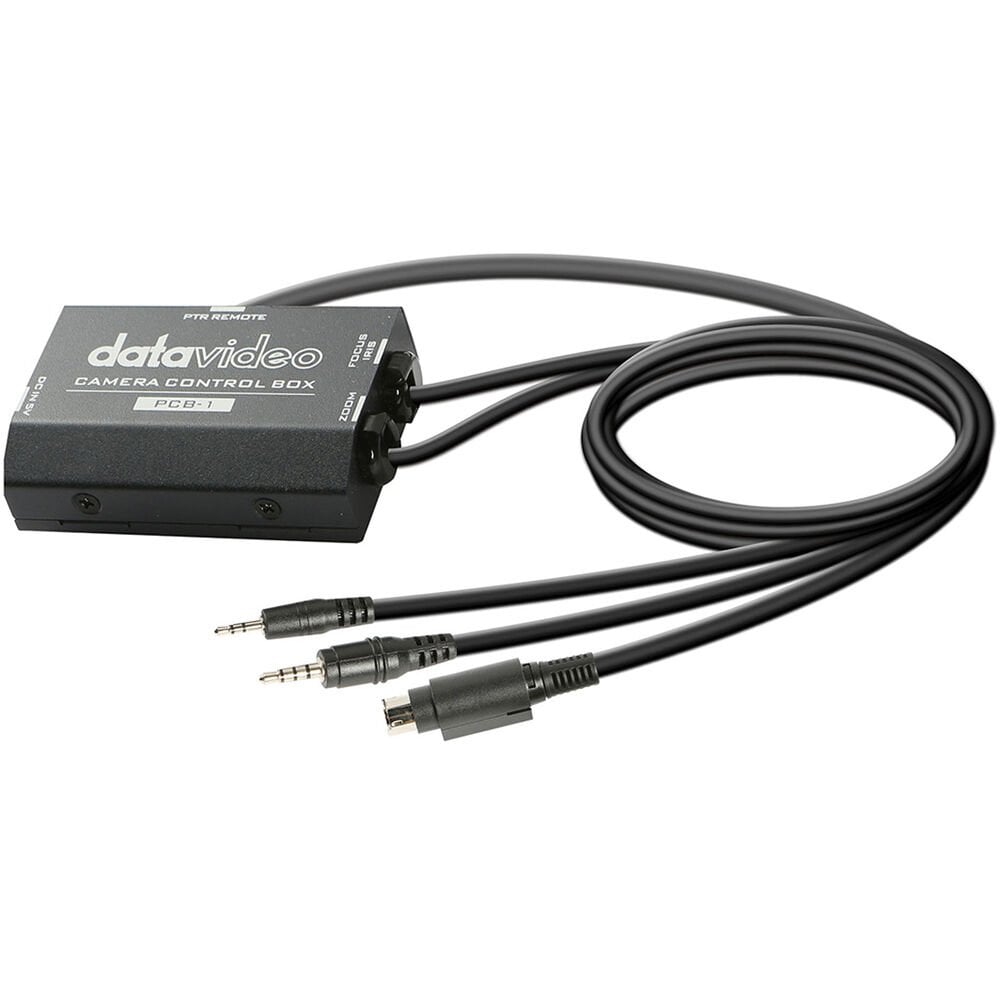

PCB-1 is a camera control box designed specifically for connecting between a PTR device and a Panasonic camcorder mounted thereon in order to allow zoom, focus and iris of the camcorder to be adjusted using the RMC-180 MARK II, the RMC-300A or an IR remote control connected behind the PTR device.

Designed for Datavideo PTR series.

As an optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic dual-hole remote cameras.

Controls Panasonic two port remote camcorders

Compatible with RMC-180 MARK II, RMC-300A and IR remote control, can control Zoom, Focus, IRIS of Panasonic camera.

Small size design

Low power consumption. PCB-1 can be powered from the PTR-10 MARK II series device.

Input Voltage DC 5V micro USB

Compatible Controllers RMC-180

RMC-300A

IR Remote Control

Interfaces One 8pin mini-din to the PTR device

One 2.5 mm Jack Plug to the Zoom jack on the

Panasonic camcorder

One 3.5 mm Jack Plug to the Focus/Iris jack on the

Panasonic camcorder

Operating Temperature 0 – 40°C

Operating Humidity 10 – 80% (non-condensing)

Storage Temperature -10 – 60°C

Storage Humidity 5 – 80% (non-condensing)

Weight 135g

Dimensions (mm) 85.9 x 45.7 x 20.3 (not inclusive of cables)
