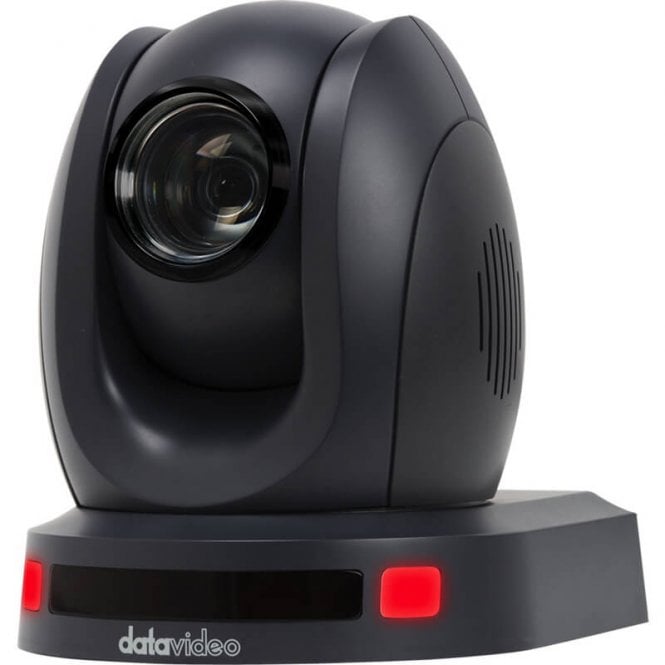

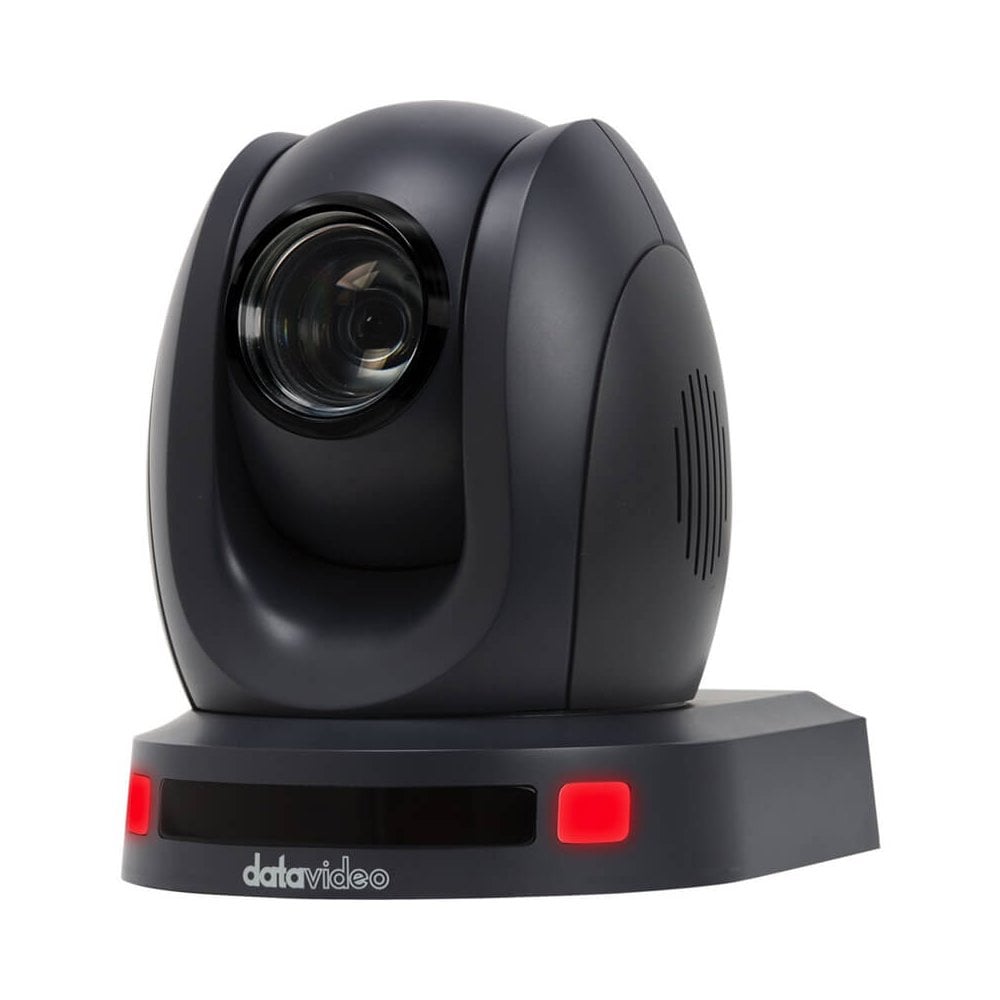

Datavideo PTC-145 Pan/Tilt Camera With Auto Tracking

Datavideo PTC-145 Pan/Tilt Camera With Auto Tracking(DATA-PTC-145)

Stunning Full HD resolution

The PTC-145 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

20x Optical Zoom, 10x Digital Zoom

The PTC-145's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 2D/3D noise reduction function

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Wide 54° Field of View

PTC-145 provides a wide Field of View of 54°, easily shooting all the scenes in the field.

H.264/H.265 video compression for streaming

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Simple multi-camera control at your fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-145 cameras for any live video production.

RMC-300A can control up to 24 PTC-145 cameras

Designed to control up to 24 PTC-140 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-145 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons.

Dark or Light Body

The PTC-145 is available in dark gray or white to remain inconspicuous in permanent setups.

Video format/Resolution

1080p 60/59.94/50/30/29.97/25

1080i 60/59.94/50

720p 60/59.94/50

Image Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels (approx.)

2.07 Mega pixels

S/N Ratio

>55dB

Min. Illumination

0.5Lux (F1.8, AGC ON)

Electronic Shutter

Auto / Manual

Zoom Ratio

20x Optical Zoom, 10x Digital Zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions

Yes

On-Screen Display (OSD)

English, Simplified Chinese

White Balance

Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K

AGC / Gain Control

Auto / Manual

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Panning / Tilting Range

Pan: 340° , Tilt: +90° to -30°

Panning / Tilting Speed

Pan: 0.1~60°/sec

Tilt: 0.1~30°/sec

Preset

255 Position

Focal Length

f=5.2 (wide) to 98 (tele) mm

F1.6 to F3.5

Field of View (Horizontal, Wide)

Approx. 54.7° (WIDE END) / 3.3° (TELE END)

Image Compensation

Backlight Compensation

Video Output

HDMI x 1

SDI x 1

Audio Input

3.5mm Line in

Tally LED

Dual color (Red, Green)

Lens Filter

M52.0 x 0.75 Thread with UV Protection

Control Protocol

VISCA, Pelco-D, Pelco-P, DVIP

Remote Control Interface

RJ-45: for IP control (DVIP)

RS-232

RS-485

Video Compression Format

H.264, H.265, Dual stream output

Audio Compression Format

AAC/MP3/G.711A Audio compression

Audio Bitrate

96Kbps, 128Kbps, 256Kbps

HD IP Interface

100M IP port(100BASE-TX); Support DVIP

Streaming Protocols

TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc

First Stream Supported Resolution----

Second Stream Supported Resolution----

Video Bitrate

----

Video Bitrate Mode

----

Encoding Frame rate

----

POE

----

F/W Update

Ethernet

IR Control

Yes

Camera Control Unit

RMC-180 series/RMC-300 series/PTZ View Assist APP

Tripod Mount

1/4-20 UNC

Optional Accessories

WM-1/ WM-10/ WM-11

Color

Dark Blue/White

Dimension (LxWxH)

156 x 184 x 186 mm

Weight

1.6 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 12W

In the Box

1 x PTC-140 Unit

1 x IR remote controller

1 x Ceiling mount bracket-A

1 x Ceiling mount bracket -B

6 x Ceiling mount bracket screw M3*4mm

1 x DC 12V Power Adaptor

1 x Power Cord

1 x A tightrope
