DPA Surround Kit with 3 x 4006A 2 x 4011A Clips Windscreens in Peli Case
Sell Your Gear
warranty on this product

DPA Surround Kit with 3 x 4006A 2 x 4011A Clips Windscreens in Peli Case

code: 5006-11A
  • $10,228.89
  • RRP: $10,263.33
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

DPA 5006-11A (5006 11A 5006/11A 5006 11 A) Surround Kit with 3 x 4006A, 2 x 4011A, Clips, Windscreens in Peli Case

FEATURES:

  • Three + two carefully matched microphones
  • Decca Tree front + cardioids rear
  • Specially useful as orchestral main pair
  • PeliTM Case transportation and protection

The DPA 5006-11A is a complete surround kit combining three DPA 4006A and two 4011A, carefully factory-matched to achieve full precision. Even though the standard tolerances on DPA Reference Standard Mics are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5°. The 4011A’s are matched within ±1 dB.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

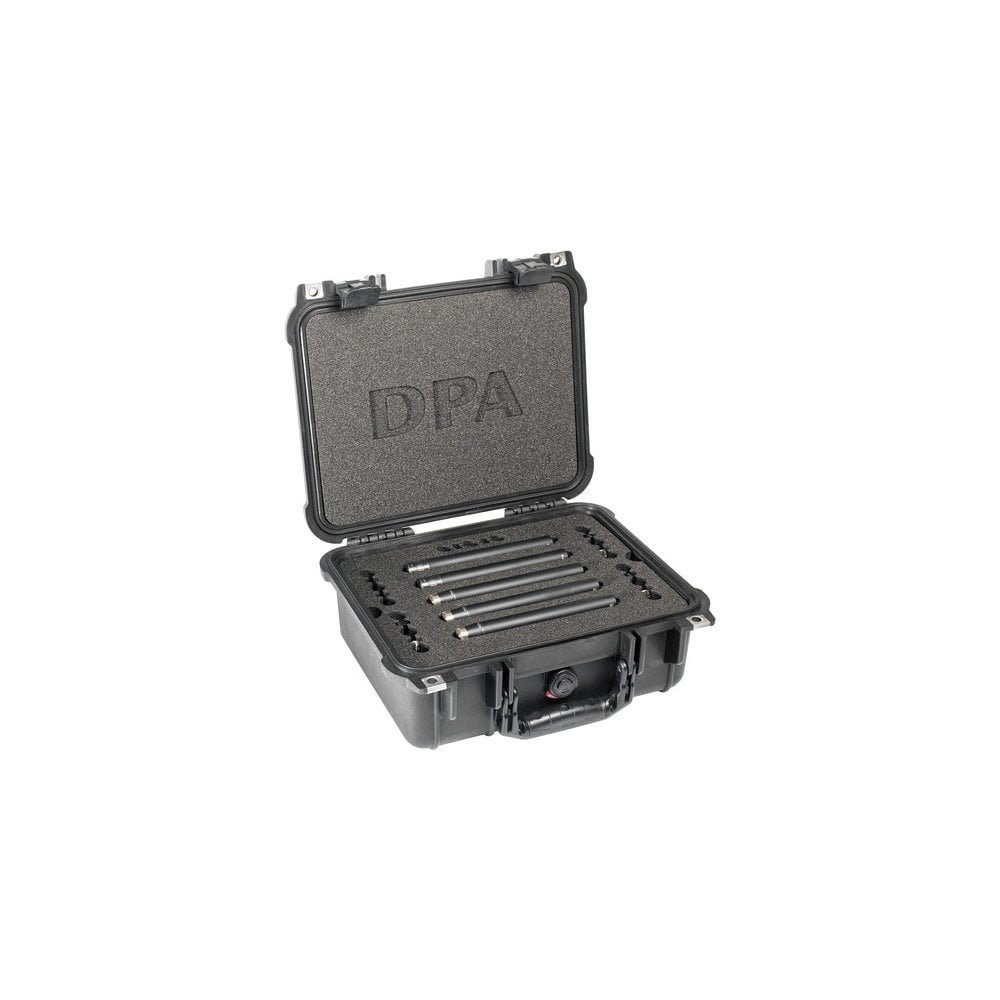

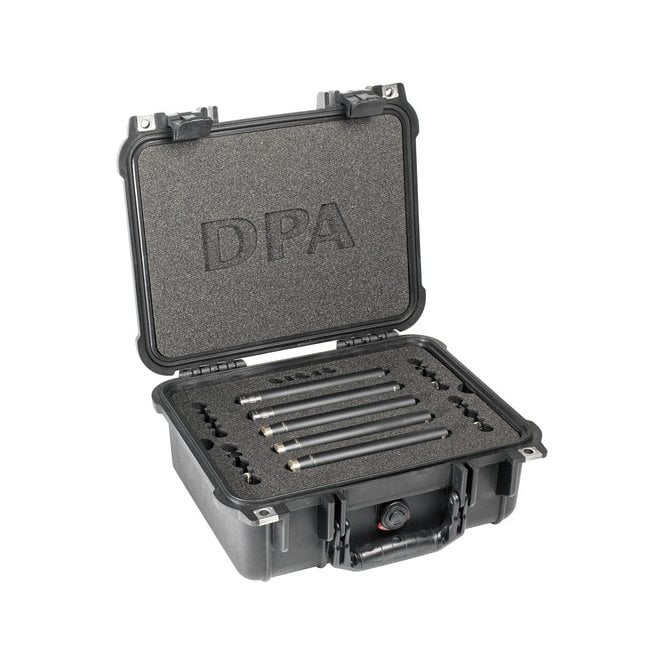

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Included in this kit:
Carefully matched microphones, sturdy PeliTM case, holders, grids, and windscreens.



Specifications for d:dicate™ 5006-11A Surround Kit with 4006A omnis and 4011A cardioids

Directional characteristics: 4006A: omnidirectional. 4011A: cardioid.
Principle of operation: 4006A: pressure. 4011A pressure gradient.
Cartridge type: Pre-polarized condenser
Frequency range: 10 Hz to 20 kHz
Frequency range, ± 2 dB: 4006A: 10 Hz to 20 kHz. 4011A: 40 Hz to 20 kHz.
Sensitivity, nominal, ±2 dB at 250 Hz: 4006A: 40 mV/Pa; -28 dB re. 1 V/Pa
Sensitivity, nominal ±2 dB at 1 kHz: 4011A: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: 4006A: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)). 4011A: Typ. 18 dB(A) re. 20 µPa (max. 20 dB).
Equivalent noise level, ITU-R BS.468-4: 4006A: Typ. 27 dB (max. 29 dB). 4011A: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting).
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL: 4006A: Typ. 79 dB(A). 4011A: Typ. 76 dB(A).
Total Harmonic Distortion (THD): : < 1 % up to 139 dB SPL peak
Minimum load impedance: 2 kohm
Dynamic range: 4006A: Typ. 124 dB. 4011A: Typ. 121 dB.
Max. SPL, peak before clipping: 4006A: 147 dB. 4011A: 159 dB.
Switchable attenuator: 0 dB / -20 dB
Output impedance: < 200 ohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 60 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 4006A: 163 g (5.7 oz). 4011A: 158 g (5.6 oz).
Diameter: 4006A: 16 to 19 mm (0.63 to 0.75 in). 4011A: 19 mm (0.75 in).
Capsule diameter: 4006A: 16 mm (0.63 in). 4011A: 19 mm (0.75 in).
Length: 170 mm (6.7 in)
Output voltage, RMS: > 5 V
Polarity: +V at Pin 2 for positive sound pressure
Temperature range: -40 °C to 50 °C (-40 °F to 122 °F)
Relative Humidity (RH): Up to 90 %
Matching tolerance: 4006A: ± 0.5 dB. 4011A: ± 1 dB.
Phase deviation for kit: 4006A: < 5°. 4011A: < 10°.
