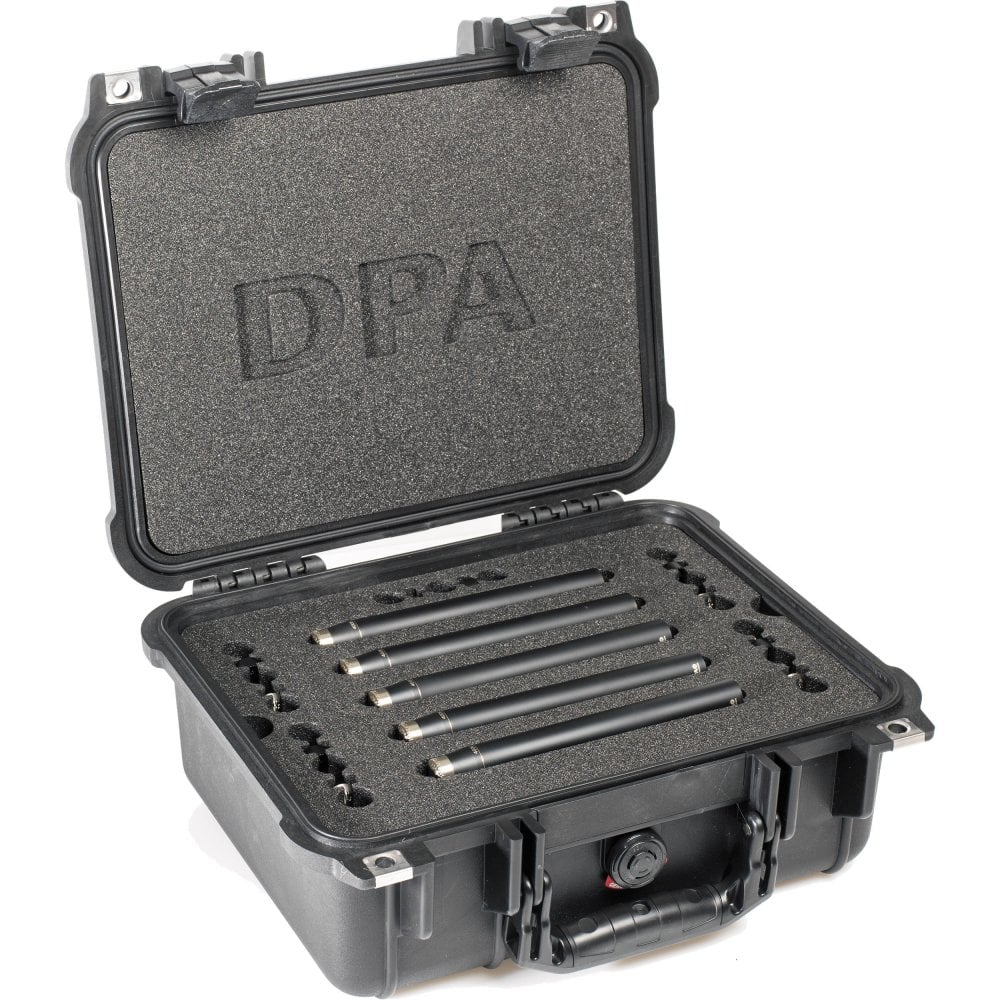

DPA Surround Kit with 5 x 4006A Clips Windscreens in Peli Case

DPA 5006A (5006 A 5006-A 5006/A) Surround Kit with 5 x 4006A, Clips, Windscreens in Peli Case

The 5006A Surround Microphone Kit from DPA Microphones includes five 4006A omnidirectional microphones, matched within 0.5dB on both frequency response and sensitivity.

They can be used for AB stereo, Decca Tree, or surround main array recording techniques for orchestral settings. DPA includes mic holders, grids, and windscreens for all mics. The included Peli foam-lined case can be used for transportation and storage.

Transducer Pressure, Pre-Polarized Condenser

Polar Pattern Omnidirectional

Frequency Response 10 Hz to 20 kHz

Sensitivity Nominal ± 2 dB at 250Hz: 40 mV/Pa; -28 dB re. 1 V/Pa

EIN Equivalent Noise Level, A-Weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))

Equivalent Noise Level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)

Signal-to-Noise Ratio Typ. 79 dB(A)

THD < 1 % up to 139 dB SPL peak

Minimum Load Impedance 2k ohm

Dynamic Range Typ. 124 dB

Max Input Sound Level (SPL) 147 dB

Attenuation / Gain Switchable attenuator: 0 dB / -20 dB

Output Impedance < 200 ohm

Cable Drive Capability Up to 328' (100m) with DAD6001 XLR adapter

Output Connector: 3-pin XLR

Output Balance Principle: Impedance balancing with Active Drive

Common Mode Rejection > 60 dB

Color Matte Black

Power Supply Power Supply: 48 V Phantom Power (+/- 4 V)

Current Consumption: 2.8 mA

Output Voltage: > 4 V

Polarity +V at Pin 2 for positive sound pressure

Temperature Range -40 ° to 122 °F (-40 ° to 50 °C)

Relative Humidity Up to 90%

Dimensions (Diam. x L) 0.63 x 6.70" (16.00 x 170.00 mm)

Weight 5.7 oz (163.0g)
