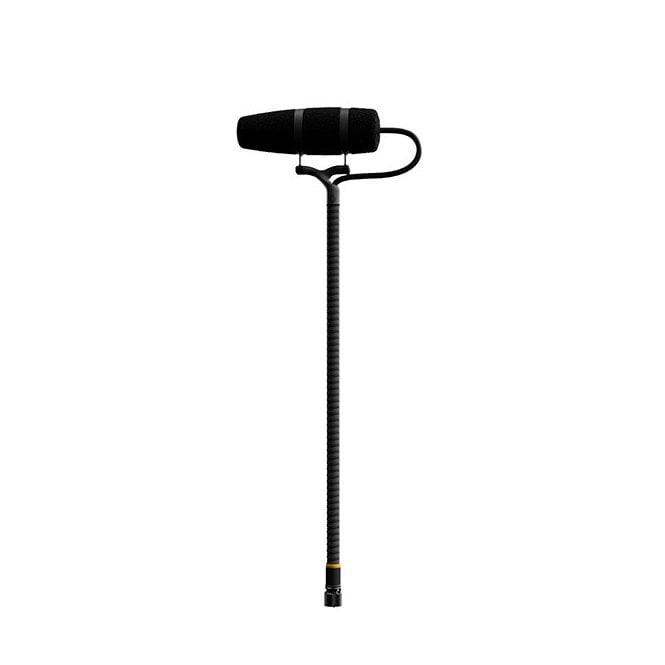

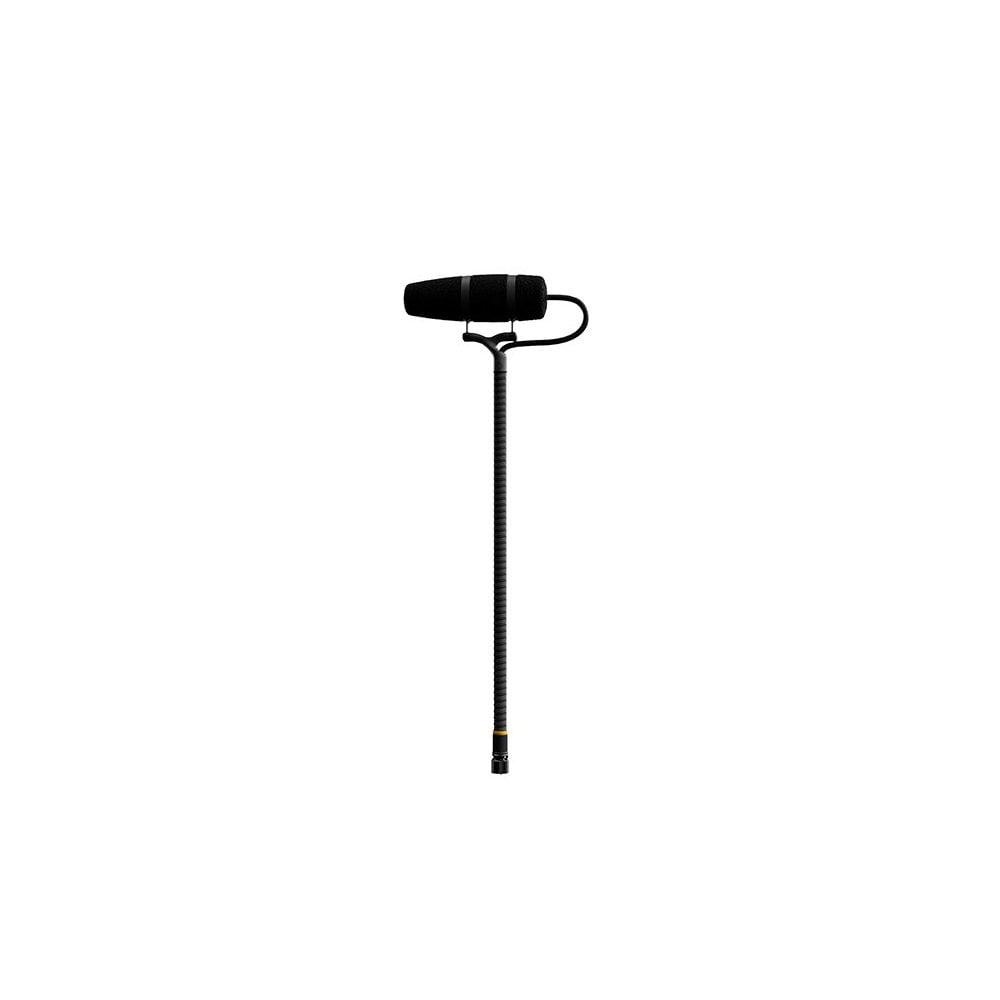

DPA 4099 CORE+ Instrument Microphone Extreme SPL

DPA 4099-DP-2 (4099/DP-2, 4099/DP/2, 4099DP2, 4099_DP_2) 4099 CORE+ Instrument Microphone Extreme SPL

This mic delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument. 

(The 4099 CORE+ is fully backwards compatible with all generations of DPA instrument clips and with accessories featuring MicroDot connector, ensuring seamless integration with your existing setup.)

4099 CORE+ Mic, Loud SPL (red marking on gooseneck) – used to close-mic most types of acoustical instruments. – From the harp to the drums and everything in between. With CORE+, this mic has a max SPL, peak before clipping of 145 dB. 4099 CORE+ Mic, Extreme SPL (yellow marking on gooseneck) – used to close-mic extremely loud instruments, such as drums and some brass. Designed for use on drums, percussion instruments and other very loud instruments like, for example, the trumpet, this mic has a max SPL, peak before clipping of 154 dB.

You can buy a single 4099 alone or with a specific instrument clip, or you can choose a kit designed specifically for rock or classical applications. These kits come in 4-piece and 10-piece sets combined with the appropriate adapters, clips and cables that make it a breeze to set up your stage.

CORE+ captures an instrument’s true voice - picked up or amplified with DPA’s renowned authenticity. With CORE+ technology inside, the 4099 captures every nuance with pristine clarity, ensuring that the character of the instrument remains untouched, both on-axis and in the surrounding soundscape  (learn more about CORE+ here)

Well-balanced isolation – from surrounding instruments due to the supercardioid polar pattern and linear off-axis response 

Lightweight, discreet design – ensures that the 4099 blends seamlessly into performances 

Superior microphone suspension – from enhanced shock mount and microphone body design. Improves isolation from instrument vibrations and stage noise, ensuring a cleaner signal and a more homogenous sound 

One microphone, ∞ possibilities – upgraded, flexible clip program ensures a secure, reliable fit while treating your instrument with the utmost care. Effortless to attach and adjust, yet firm and reliable in hold, this one microphone model can beautifully reinforce an entire orchestra 

Reliable MicroLock® connector – detachable cable and connection with a wide range of wireless systems 

One microphone, ∞ possibilities

From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly. DPA’s versatile and practical instrument clip system has been a key selling point since the launch of the original 4099 in 2008. The principle of attaching the clip to the gooseneck has proven highly effective in both classical and rock applications, offering secure and flexible mounting solutions. And now, we have enhanced the clip system – improving not only the acoustic performance of the microphone but also the security, reliability and efficiency of the mounting process. These refinements make it easier to close-mic instruments and adjust capsule positioning for optimal performance. 

The most significant update is the introduction of a new gooseneck locking mechanism: the Gooseneck Mount (G-MOUNT). By integrating this new locking principle, we have streamlined the mounting process, ensuring greater stability, ease of use and precision of mic placement for musicians and audio professionals alike.

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
• Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic range: Typ. 118 dB
• Max. SPL, THD 10%: 145 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
• Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
• Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
• With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
• Connector: MicroLock
• Weight: Microphone: 18 g (0.63 oz), Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz), Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz), Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)
• Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz), Universal Microphone Clip (U-CLIP): 15 g (0.53 oz), Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz), Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz), Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz), Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz), Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 50 mm (1.97 in)
• Cable length: 1.8 m (5.9 ft) (not included with 4099-DP-1 and 4099-DP-2)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
• Sensitivity selection tolerance (at 1 kHz): ±1 dB
• Colors: Black

In The Box

• DPA 4099 CORE+ Instrument Microphone Extreme SPL
