DPA 4099 CORE+ Instrument Microphone Extreme SPL with Clip for Brass

DPA 4099-DP-2-199-T (4099/DP-2-199-T, 4099/DP/2/199/T, 4099DP2199T, 4099 DP 2 199 T) 4099 CORE+ Instrument Microphone Extreme SPL with Clip for Brass

DPA 4099 CORE+ Brass Kit - includes the renowned DPA 4099 CORE+ Instrument Mic, along with Brass Clip (STC4099), DAD9099 Adapter, and 1.8m MicroLock extension cable.

This mic delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument. 

4099 CORE+ Mic, Extreme SPL – used to close-mic extremely loud instruments, such as drums and some brass. Designed for use on drums, percussion instruments and other very loud instruments like, for example, the trumpet, this mic has a max SPL peak before clipping of 152 dB.

• Directional pattern: Supercardioid
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm: 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 2 mV/Pa; -54 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range: Typ. 109 dB
• Max. SPL, THD 10%: 152 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
• CMRR: > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapte
• Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
• Weight: 17 g (0.60 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 45 mm (1.8 in)

In The Box

• 1x DPA 4099 CORE+ Mic, Extreme SPL

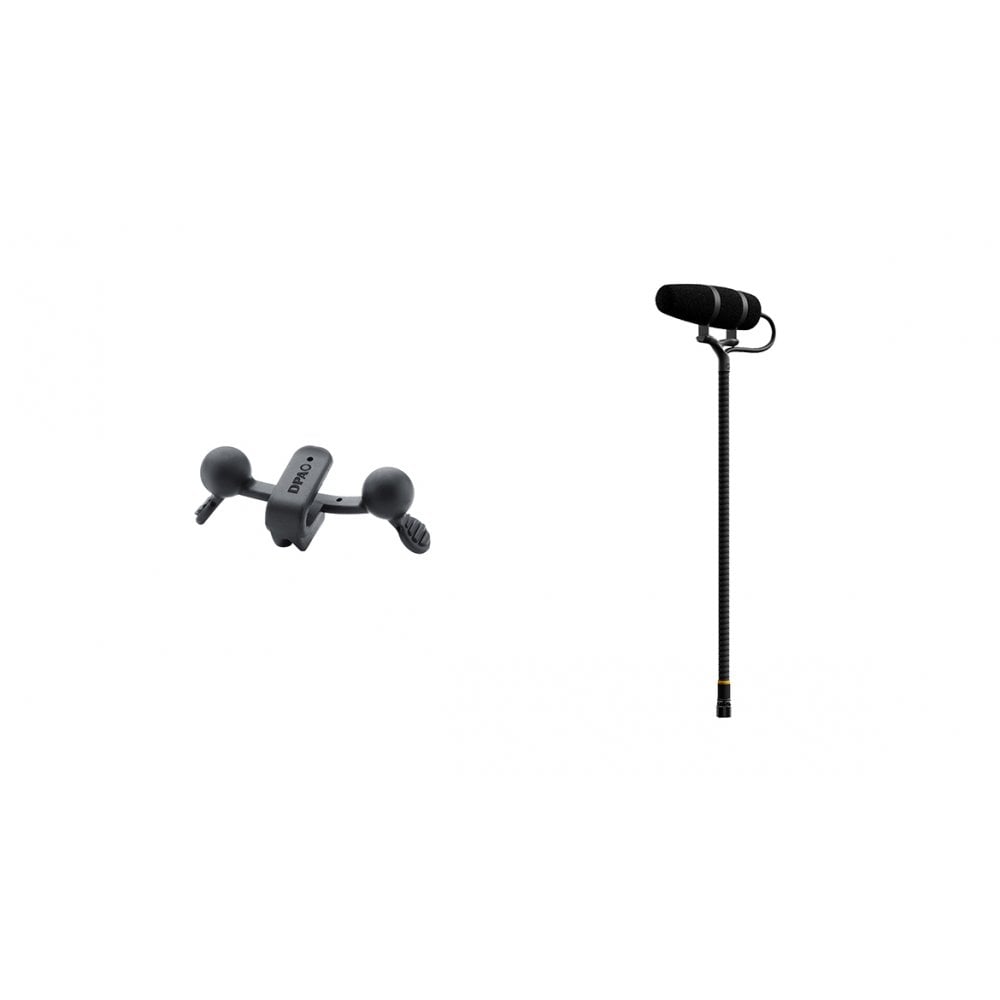

• 1x DPA Microphones STC4099 Saxophone Mounting Clip for 4099 Microphone
