DPA 4099 Rock Touring Kit, 10 Mics and Accessories, Extreme SPL

DPA KIT-4099-DP-10R (KIT/4099-DP-10R, KIT/4099/DP/10R, KIT 4099 DP 10R, KIT4099DP10R) 4099 Rock Touring Kit, 10 Mics and Accessories, Extreme SPL

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument. 

CORE by DPA is a powerful technology at the heart of DPA’s miniature microphones. By significantly reducing distortion, CORE delivers greater clarity, openness, and detail across the entire dynamic range—from the softest pianissimo to the most powerful forte.

From piano and guitar to strings, woodwinds, brass, and percussion, the d:vote™ Series delivers exceptional, natural sound across a wide range of acoustic instruments. With a single microphone model, you can achieve consistent, professional-quality sound throughout an entire orchestra. When switching between instruments, simply use the appropriate clip for secure and accurate mounting.

The award-winning d:vote™ Series provides a more natural and authentic sound than traditional clip-on microphones or pickups. Its high-quality condenser microphone effectively rejects unwanted noise while accurately capturing the true character and voice of your acoustic instrument.

The  d:vote™ CORE 4099 also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting. The award-winning d:vote™ Series, gives you a much more natural sound than any internal microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument. These mics come available in kits of 4- or 10 pieces with relevant accessories to make it easy to mic a group, band or orchestra.

A perfect kit for your needs

There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the d:vote™ Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of d:vote™ CORE 4099 Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments – from the flute to the guitar, and everything in between.

The d:vote™ Rock Touring Kit offers a number of d:vote™ condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the d:vote™ CORE 4099 Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.

About d:vote™ CORE 4099 Instrument Microphones

Both the Loud- and Extreme-SPL versions of the d:vote™ CORE 4099 have a supercardioid polar pattern for high rejection and superior gain-before-feedback. The mic also retains a uniform off-axis frequency response to ensure a high-energy, clear live performance.

The  d:vote™ CORE 4099 also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.

The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities.

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 2 mV/Pa; -54 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 40 dB (max. 43 dB)
• Distortion, THD < 0.5%: 131 dB SPL RMS, 134 dB peak
• Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic range: Typ. 113 dB
• Max. SPL, THD 10%: 154 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
• Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
• Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
• With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
• Connector: MicroLock
• Weight: Microphone: 18 g (0.63 oz), Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz), Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz), Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz), Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz), Universal Microphone Clip (U-CLIP): 15 g (0.53 oz), Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz), Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz), Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz), Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz), Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 50 mm (1.97 in)
• Cable length: 1.8 m (5.9 ft) (not included with 4099-DP-1 and 4099-DP-2)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)

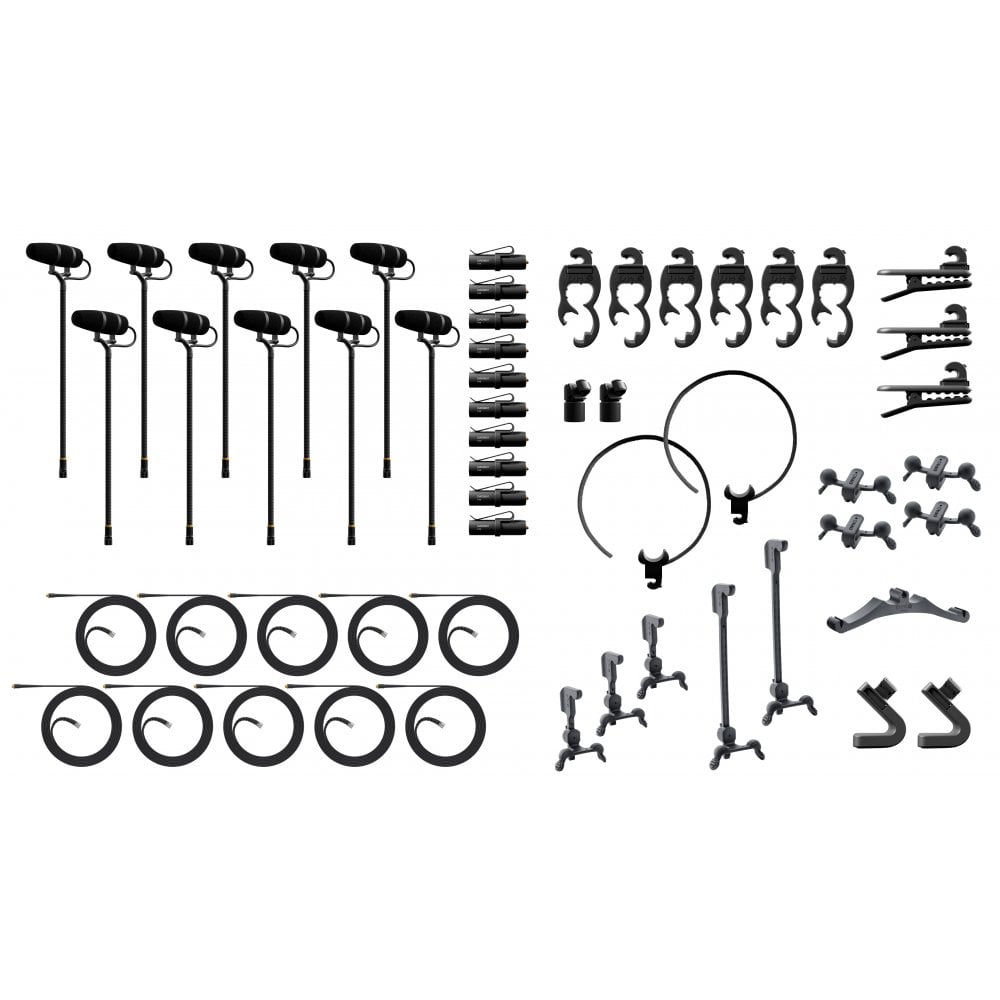

In The Box

• 10x 4099-DP-2 Instrument Microphone, Extreme SPL
• 10x MicroLock Extension Cable, 2.2 mm / 0.09 in
• 10x DAD9001 MicroLock to 3-pin XLR with Belt Clip
• 1x Zip Pouch
• 1x Zip Case
• 6x Microphone Clip for Drum
• 2x Microphone Clip for Guitar
• 3x Microphone Clip for Violin
• 2x Universal Microphone Clip
• 1x Microphone Clip for Bass
• 4x Microphone Clip for Sax
• 2x Microphone Clip for Piano
• 3x Clamp Mount Microphone Clip
• 2x Microphone Stand Clip 3/8” and 5/8” thread
