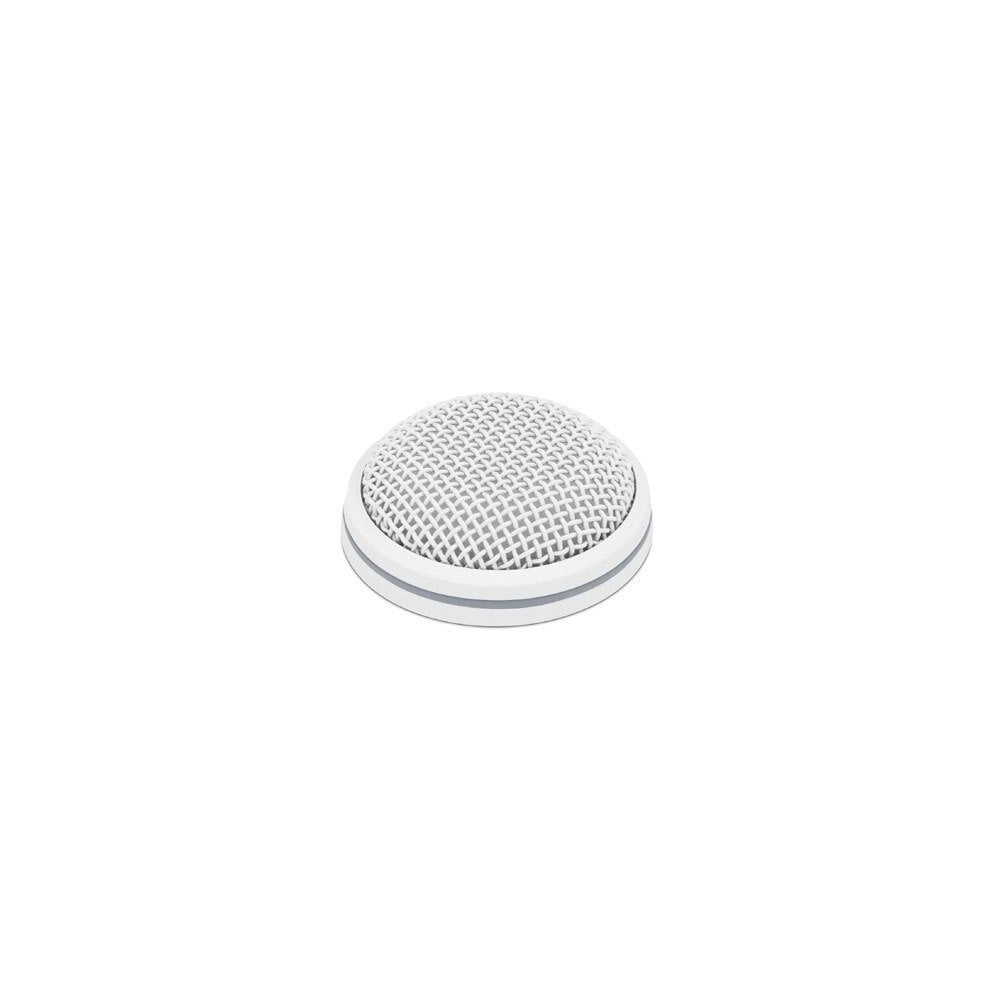

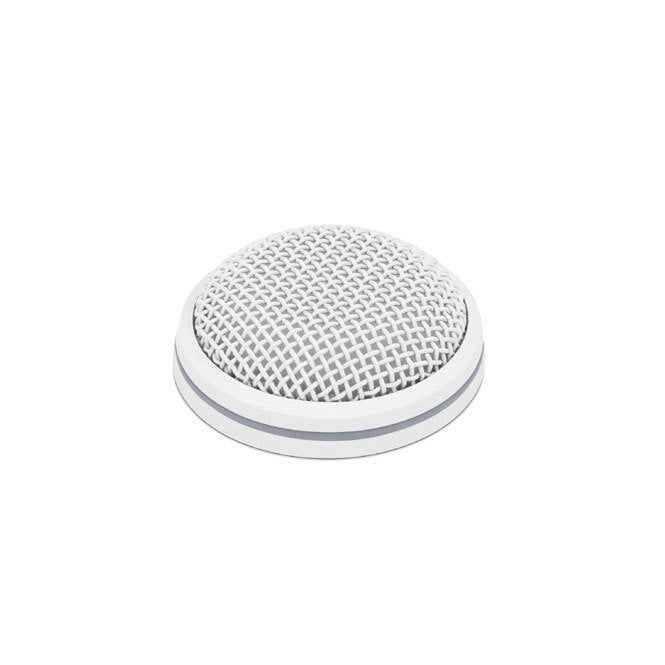

Sennheiser MEB 102-L Omnidirectional Boundary Microphone (White)

code: 505604

£131.50
Secure yours with a deposit of
RRP: £139.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Omnidirectional Polar Pattern

LED for Status Indication

Programmable On, On/Off, PTT, PTM Modes

40 Hz to 20 kHz Frequency Range

24 to 48V Phantom Power

XLR-5 Pin Output Connector

Mounting Hardware is Included

Description
Specification
Included In Box
Reviews

Sennheiser 505604 (505-604, 505/604, 505 604, 50-56-04) (MEB/102-L, MEB-102-L, MEB102-L) MEB 102-L Omnidirectional Boundary Microphone (White)

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Connector: MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = − MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = − (Mic −), 4 = LED green (trigger signal), 5 = LED red (default)

Current consumption: MEB 102: 3 mA, MEB 102-L: 6 mA

Colour: black, white , nextel grey

Dimensions: Height: 83 mm (12 mm above surface), Diameter 28.5 mm

Frequency response: 40 Hz – 20 kHz

Max. sound pressure level :125 dB

Transducer principle: pre-polarized condenser microphone

Weight: 58 g

Pick-up pattern: omni-directional

Nominal impedance: 200 Ω

Phantom powering: P 24 - P 48

Operating temperature: 0 °C - +40 °C

Equivalent noise level: 21 dB (A)

Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)

Acoustics: Boundary Layer Microphone

Dynamic range: 104 dB (A)

Sensitivity: 16 mV/Pa

Thread: M 20

MEB 102 L

Quickguide

Mounting material
