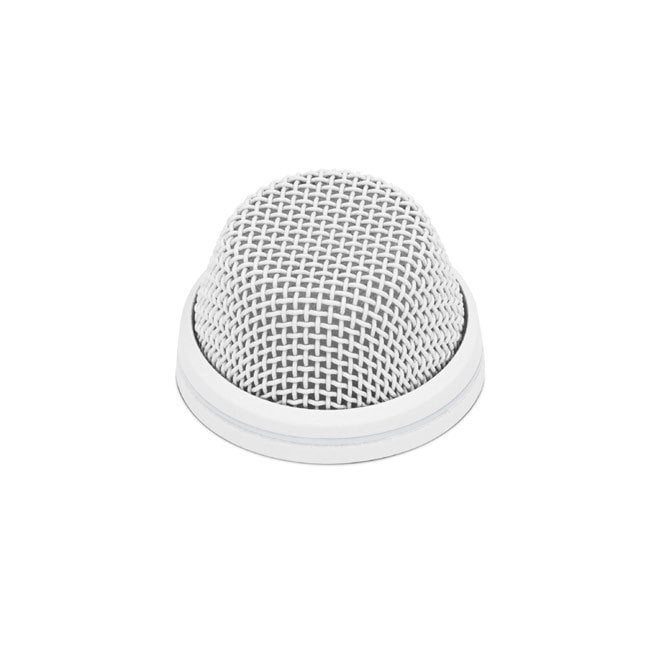

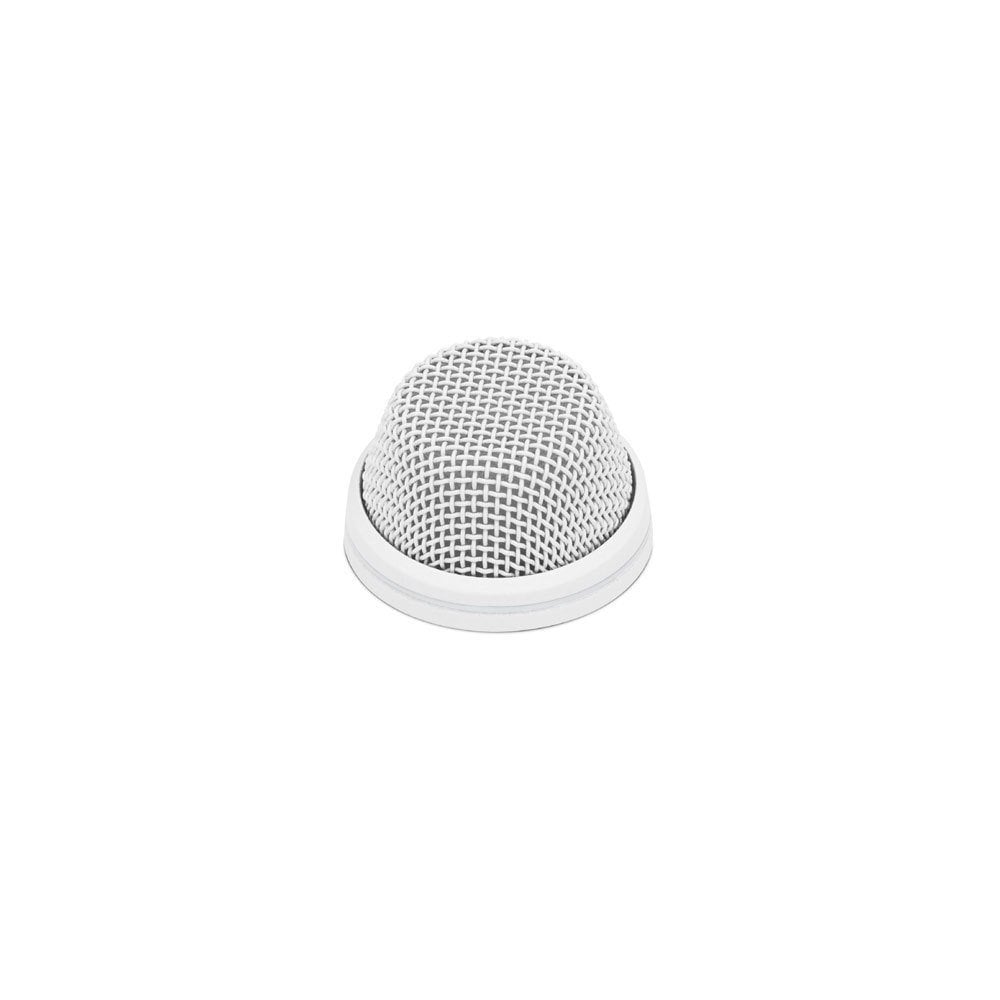

Sennheiser MEB 104 Cardioid Boundary Microphone (White)

code: 505607

£139.83
Secure yours with a deposit of
RRP: £139.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Cardioid Polar Pattern

40 Hz to 20 kHz Frequency Range

24 to 48V Phantom Power

XLR Output Connector

Mounting Hardware is Included

Description
Specification
Included In Box
Reviews

Sennheiser 505607 (505/607, 505-607, 505 607, 50-56-07) (MEB104, MEB/104, MEB-104) MEB 104 Cardioid Boundary Microphone (White)

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 104 (cardioid) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Connector: MEB 104: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = − MEB 104-L: XLR-5, Pin assignment: 1 = gnd, 2 = + (Mic +), 3 = − (Mic −), 4 = LED green (trigger signal), 5 = LED red (default)

Current consumption: MEB 104: 3 mA , MEB 104-L: 6 mA

Colour: black , white , nextel grey

Dimensions: Height: 90 mm (19 mm above surface), Diameter:28.5 mm

Frequency response: 40 Hz – 20 kHz

Max. sound pressure level: 125 dB

Transducer principle: pre-polarized condenser microphone

Weight: 60 g

Pick-up pattern: cardioid

Nominal impedance: 200 Ω

Phantom powering: P 24 - P 48

Operating temperature: 0 ° - +40 °C

Equivalent noise level: 28 dB (A)

Equivalent noise level weighted as per CCIR 468-3: 38 dB (CCIR)

Acoustics: Boundary Layer Microphone

Dynamic range: 97 dB (A)

Sensitivity: 14 mV/Pa

Thread: M 20

MEB 104

Quickguide

Mounting material
