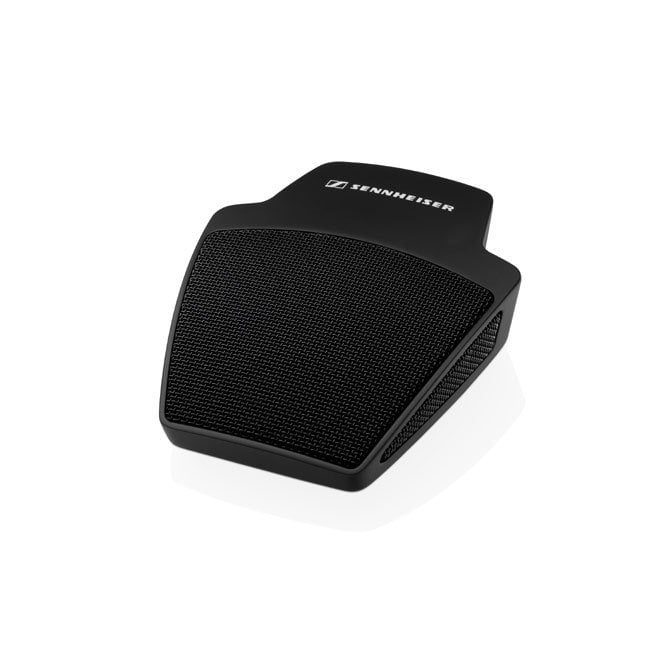

Sennheiser MEB 114 Cardioid Table Boundary Microphone (Black)

Sennheiser 505612 (50-56-12, 505/612, 505-612, 505 612) (MEB/114, MEB-114, MEB114) MEB 114 Cardioid Table Boundary Microphone (Black)

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Form Factor Boundary/Surface Mount

Sound Field Mono

Capsule Condenser

Polar Pattern Cardioid

High-Pass Filter None

Performance

Frequency Range 40 Hz to 20 kHz

Maximum SPL 140 dB SPL

Impedance 200 Ohms

Sensitivity 10 mV/Pa

Dynamic Range 111 dB A-Weighted

Equivalent Noise Level 29 dB A-Weighted

39 dB CCIR

Connectivity

Cable Length 9.8' / 2.99 m

Power

Operating Voltage 48 V

Operating Current Consumption 5.3 mA

Physical

Color Black

Mounting Tabletop

Operating Temperature 14 to 122°F / -10 to 50°C

Dimensions H: 3.94 x W: 3.35 x L: 0.98" / H: 100 x W: 85 x L: 25 mm

Weight 10.26 oz / 291 g

Packaging Info

Package Weight 1.2 lb

Box Dimensions (LxWxH) 8.1 x 6.8 x 2.4"

MEB 114 Microphone

Quickguide

Cable
