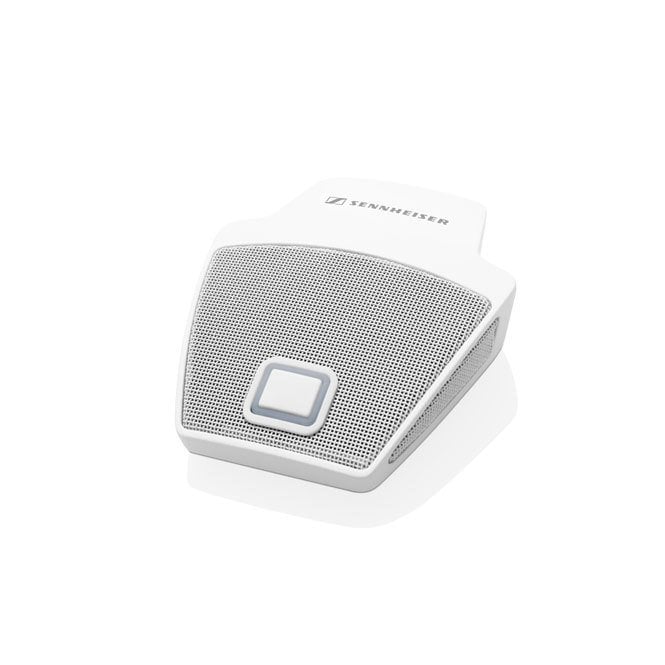

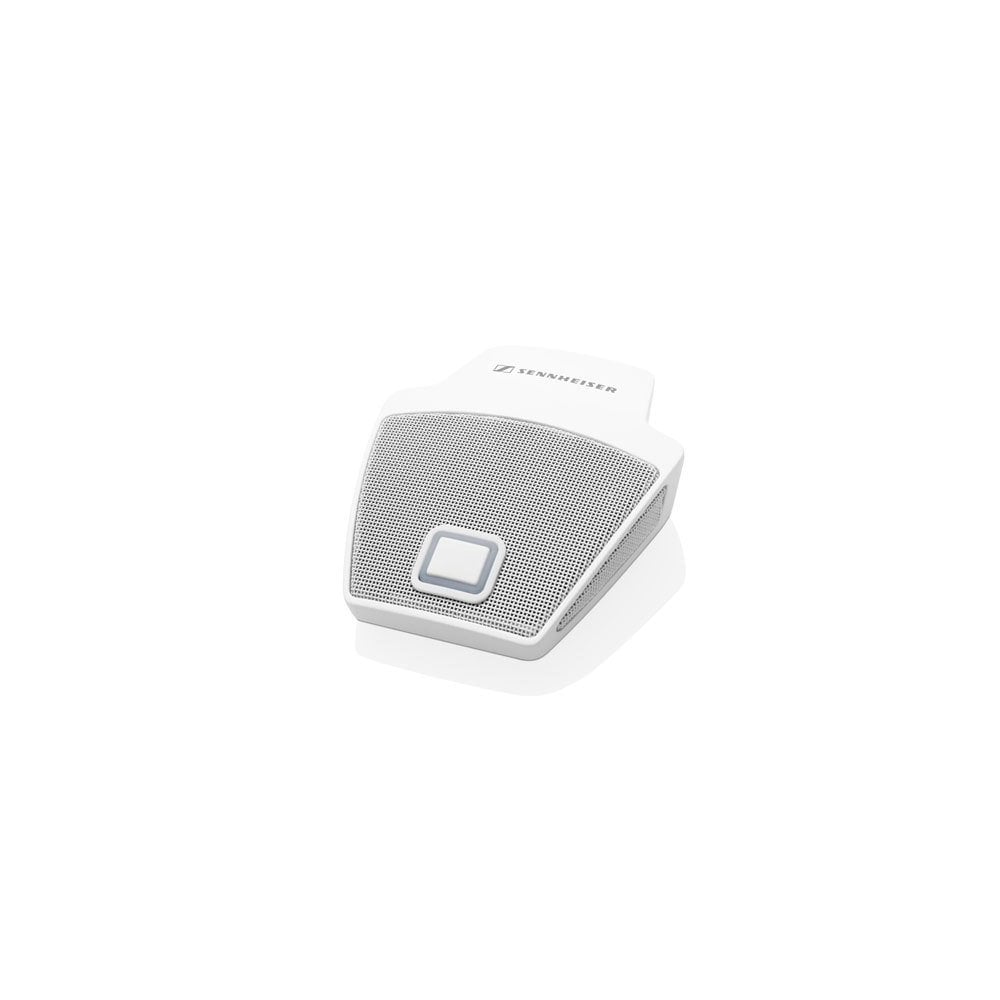

Sennheiser MEB 114-S Cardioid Boundary Microphone (White)

code: 505616

£230.67
Secure yours with a deposit of
RRP: £229.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Microphone modes

Toggle on/off

Push to mute

Push to talk

permanent on (external LED control)

Description
Specification
Included In Box
Reviews

Sennheiser 505616 (505-616, 505/616, 50-56-16, 505 616) (MEB/114-S, MEB-114-S, MEB/114-S) MEB 114-S Cardioid Boundary Microphone (White)

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Colour: black, white , nextel grey , LED light ring: red / green

Dimensions: 85 x 100 x 25 mm (WxDxH)

Connector: clip contact, trigger signal at the logic connector: Logic in (LED control), GND, Logic out (switch signal)

Frequency response: 40 Hz – 20 kHz

Max. sound pressure level: 140 dB

Transducer principle: pre-polarized condenser microphone

Weight: 291 g

Pick-up pattern: cardioid

Nominal impedance: 200 Ω

Phantom powering: P 24 - P 48

Operating temperature: -10 ° … +50 °C

Equivalent noise level: 29 dB (A)

Equivalent noise level weighted as per CCIR 468-3: 39 dB (CCIR)

Current consumption: 5.3 mA

Output voltage: Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V

Output voltage: Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V

Acoustics: boundary layer microphone

Dynamic range: 111 dB (A)

Sensitivity: 10 mV/Pa

MEB 114-S Microphone

Quickguide

Cable
