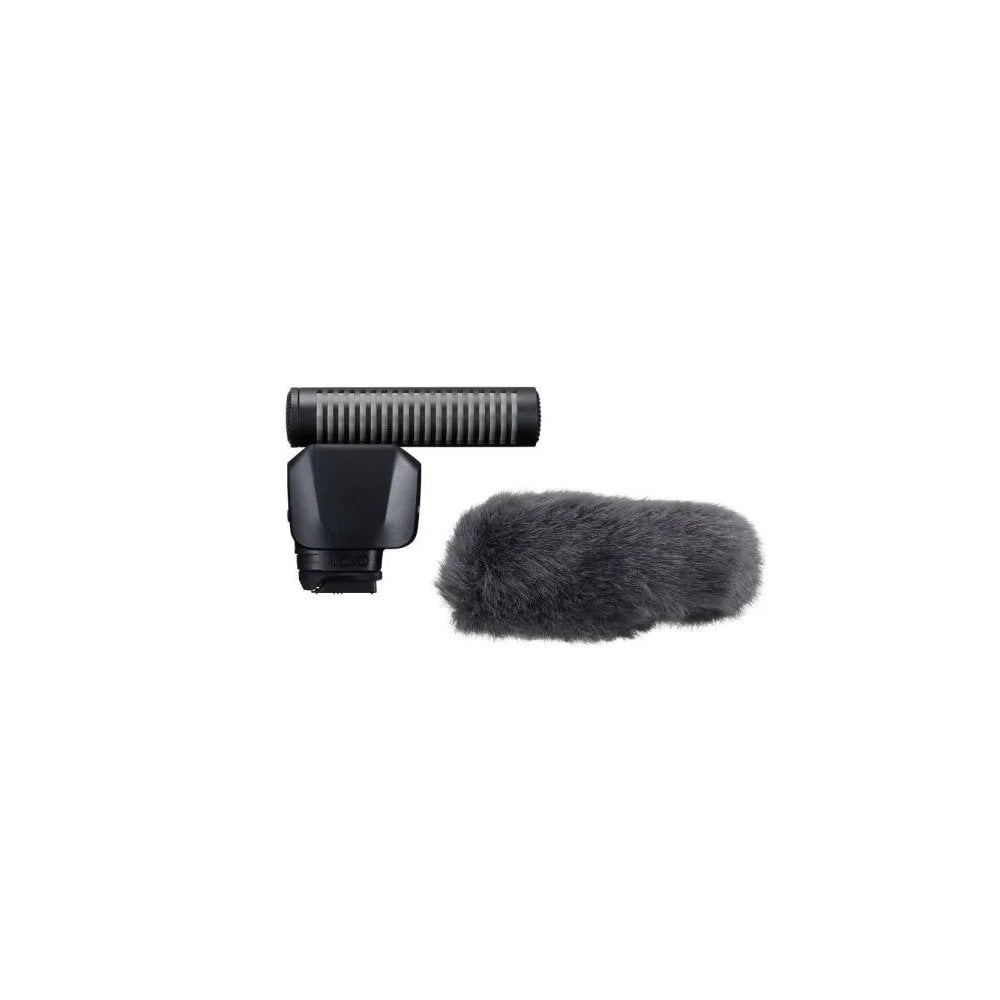

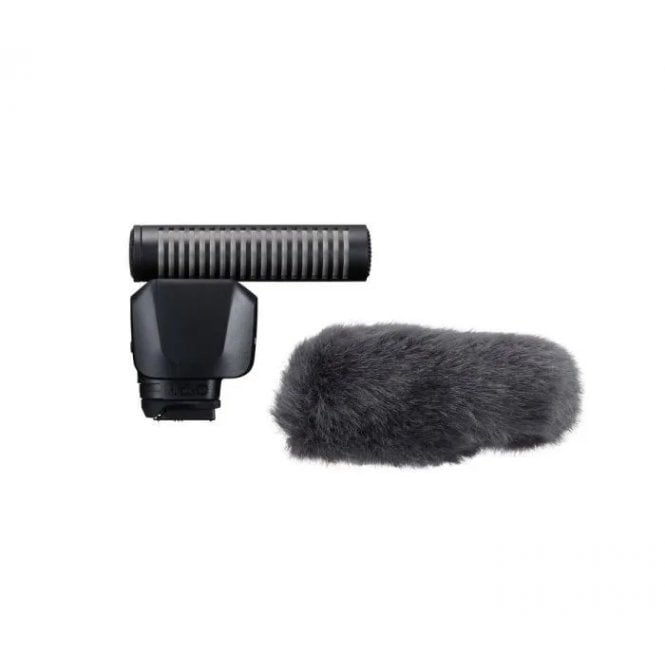

Canon DM-E1D Directional Stereo Microphone

Canon DM-E1D Directional Stereo Microphone(5138C001AA)

High quality digital audio

Using digital signal processing for a cleaner, crisper audio signal helps deliver a richer experience – with a soundscape that puts the audience at the heart of the performance.

Cableless connection

Sliding and locking easily onto the Multi-function shoe of compatible cameras, the Multi-function shoe directional stereo microphone DM-E1D is entirely cableless for a reliable and secure connection, with low noise.

Power direct from the camera

Attach the Multi-function shoe directional stereo microphone DM-E1D with confidence and never worry about how much power is left in the microphone’s battery – as it is powered directly from the camera.

Directional for precise controlThree modes of directional pick-up give you the flexibility to capture audio on your terms. Switch between shotgun (monaural), 90 degree or 120 degree stereo for different sized spaces.

Easy operation from the camera menu

Press the MENU button on the microphone to bring up the microphone settings menu on the camera’s LCD, allowing for fast, simple operation and control.

Microphone type

Back-electret-condenser type stereo microphone

Directional sound pick-up

Shotgun (Monaural) 90° and 120° (Stereo)

Sensitivity SHOTGUN: -16dB (1kHz, 0db=1V/Pa) 90°: -18.7dB (1kHz, 0db=1V/Pa) 120°: -20dB (1kHz, 0db=1V/Pa)

Frequency SHOTGUN: 100 Hz - 10000 kHz 90°: 100 Hz - 10000 kHz 120°: 100 Hz - 10000 kHz

S/N ratio 62 dB or higher (1 kHz, 1 Pa)

AUDIO OUTPUT

Analogue / Digital Digital

Bits 16-bit

Sampling frequency 48 kHz

Attenuator Yes

Wind filter Yes

INTERFACE

Output terminal Multi-Function foot

Mounting shoe Multi-Function shoe only

POWER SOURCE

Battery Powered from the camera

Power consumption Power consumption

MISC.

Buttons Buttons

Dust and water resistance Between the Multi-Function foot and

camera shoe only

(Dust and water seal engaged with a lever

operation and locking mechanism on the foot)

In the Box

Wind screen

Cover
