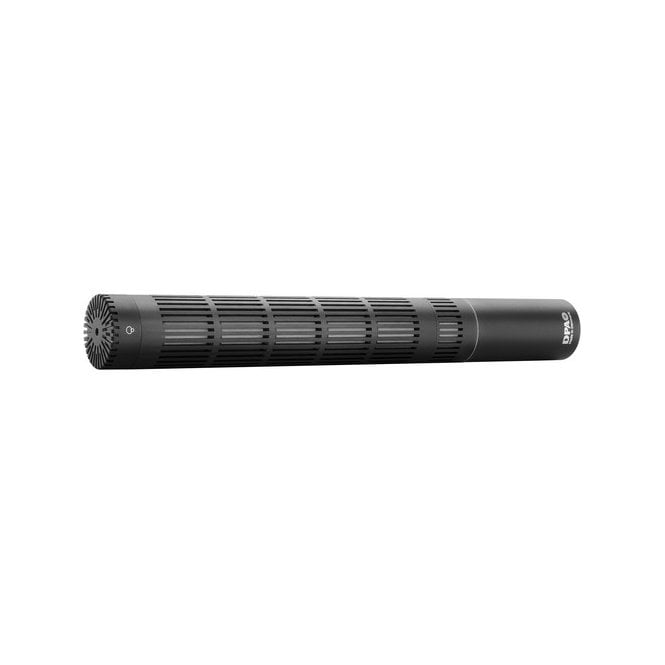

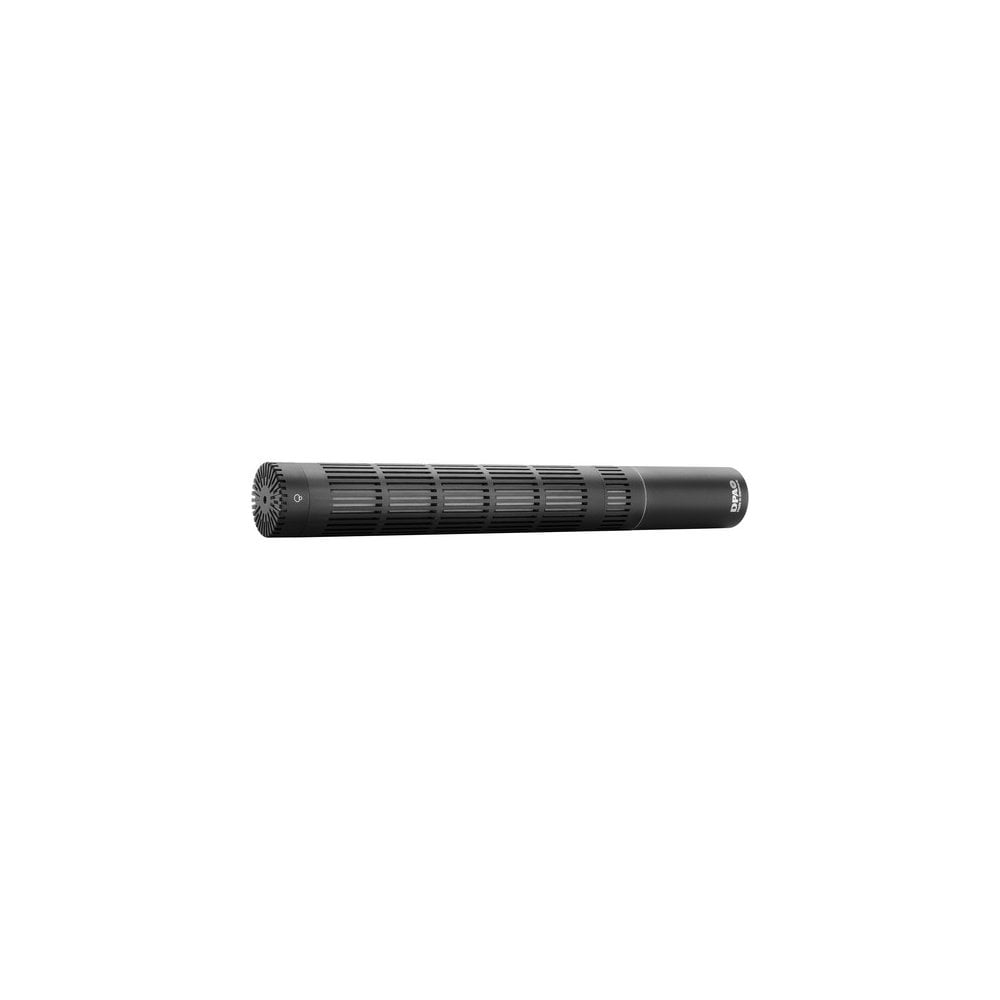

DPA 4017C (4017 C 4017-C 4017/C) Compact Shotgun Microphone

FEATURES:

  • Excellent RF Immunity
  • Lightweight
  • Uniform off-axis response
  • Highly directional

Setting new standards for compactness within shotgun microphones and their applications, the modular 4017C is an exceptionally short and lightweight interference tube microphone with high directionality. The tight polar pattern is very frequency linear and uniform. With the compact MMP-C pre-amp, booming applications such as in a car or in low ceiling rooms is uncomplicated. The total length of the microphone is as short as 15,4 cm (6.1 in), the weight at just 70 g (2.5 oz).

Also available with Rycote Windshield and suspension system, the 4017C-R is a fully packed and ready solution.

Specifications for d:dicateâ„¢ 4017C Compact Shotgun Microphone

Directional pattern: Supercardioid, lobe-shaped
Principle of operation: Pressure gradient, with interference tube
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ± 2 dB, at 60 cm: 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 26 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 80 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 133 dB SPL peak
Dynamic range: Typ. 119 dB
Max. SPL, peak before clipping: 146 dB
Output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 70 g (2.5 oz)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 154 mm (6.1 in)
Output voltage, RMS: 4.5V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up to 90%
