DPA 4017ES Shotgun Microphone Side cable

code: 4017ES
  • £1,205.00
  • RRP: £1,205.00
Item Available | Usually dispatched within 24 hours

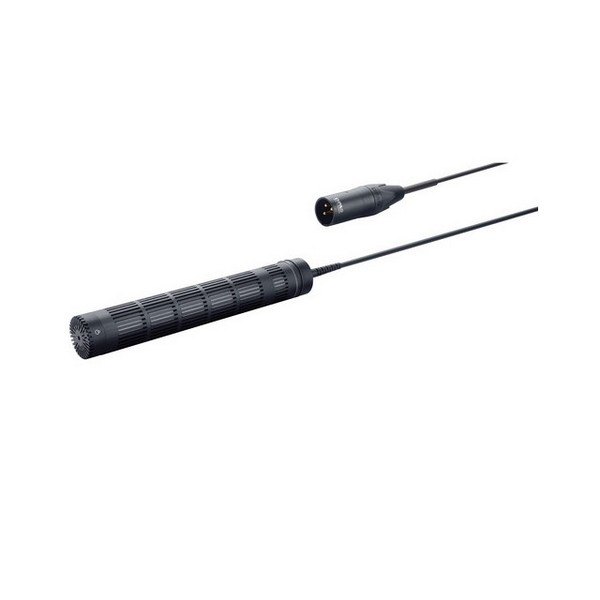

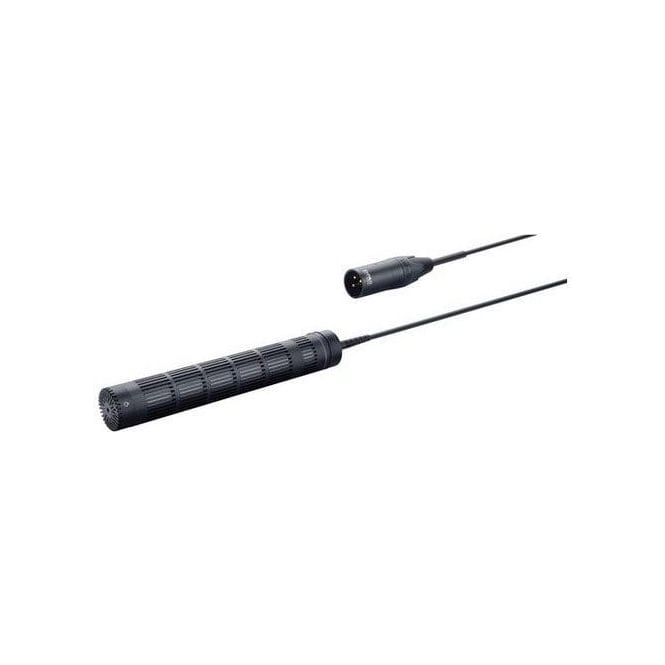

DPA 4017ES Shotgun Microphone Side cable

4017ES Shotgun Microphone, Side cable

• Sleek shotgun for distant miking

• Short and lightweight

• Integrated active cable

• Highly directional

With our most tiny pre-amp design, the 4017E features an integrated cable solution with either side (4017ES) or rear (4017ER) cable entry. Being the shortest professional interference tube shotgun mic available today, the 4017E will with its only 12,5 cm lenght and 30 g capsule weight (121 g in total with 3 m cable and connector) be able to boom actors or capture distant voice dialogue for broadcast and video situations.

The SM4000 suspension mount is included in the package, allowing the 4017E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.


At any time and with no tools necessary it is possible to transform the basic 4017E microphone into a new configuration by combining it with another DPA microphone capsule or preamp.

View More Details

Directional pattern: Supercardioid, lobe-shaped

Principle of operation: Pressure gradient, with interference tube

Cartridge type: Pre-polarized condenser

Frequency range: 20 Hz - 20 kHz

Frequency range, ± 2 dB, at 60 cm: 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz

Sensitivity, nominal, ± 2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))

Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 81 dB(A)

Total Harmonic Distortion (THD): < 1 % up to 137 dB SPL peak

Dynamic range: Typ. 124 dB

Max. SPL, peak before clipping: 138 dB

Output impedance: 100 Ω

Minimum load impedance: 2 kΩ

Cable drive capability: 100 m (328 ft)

Output balance principle: Impedance balancing

Common Mode Rejection Ratio (CMRR): > 40 dB

Power supply (for full specifications): 48 V Phantom power (± 4 V)

Current consumption: 3.5 mA

Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Color: Matte black

Weight: 121 g (4.3 oz)

Microphone diameter: 19 mm (0.75 in)

Capsule diameter: 19 mm (0.75 in)

Microphone length: 125 mm (4.9 in)

Output voltage, RMS: 2.2 V

Polarity: +V at pin 2 for positive sound pressure

Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)

Relative Humidity (RH): Up to 90%
