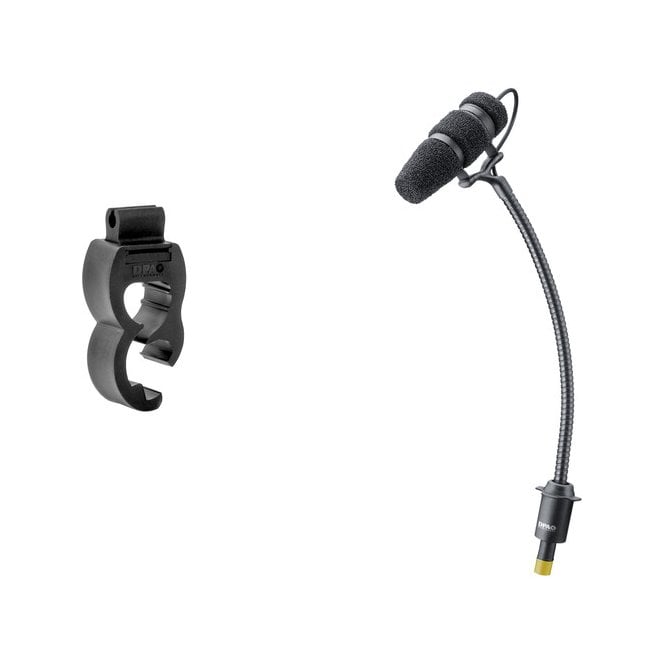

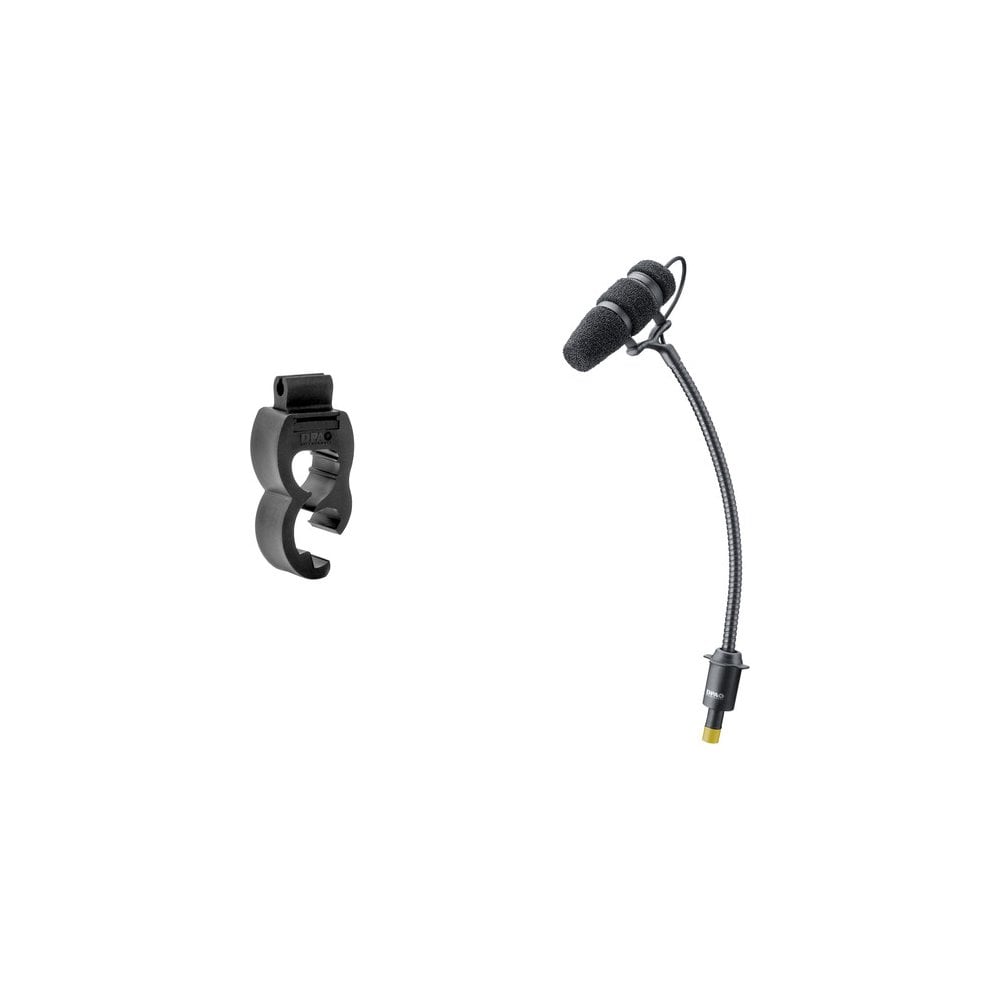

DPA 4099-DC-2-201-D Supercardioid Clip Microphone For Drum

DPA 4099-DC-2-201-D (4099DC2201D, 4099_dc_2201_d, 4099/DC/2/201/D, 4099/dc/2/201/d) Supercardioid Clip Microphone For Drum

4099D is a microphone solution that allows for high quality audio capture of drums and percussion instruments. The low profile and unobtrusive design provides visual elegance along with uncompromised sound quality and accurate dynamics. The unique and flexible clip-on system provides fast, stable and repeatable positioning. The mics can be easily positioned at different angles via the flexible gooseneck to fit different drums and allow a variety of sound nuances. The 4099D includes a 3-pin XLR phantom power adapter.

The 4099D unveils a revolutionary new 90 degree" system which provides many more mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90 degrees, the number of mic positions is doubled.4099D can easily be combined in numerous ways and with a wide variety of microphones. For bass drum, the VC4099 clip fits perfect on the rim and makes a DPA Microphones drum-sound revelation possible at a reasonable price level. With the d:vote 4099D capable of handling high pressure levels it is also perfect for hi-hats, cymbals and tom-toms. Simply add the UC4099 Universal Clip to your kit. The UC4099 Universal clip is available as a separate accessory and also comes with the d:vote 4099U.

Microphone

• Form Factor: Gooseneck
• Operating Principle: Pressure Gradient
• Capsule: Electret Condenser
• Polar Pattern: Supercardioid

Performance

• Frequency Range: 20 Hz to 20 kHz ±2 dB (at 7.9" / 20 cm)
• Maximum SPL: 152 dB SPL
• Impedance: 35 Ohms ± 14%

Sensitivity:

• 2 mV/Pa
• -54 dBV/Pa
• Dynamic Range: 109 dB
• Signal-to-Noise Ratio: 66 dB A-Weighted (1 kHz, at 1 Pa/94 dB SPL)
• Equivalent Noise Level: 28 dB A-Weighted (20 μPa, Typical)
• 31 dB A-Weighted (20 μPa, Max)
• THD: < 1%
• CMRR: 60 dB

Connectivity

• Output Connectors: 1 x Microdot
• Cable Length: 5.9' / 1.8 m

Power

• Operating Voltage: 5 to 50 V
• Operating Current Consumption: 1.5 mA

Physical

• Operating Temperature: -40 to 113°F / -40 to 45°C
• Operating Humidity: 0 to 90%
• Dimensions: ø: 0.21 x L: 1.8" / ø: 5.4 x L: 45 mm (Microphone)
• L: 5.5" / L: 140 mm (Gooseneck)
• Weight: 0.95 oz / 27 g
/ul>

In The Box:

• DPA Microphones d:vote 4099D Supercardioid Clip Microphone for Drum
• Clip to Attach on Drums and Various Percussion
• XLR Adapter
