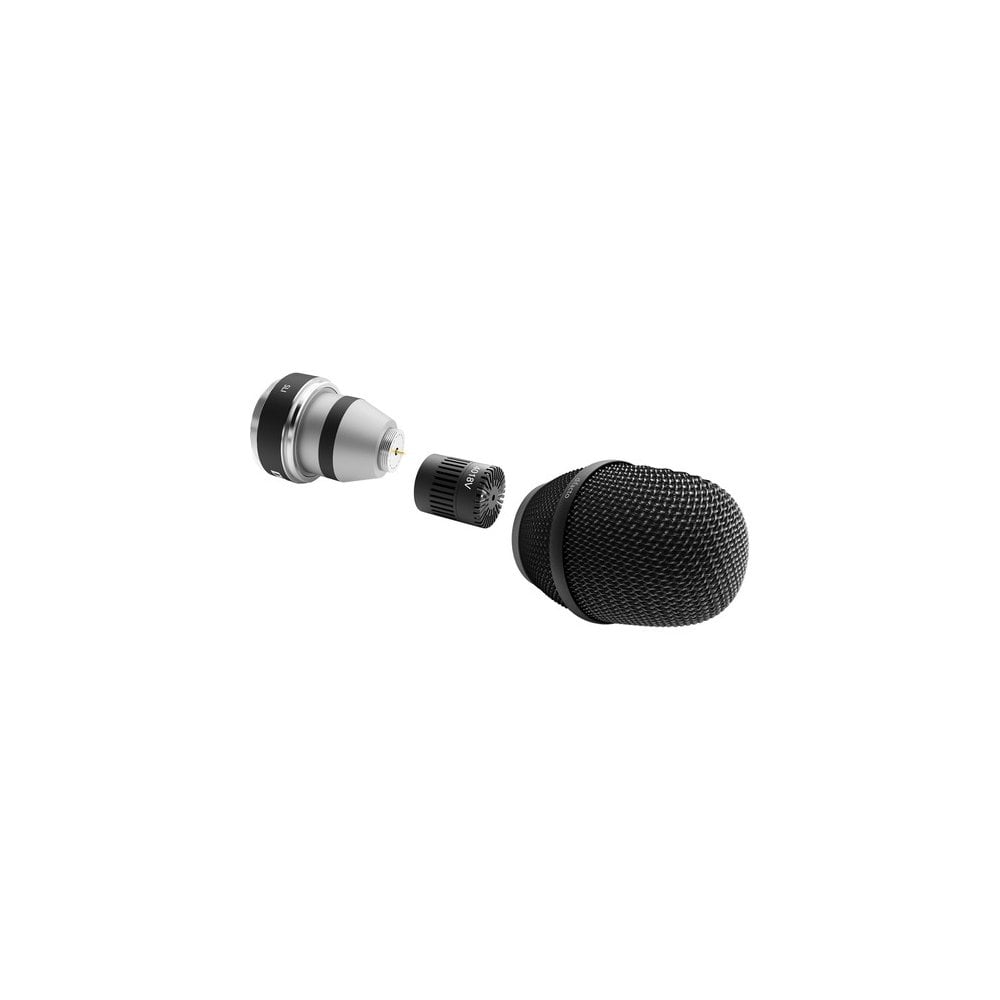

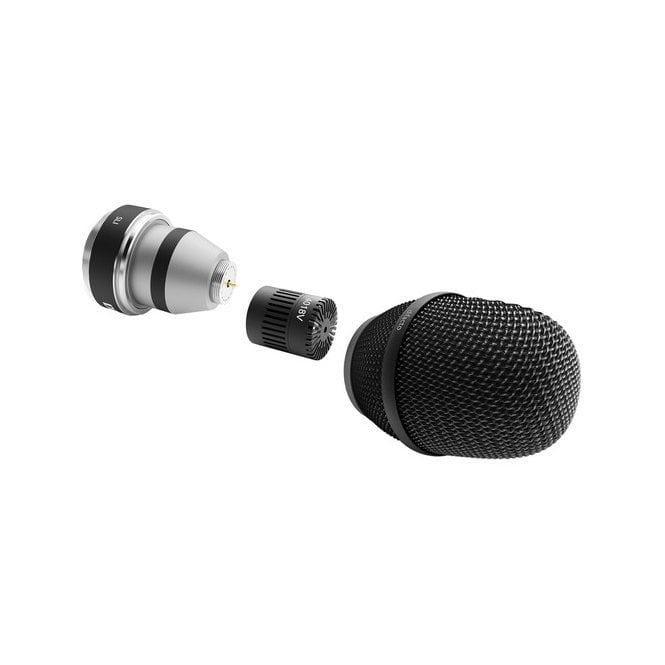

The d:facto™ Vocal Microphone 4018V B SL1 (4018V-B-SL1, 4018V_B_SL1, 4018V/B/SL1) is engineered especially for vocal performances onstage. It captures electrifying stage performances and accurately replicates a singer's voice transparently, consistently and thrillingly. The mic is optimized for use in sound reinforcement as well as recording applications. It offers natural sound, high separation from distant sound sources and SPL handling up to 160 dB. The phantom-powered DPA handle has a sleek look and state-of-the-art electronic design. And, if you decide to go wireless, you can just switch to an adapter for wireless at a quarter of the cost of a new microphone. The modular nature of the d:facto™ seriesallows you to switch both the capsule as well as the adapter. The d:facto™ Supercardioid Capsule features an isolation-optimized supercardioid polar pattern. It is specifically designed to augment the human vocal range. It uses directional characteristic from the best of two worlds – both cardioid and supercardioid patterns. The capsule’s directional pattern and definition gives high separation and true sound color onstage. It is ideal for PA amplification and recording. Frequency response and phase, both on- and off-axis, is linear. You can remove the capsule and replace it with any other d:facto™ or d:dicate™ capsule if your needs change. The mic also features a robust three-stage pop protection grid built into the microphone that removes unwanted noise. Although this version of the d:facto™ Vocal Microphone comes with a d:facto™ Handle for a wired solution, the d:facto™ Vocal Microphone is also the perfect choice to use with your favorite wireless system.
Specifications Directional pattern Supercardioid Principle of operation Pressure gradient Cartridge type Pre-polarized condenser Frequency range 20 Hz - 20 kHz, permanent third order high pass filter at 80 Hz Frequency range, ±2 dB, at 12 cm (4.7 in) 100 Hz - 16 kHz with 3 dB soft boost at 12 kHz Sensitivity, nominal, ±2 dB at 1 kHz 5 mV/Pa; -46 dB re. 1 V/Pa Equivalent noise level, A-weighted Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A)) S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 75 dB(A) Total harmonic distortion (THD) < 1% up to 139 dB SPL peak Dynamic range Typ. 120 dB Max. SPL, peak before clipping 160 dB Output impedance 100 Ω Minimum load impedance 1 kΩ Cable drive capability 100 m (328 ft) Output balance principle Impedance balancing with Active Drive Common mode rejection ratio (CMRR) > 50 dB at 1 kHz Power supply (for full performance) 48 V Phantom power (± 4 V) Current consumption Max. 2 mA Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color Matte black Weight 309 g (10.9 oz) Microphone diameter 52 mm (2.05 in) Capsule diameter 19 mm (0.75 in) Microphone length 205 mm (8.1 in) Maximum output voltage, RMS 8 V Polarity +V at pin 2 for positive sound pressure Temperature range -40°C to 45°C (-40°F to 113°F) Relative humidity (RH) Up to 90%
