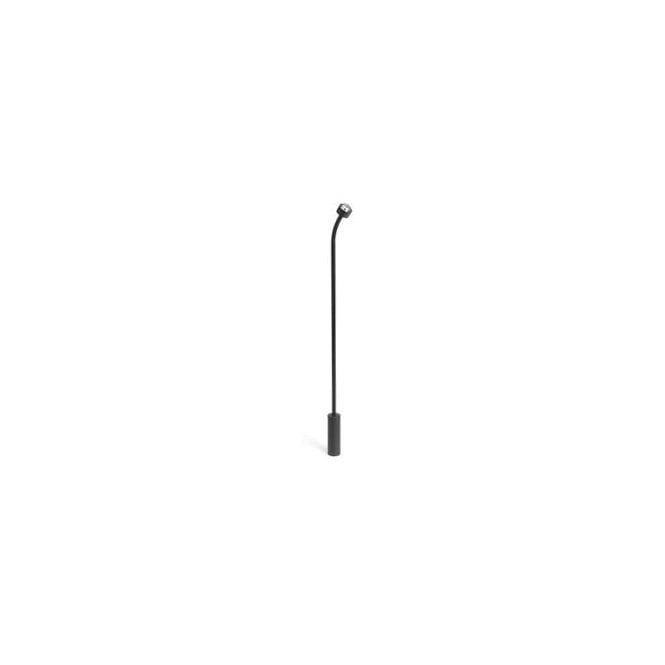

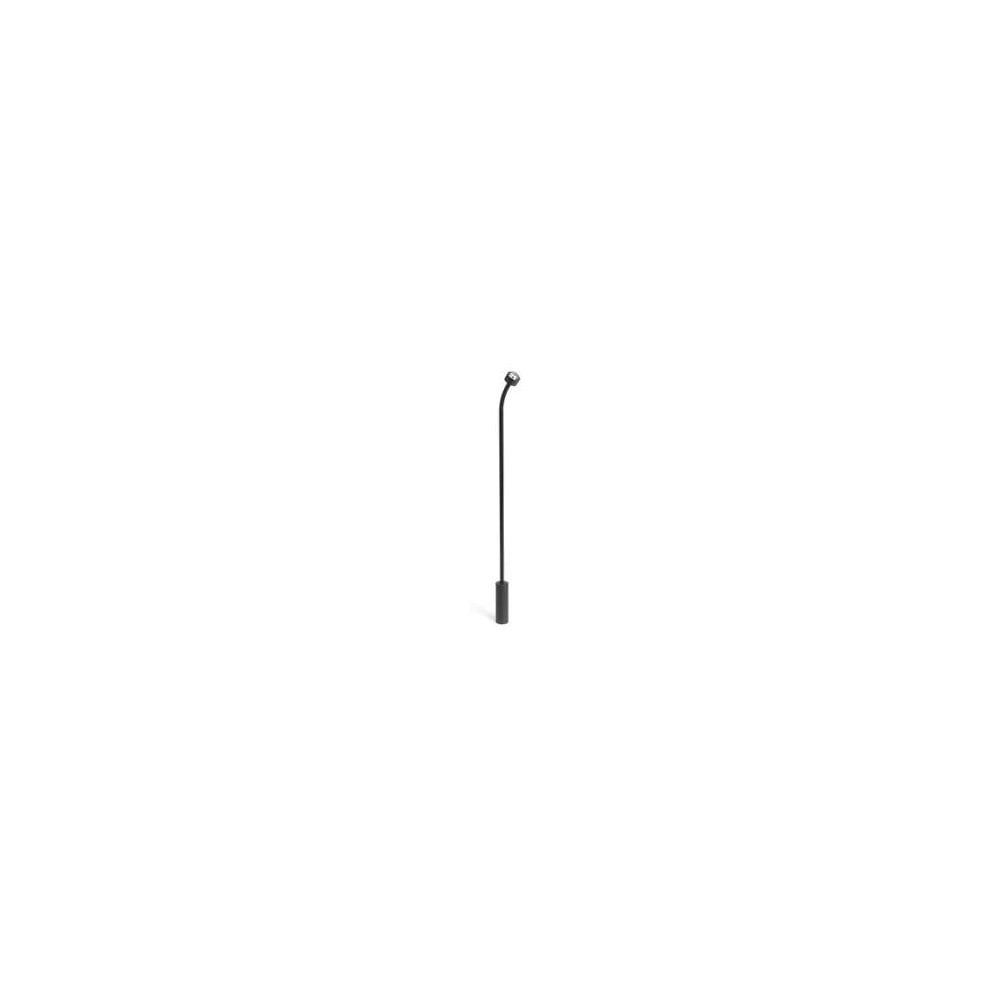

DPA MMP-F75 Modular Active Boom, 77 cm

DPA MMP-F75 (mmp/f75, MMP/F75, MMP_F75, mmp_F75) Modular Active Boom, 77 cm

For podium or stylish floor stand applications, the MMP-F preamp series is available in different lengths and gooseneck choices. All equipped with state-of-the-art preamp design and sleek appearance, they fit any d:dicate modular capsule. Excellent radio frequency rejection is obtained through the DPA designed impedance balancing with active drive. Custom lengths (up to 120cm) and gooseneck choices (top/bottom/both) can be ordered at a custom fee charge.

• Output Connector: XLR-3M. Pin 1: shield, Pin 2 signal + phase, Pin 3: - phase
• Low-Cut Filter: -3 dB: 15 Hz
• Noise: Noise with shorted input, A-weighted: 0.6 µV
• Output Voltage: RMS: 2.2 V
• Peak: 3.1 V
• Type Of Electronic Circuit: Active
• Total Harmonic Distortion (THD): @1VRMS, 1kHz: < 0.2 %
• Dynamic Range: 131 dB
• Output Impedance: 100 Ω
• Minimum Load Impedance: 2 kΩ
• Current Consumption: 3.5 mA
• Output Balance Principle: Impedance balancing
• Common Mode Rejection Ratio: > 40 dB
• Power Supply: For Full Specifications: 48 V Phantom power (± 4 V)
• Cable Drive Capability: 328' (100 m)
• Filters High Boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
• Temperature: -40 to 113 °F (-40 to 45 °C)
• Relative Humidity: Up to 90%
• Diameter: 0.75" (19 mm)
• Boom Length: 75 cm
• Dimensions (LxDiameter): 1.6 x 0.75" (41 x 19mm)

In The Box:

• DPA Microphones d:dicate MMP-F Modular Active, 75cm with Gooseneck Top
