DPA ST4006C, ST4006, C ST4006-C, ST4006/C Stereo Pair w. 2 x 4006C, Clips, Windscreens in Peli Case

code: ST4006C
  • £3,223.17
  • RRP: £3,540.00
Status   |   Usually dispatched within 24 hours
Loading...

DPA ST4006C (ST4006, C ST4006-C, ST4006/C) Stereo Pair w. 2 x 4006C, Clips, Windscreens in Peli Case

FEATURES:

  • carefully matched microphones
  • compact size and natural sound
  • full-bodied sound from a small-bodied mic
  • PeliTM Case transportation and protection

Wherever a small, lightweight, inconspicuous microphone for top-quality recording is required, the compact design and clean, transparent sound of our versatile 4006C makes it the perfect choice. Particularly popular as A-B stereo pairs in concert halls where quality recordings can sometimes be compromised by classic architecture, the 4006Câ€â„¢s can be mounted, hung or concealed to create clean, transparent recordings.

The DPA ST4006C is a complete DPA 4006C Stereo Pair with two carefully factory-matched omni microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, a stereo match is even closer.

The specially selected DPA 4006C microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5°.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Included in this kit:

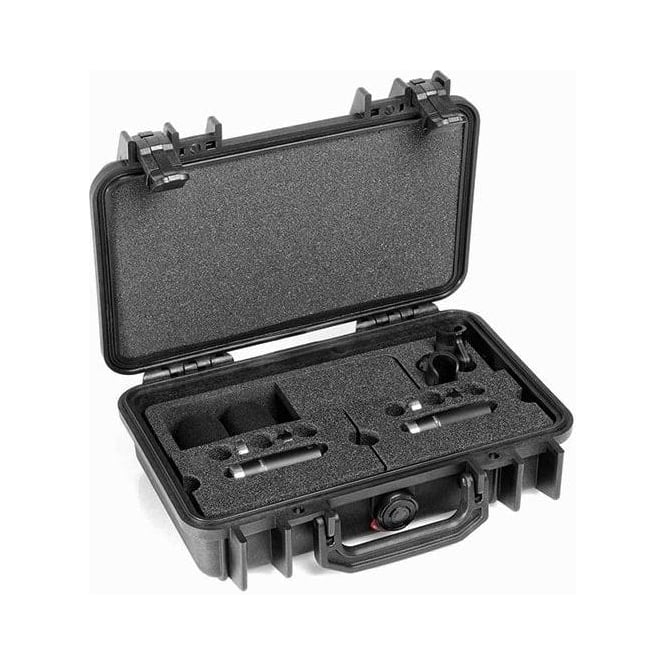

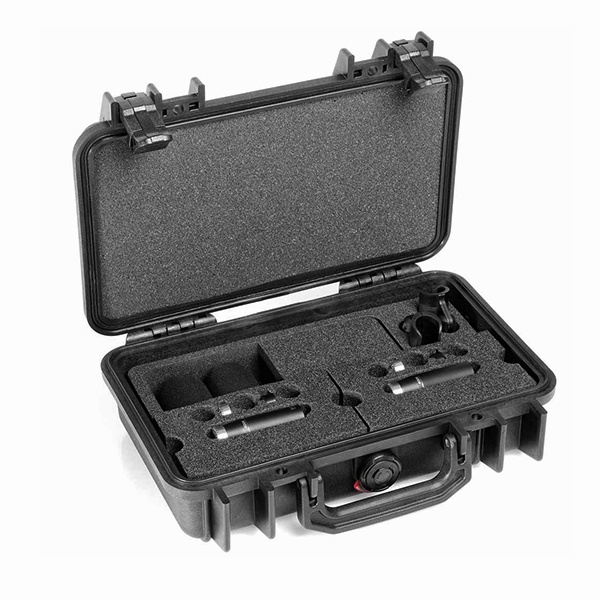

  • Two carefully matched 4006C omni microphones, sturdy PeliTM case, holders, grids and windscreens.





Specifications for d:dicateâ„¢ ST4006C Stereo Pair with 4006C Compact Omnis

Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 10 Hz - 20 kHz
Frequency range, ± 2 dB: 20 Hz - 20 kHz
Sensitivity, nominal, ± 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 134 dB SPL peak
Dynamic range: Typ. 119 dB
Max. SPL, peak before clipping: 140 dB
Output impedance: < 200 ohm
Minimum load impedance: 2 kohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 63 g (2.2 oz)
Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter: 16 mm (0.6 in)
Microphone length: 64 mm (2.5 in)
Output voltage, RMS: > 4 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up to 90%
Matching tolerance: ± 0.5 dB
Phase deviation for kit: < 5°
