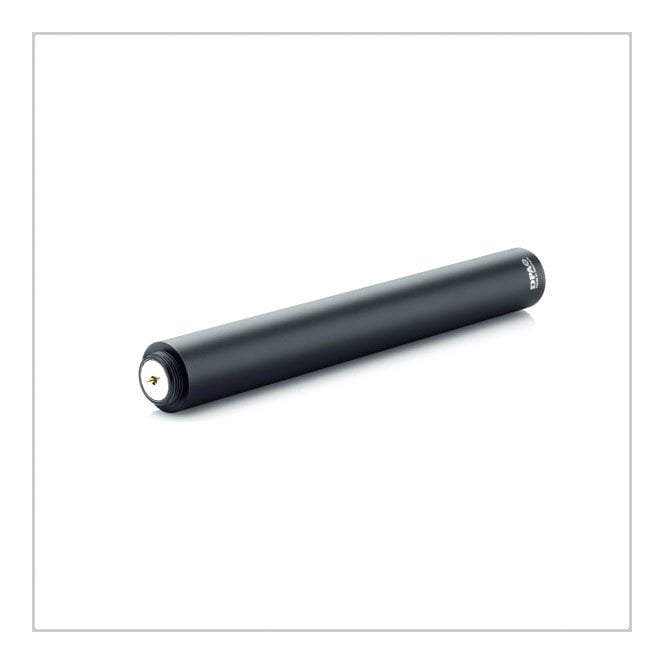

DPA Modular Active Boom, 32 cm (13 in)

code: MMP-F30
  • £370.00
  • RRP: £370.00
Availability | Usually dispatched within 24 hours
Loading...

Features

  • For Table or Podium Boom
  • Modular Output Stage for MMC Capsules
  • Active Drive for Impedance Balancing
  • Phantom Powered: 48V

DPA MMP-F30 (MMPF30, MMP/F30, MMP F30, MMP.F30) Modular Active Boom, 32 cm (13 in)

The d:dicate MMP-F Modular Active Boom, 30cm with Gooseneck Top by DPA Microphones is a preamplifier and output stage for DPA Reference Standard MMC series capsules. The modular capsule attaches to the MMP-F preamplifier. When used with a DPA microphone capsule it provides power for podium, floor stand, or table top microphone. The MMP-F provides and XLR output and 48V phantom power via an external source. It features impedance balancing with active drive and has excellent radio frequency rejection. The optional stands are sold separately.

  • Compatible With The Following Capsules:
  • MMC4006 Omni Microphone Capsule
  • MMC4007 Omni Microphone Capsule, 12mm
  • MMC4011 Cardioid Microphone Capsule
  • MMC4015 Wide Cardioid Microphone Capsule
  • MMC4017 Shotgun Microphone Capsule
  • MMC2006 Twin Diaphragm Omni Microphone Capsule
  • MMC2011 Twin Diaphragm Cardioid Microphone Capsule
  • Hidden mounting holes below the top cover allow for permanent mounting to any flat surface, and it looks
  • just great. It can be ceiling-mounted upside down or positioned on top of a table.
  • Output Connector XLR-3M. Pin 1: shield, Pin 2 signal + phase, Pin 3: - phase
  • Low-Cut Filter -3 dB: 15 Hz
  • Noise Noise with shorted input, A-weighted: 0.6 µV
  • Output Voltage RMS: 2.2 V
  • Peak: 3.1 V
  • Type Of Electronic Circuit Active
  • Total Harmonic Distortion (THD) @1VRMS, 1kHz: < 0.2 %
  • Dynamic Range 131 dB
  • Output Impedance 100 Ω
  • Minimum Load Impedance 2 kΩ
  • Current Consumption 3.5 mA
  • Output Balance Principle Impedance balancing
  • Common Mode Rejection Ratio > 40 dB
  • Power Supply For Full Specifications: 48 V Phantom power (± 4 V)
  • Cable Drive Capability 328' (100 m)
  • Filters High Boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
  • Temperature -40 to 113 °F (-40 to 45 °C)
  • Relative Humidity Up to 90%
  • Diameter 0.75" (19 mm)
  • Boom Length 30 cm
  • Dimensions (LxDiameter) 1.6 x 0.75" (41 x 19mm)
  • Weight Not listed by manufacture

In the Box

  • DPA Microphones d:dicate MMP-F Modular Active, 30cm with Gooseneck Top
