the ultimate choice for the demanding engineer and audio purist
a complete state-of-the-art A-B Stereo Kit
designed for a broad range of uses

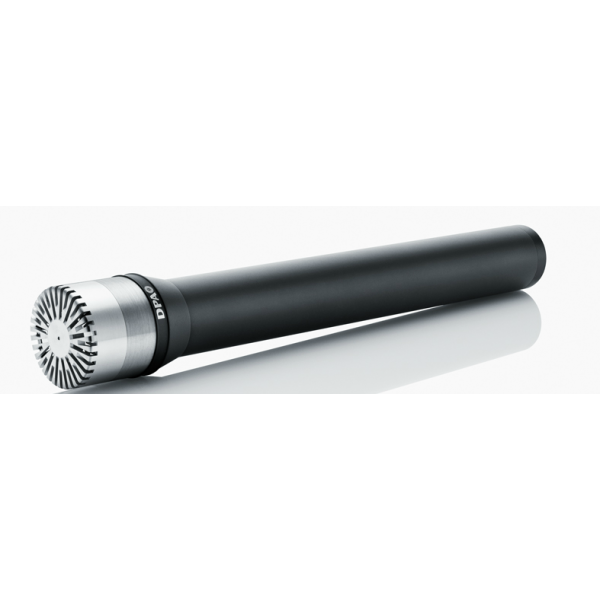

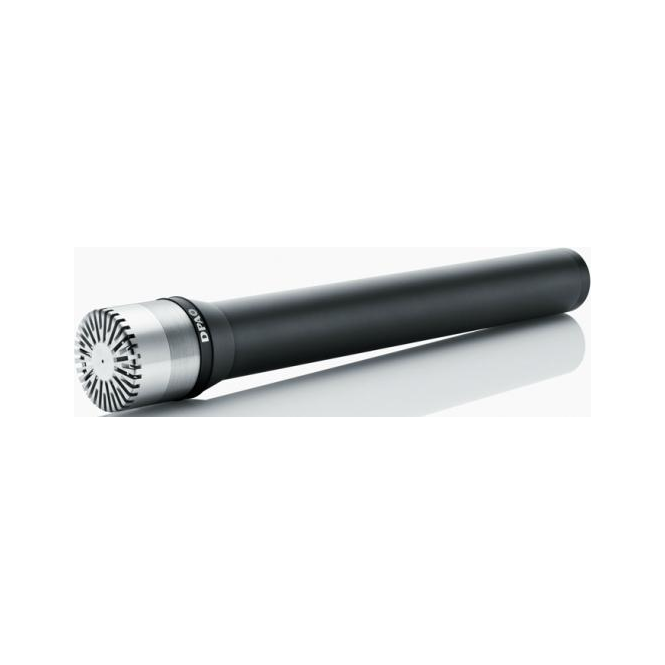

The 3532-SP is a complete state-of-the-art A-B Stereo Kit with two 4041-SP microphones, carefully matched within 1dB on both frequency response, sensitivity and self-noise. It is the ultimate choice for the demanding engineer and audio purist who emphasises clarity, openness, precision, low self-noise and high sensitivity.
The kit is designed for a broad range of uses, e.g. as main pair for classical, jazz and folk genres, grand pianos, guitars, overheads or close-miking drums, choirs, strings, wind instruments and much more. You get a bright and transparent sound quality with lots of headroom. With its on-axis soft boost, the 4041-SP omni microphone can be angled to use as a natural equalizer.
Specifications for d:dicate™ 3532-SP Large Diaphragm Stereo Kit w. 4041-SP
Directional characteristics:
Omnidirectional
Principle of operation:
Pressure
Cartridge type:
24 mm (1 in) condenser w. stainless steel diaphragm
Frequency range, +/- 2 dB:
20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Equivalent noise level, A-weighted:
Max. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4:
Max 20 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):
86 dB
Total Harmonic Distortion (THD):
<0.5% up to 120 dB SPL peak, <1% up to 126 dB SPL peak
Dynamic range:
Typ. 118 dB
Max. SPL, peak before clipping:
134 dB
Output impedance:
Cable drive capability:
Up to 100 m (328 ft)
Power supply:
48 V Phantom power
Connector:
3-pin XLR-M (Standard P48)
Weight:
190 g (6.7 oz)
Capsule diameter:
24 mm (1 in)
Microphone length:
170 mm (6.69 in)
Matching tolerance (frequency response and sensitivity):
±0.5 dB (20 Hz - 20 kHz)
Phase deviation for kit:
< 5°
code:
