DPA 4041-SP Large Diaphragm Microphone, P48

code: 4041-SP
  • £3,669.00
  • RRP: £3,670.00
Item Available | Usually dispatched within 24 hours

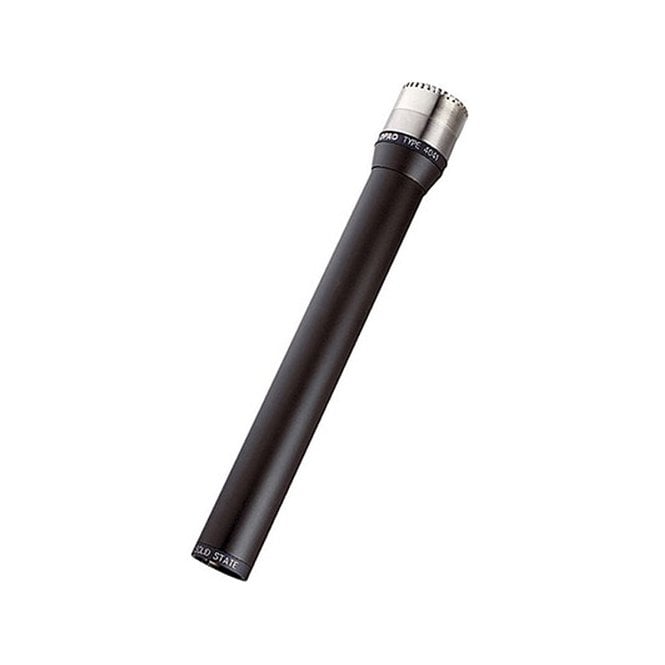

DPA 4041-SP (4041SP 4041 SP 4041/SP) Large Diaphragm Microphone, P48


  • handles high sound pressure levels with no distortion
  • natural and transparent sound

The 4041-SP is designed to work in a standard 48 V phantom power environment. Since the capsule is the same as for the high voltage alternative 4041-S, the 4041-SP offers the same superior sound quality, with very slight changes in the specifications.

The cartridge MMC4041 can be unscrewed from the preamplifier which allows for the exchange of the preamplifier module. It is therefore always possible to upgrade to the high voltage preamplifier, also using the DPA mic amp HMA5000.

The frequency response has a 4-6 dB soft lift around 8 kHz and matches the response of the legendary 4040 Hybrid Microphone. This microphone offers a totally transparent audio path with an exceptionally low noise floor of maximum 8 dB(A) and a SPL handling capability of 134 dB SPL peak.


View More Details

Specifications for d:dicate™ 4041-SP Large Diaphragm Microphone, P48

Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: 24 mm (1 in) condenser with stainless steel diaphragm
Frequency range, ± 2 dB: 20Hz - 20kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ± 2 dB: 70 mV/Pa; -23,1 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 86 dB(A)
Total harmonic distortion (THD): <0.5% THD up to 120 dB SPL peak, <1% THD up to 126 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, peak before clipping: 134 dB
Output impedance:
Cable drive capability: Up to 100 m (328 ft)
Current consumption: 2.20 mA
Connector: 3-pin XLR-M (Standard P48)
Weight: 190 g (6.7 oz)
Capsule diameter: 24 mm (1 in)
Length: 170 mm (6.69 in)
