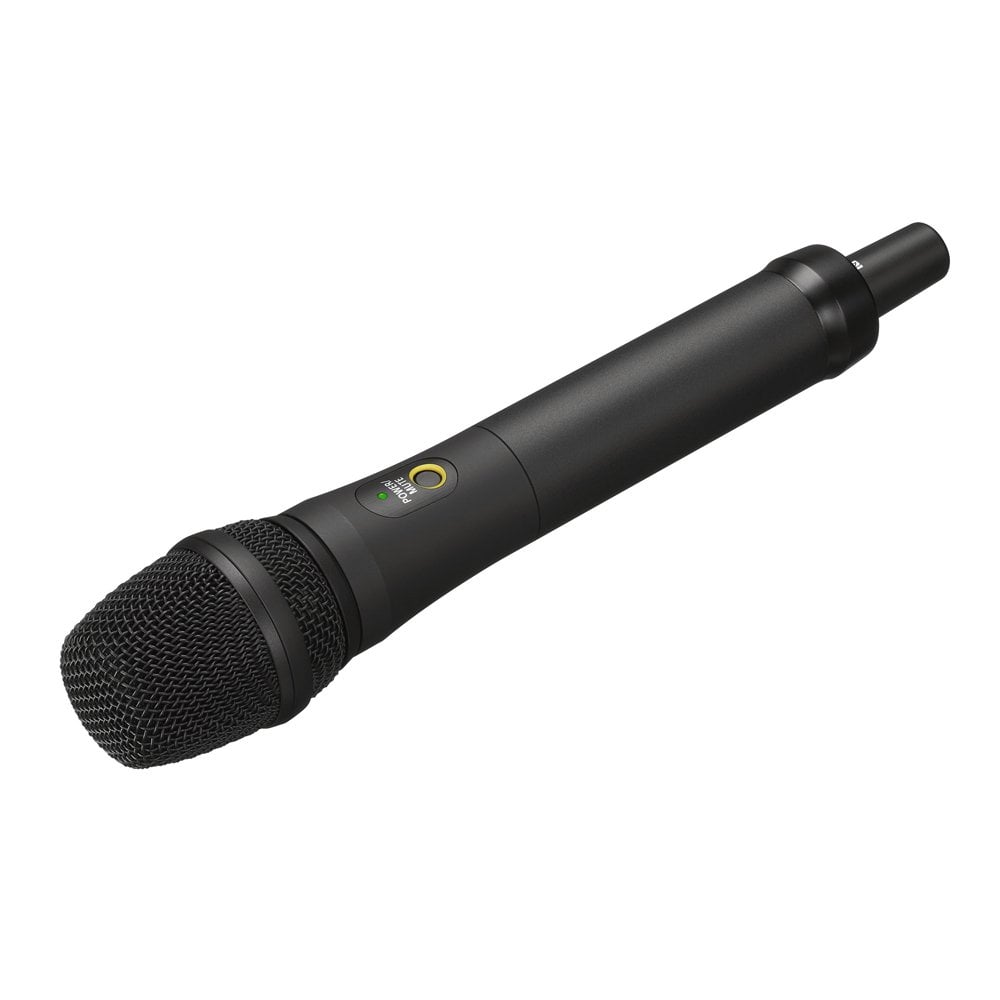

Sony UTX-M40-K42 UWP-D Dynamic Handheld Microphone

Sony UTX-M40-K42 (UTX-M40/K42, UTX-M40_K42, UTXM40-K42, UTXM40/K42, utx-m40/k42) UWP-D Dynamic Handheld Microphone

Sony UTX-M40 / K42 Handheld UWP-D (638.025 MHz-694,000MHz)

As high resolution content begins to dominate the video production industry, the demand for high quality audio is on the rise. Today's content creators need to achieve high-quality audio recording quickly, reliably, and with limited resources.

Delivering superb sound quality with digital processing, reliable RF transmission, True Diversity dual tuner reception and user-friendly features, the UWP-D series is the ideal partner for ENG (news production) and VET (production field), as well as documentaries and weddings.

Digital audio processing for high quality sound

Sony's advanced digital audio processing technology ensures high-quality sound with enhanced transient response performance. A new audio interface [optional] enables direct digital audio recording with multiple Sony professional cameras and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface Shoe (MI) Adapter, without going through the steps of A / D and D / A conversion to ensure excellent sound quality.

Quick and easy frequency setting

Sony's user-friendly NFC SYNC function enables fast, intuitive and secure channel setting between transmitter and receiver.

Lightweight and compact design

The reduced size and weight of the system allows excellent mobility across a variety of applications, including news production, documentaries, weddings and remote production. The compact size and light weight of the receiver make it the perfect companion for using small cameras and interchangeable lens digital cameras.

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wavelength wire antenna
• Carrier Frequencies14UC : 42CE : 638.025 MHz to 694.000 MHz(UHF-TV channels 42 to 48)

RF Output Power:

• 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
• 10 mW/2 mW selectable (J, E, KR models)

• Capsule Type: Dynamic
• Directivity: Uni-directional
• Reference Audio Input level: –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
• Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit )
• Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)

Frequency Response:

• 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
• 70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio:

• 60 dB (–60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
• 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

• Distortion: 0.9% or less (–60 dBV, 1 kHz input )
• Audio Delay: Approx. 0.35 ms

Tone Signal Frequency:

• In UWP-D compander mode: 32.382 kHz
• In UWP compander mode: 32 kHz
• In WL800 compander mode: 32.768 kHz

• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB Type-C connector)

Battery life*:

• Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
• Approx. 10 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)
• Mass: Approx. 255 g (9.0 oz) (excluding batteries)

In the Box

• 1 x Sony UTX-M40 / K42 (638.025 - 694.000 MHz)
