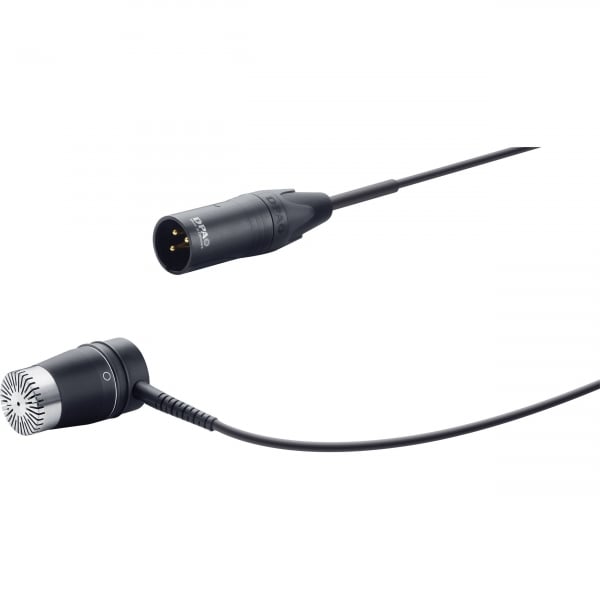

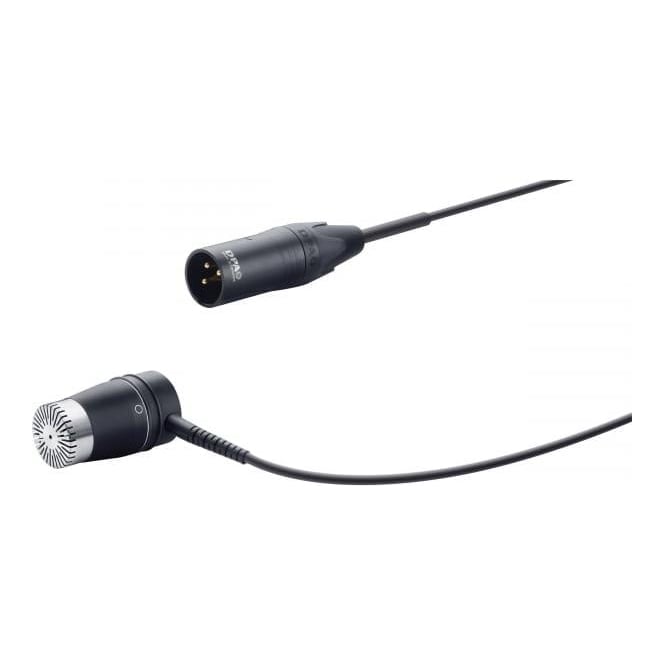

Dpa 4006ES Omni Microphone with Active Side Cable
When small, lightweight and barely visible microphones for top-quality recordings are required, the active cable design and clean, transparent sound of our ultra-compact d:dicate™ 4006E Omnidirectional Microphone makes them the perfect choice. The mic features an integrated cable solution with either side (4006ES) or rear (4006ER) cable entry.
These mics are particularly popular as A-B stereo or Decca Tree pairs in concert halls. This mic can be mounted, hung or concealed to create clean, transparent recordings. The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.
The d:dicate™ 4006E Omnidirectional Microphone is ideal in theatres, opera houses, concert halls or houses of worship and for film applications, both in the studio and on location. These mics are also popular for ambience miking on soundstages, in sports stadiums and other environments where ambient sound needs to be recorded.
The microphone capsule
The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).
A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.
A truly flexible range
This mic is part of the flexible d:dicate™ Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate™ 4006E Omnidirectional Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.
The d:dicate™ 4006ES replaces the non-modular legacy 4051 Omnidirectional Condenser Microphone and the d:dicate™
Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 10 Hz - 20 kHz
Frequency range, ±2 dB 20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 79 dB(A)
Total harmonic distortion (THD) < 1% up to 132 dB SPL peak
Dynamic range Typ. 117 dB
Max. SPL, peak before clipping 132 dB
Output impedance 100 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing
Common mode rejection ratio (CMRR) > 40 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 3.5 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 114 g (4 oz)
Microphone diameter 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter 16 mm (0.6 in)
Microphone length 35 mm (1.38 in)
Maximum output voltage, RMS 2.2 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
Matching tolerance (frequency response and sensitivity) ±0.5 dB
Phase deviation for kit < 5°
