Sennheiser EW-D ME3 Lavalier Microphone Set (S4-7) 630 - 662 MHz
Sell Your Gear
warranty on this product

Sennheiser EW-D ME3 Lavalier Microphone Set (S4-7) 630 - 662 MHz

code: 508714
Know Your Frequency | Click Here
  • £503.00
  • RRP: £503.00
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

  • Digital transmission in the UHF spectrum significantly boosts range, reliability, and scalability.
  • The Smart Assist App connects via Bluetooth Low Energy, allowing for easy setup and remote operation.
  • Auto-scan function quickly establishes reliable connections with minimal effort.
  • A 134 dB audio input dynamic range ensures no need for sensitivity adjustments while capturing every detail.
  • Intermodulation elimination allows channels to be evenly spaced in a 600 kHz equidistant tuning grid.
  • With 56 MHz of tuning bandwidth and equidistant spacing, the system supports up to 90 channels.
  • Fine-tuning is possible with 2,240 selectable frequencies.
  • The optional lithium-ion battery pack (sold separately) provides up to 12 hours of operation, or up to 8 hours with the included 2x AA batteries.

Sennheiser 508714 (50-87-14, 50/8714, 50 87 14, 50/87-14) EW-D ME3 Lavalier Microphone Set (S4-7) 630 - 662 MHz

A complete digital wireless lavalier set designed for singers and speakers, featuring the acclaimed Sennheiser ME 3 cardioid headset microphone.

This versatile, feature-packed digital wireless system is ideal for speakers and presenters, offering effortless product pairing and control through the EW-D Smart Assist App. Housed in durable metal, the sturdy bodypack transmitter and the discreet ME 3 clip-on cardioid microphone, known for its exceptional speech clarity, are perfect for daily use on stage.

Raising the bar

Evolution Wireless Digital sets a new standard by offering greater dynamic range than any other wireless system available today. With the ability to automatically lock onto the most reliable signal in seconds and scalability to support up to 90 channels, thanks to its 56 MHz tuning bandwidth, this system truly stands apart from the competition.

Equidistant Spacing

Evolution Wireless Digital incorporates an equidistant tuning grid, a feature previously reserved for our top-tier Digital 6000 and Digital 9000 systems. Its high-quality components with outstanding linearity prevent intermodulation between EW-D transmitters, enabling frequencies to be evenly spaced every 600 kHz. This makes frequency coordination effortless for both wireless novices and experienced professionals, while also enhancing the system's scalability and enabling a high channel count.

Your personal engineer, right in your pocket.

With the Sennheiser Smart Assist app powered by Bluetooth Low Energy, you have complete control at your fingertips. Enjoy a lightning-fast automated setup, mobile access to all system settings, and the convenience of remote monitoring—right from your Android or iOS device. Save time, conserve energy, and perform with confidence.

System

  • Frequency Range (S4-7): 630 - 662 MHz
  • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
  • Audio frequency response 20 Hz - 20 kHz (-3 dB):  3 dBfs
  • Audio THD ≤ -60 dB for 1 kHz: -3 dBfs input level
  • Dynamic range: 134 dB
  • System latency: 1.9 ms
  • Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity: 5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

  • Input voltage: 11 - 13 V ⎓
  • Input current: ≤ 300 mA
  • Transmit power (radiated): BLE: max. 10 mW EIRP
  • Audio output power: 18 dBu max
  • Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
  • Weight (without antennas and power supply): approx. 1000 g (2.2  lbs)

EW-D SK (Bodypack Transmitter)

  • Input voltage: 2.0 - 4.35 V
  • Input current: < 300 mA
  • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth: 200 kHz
  • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
  • Dimensions (without antenna): 63 x 80 x 20 mm (2.48" x 3.15" x 0.79")
  • Weight (without batteries): approx. 120 g (0.26  lbs)

ME 3 (Headset Microphone)

  • Transducer principle: pre-polarized condensor microphone
  • Sensitivity: 1.6 mV/Pa
  • Sound pressure level: 150 dB SPL
  • Pick-up pattern: cardioid
  • Connector: 3.5 mm jack
  • Cable length: approx. 1.60 m (62.99")
  • Temperature range: -10 °C to +55 °C

Set in packaging

  • Dimensions: 405 x 350 x 73 mm (15.91" x 13.78" x 2.87")
  • Weight: 2.8 kg (6.17 lbs)

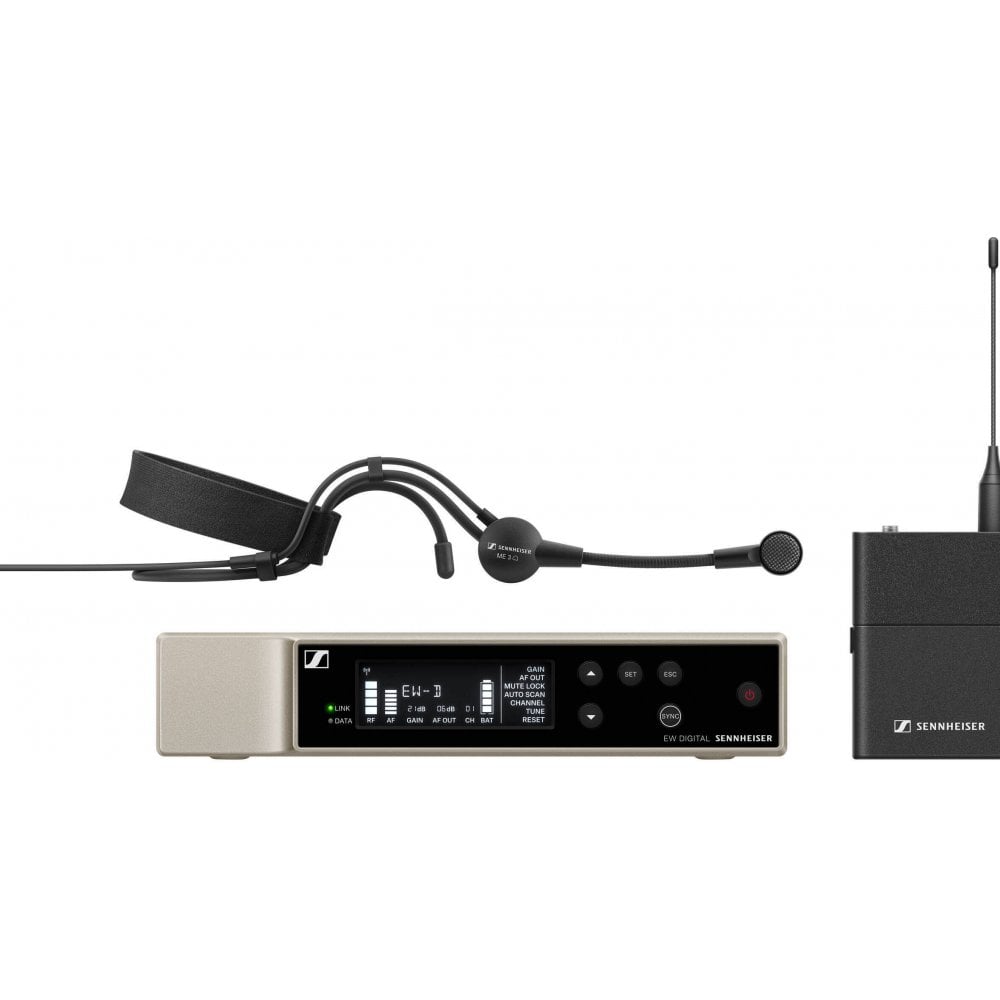

In The Box

  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter
  • ME 3 headset microphone
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet
Be the first to review EW-D ME3 Lavalier Microphone Set (S4-7) 630 - 662 MHz. Write a review ›
