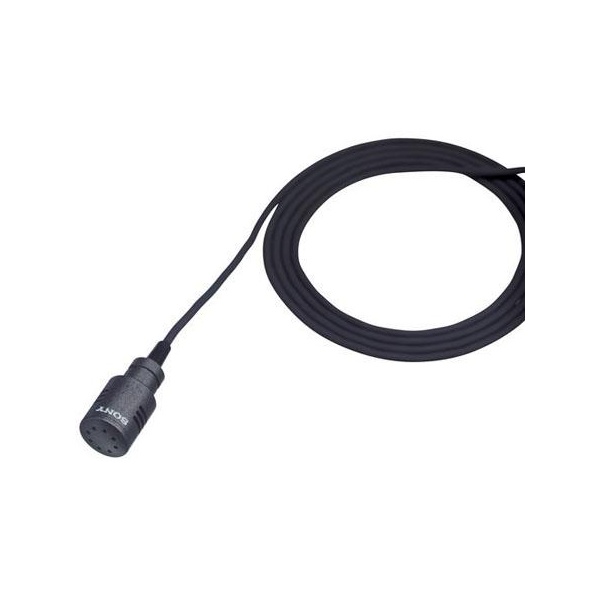

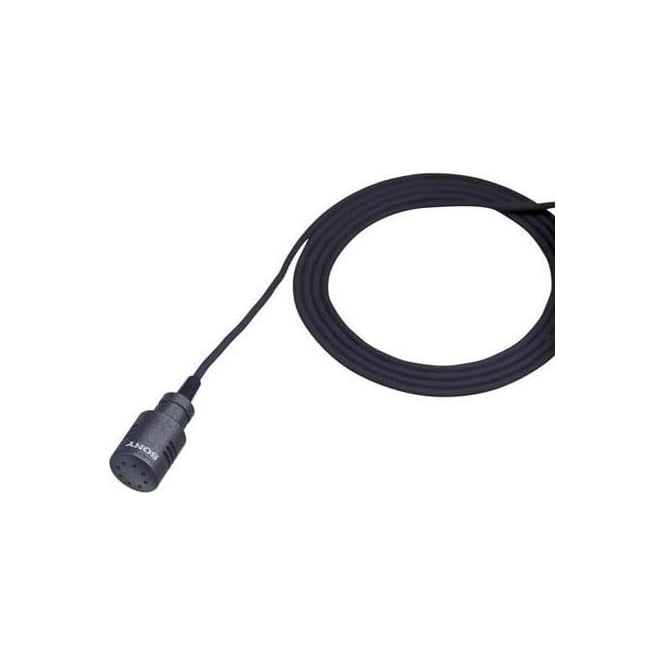

Sony ECM-166BC Uni-Directional Lavalier Electret Condenser Microphone

Sony ECM-166BC (ECM/166BC, ECM_166BC, ECM166BC, ECM 166BC, ecm-166bc) Uni-Directional Lavalier Electret Condenser Microphone

Black coloured uni-directional electret condenser lavalier microphone supplied with a Sony 4-pin connector (SMC9-4P), for use with the WRT-8B/822B Sony bodypack transmitter.

• Resistant to howling by rejecting indirect sound
• Reasonably priced lavalier microphone ideal for institutional use and sound-contracting applications such as speeches, lectures and conferences
• This product comes with PrimeSupport – fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 100 Hz to 10 kHz
• Directivity: Uni-directional
• Sensitivity *[1]: -45 dB (5.6 mV) ±3 dB
• Output Impedance *[2]: 2.5kΩ±30%, Unbalanced
• Dynamic Range: 96 dB or more
• Signal-to-Noise Ratio *[3]: 60 dB or more
• Inherent Noise *[4]: 34 dB SPL or less
• Maximum Input Sound Pressure Level *[5]: 130 dB SPL

General Section

• Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector

Mic Cable:

• 3.9 feet
• 1.2 m

• Power Requirements: DC 1.1 V to 10.0V
• Power Consumption: 0.4 mA or less

Dimensions *[6]:

• φ12.7 X 23.8 mm (Mic head)
• φ1/2 X 15/16 inches (Mic head)

Mass:

• Approx. 28.3 g
• Approx. 1 oz

In the box

• 1x Urethane type windscreen
• 1x Single/horisontal type tie clip
• 1x Operating instructions
