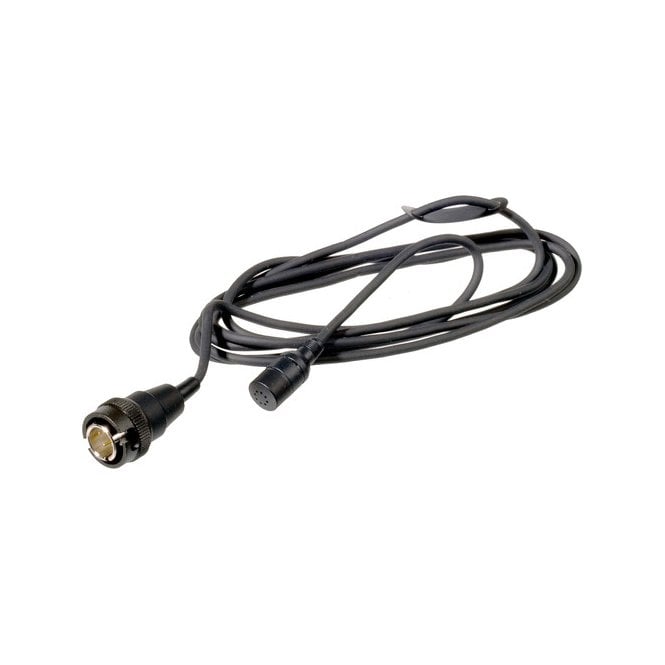

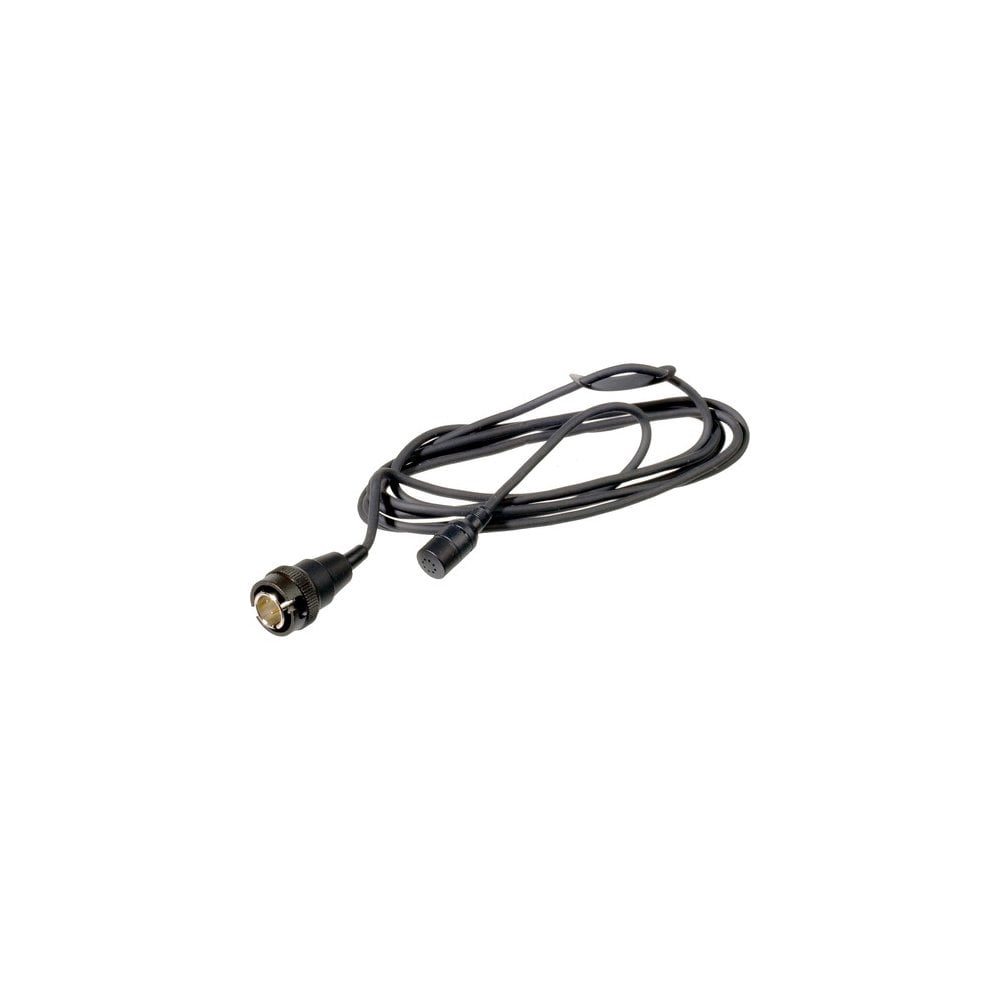

Sony ECM-44BC Affordable Omni-Directional Lavalier Microphone

Sony ECM-44BC (ECM/44BC, ECM_44BC, ECM 44BC, ECM44BC, ecm-44bc) Affordable Omni-Directional Lavalier Microphone

Sony has produced over five million professional ECM (Electret Condenser Microphones) microphones and the ECM-44 is the affordable, general voice model. It provides good sound quality and is widely used in business presentation systems and TV production. The ECM-44 is available in four versions, featuring different connector types. This model, the ECM-44BC, has a 4-pin locking plug for use with bodypack transmitters that use the SMC9-4P connector.

Convenient to use

The ECM-44 is an affordable alternative to the traditional hand held microphone and being 'hands free' it allows the presenter to concentrate on her/his performance

Professional image

Either 'in front of camera' or at a business presentation the ECM-44 creates a professional and tidy image.

Easy to use

It can often be difficult to achieve good quality voice pick-up but the ECM-44 can help get good results. The microphone's capsule is designed for general voice pick-up with a mid-frequency emphasis characteristic and a suitable frequency response.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 40 Hz to 15 kHz
• Directivity: Omni-directional
• Sensitivity *[1]: -40.0 dB (10 mV)
• Output Impedance *[2]: 2.5kΩ±30%, Unbalanced
• Dynamic Range: 90 dB or more
• Signal-to-Noise Ratio *[3]: 62 dB or more
• Inherent Noise *[4]: 32 dB SPL or less
• Induction Noise From External Magnetic Field *[5]: 5 dB SPL or less
• Wind Noise *[6]: 40 dB SPL or less (with windscreen)
• Maximum Input Sound Pressure Level *[7]: 122 dB SPL

General Section

• Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector

Mic Cable:

• 3.9 feet
• 1.2 m

• Power Requirements: DC 1.1 V to 10.0V
• Power Consumption: 0.4 mA or less

Dimensions *[8]:

• φ8.5 x 14.5 mm (Mic head)
• φ11/32 x 19/32 inches (Mic head)

• Approx. 24 g
• Approx. 0.8 oz

In the box

• Sony Lavalier Microphone
• Urethane type windscreen
• Single/horisontal type tie clip
• Operating instructions
• Mic case
