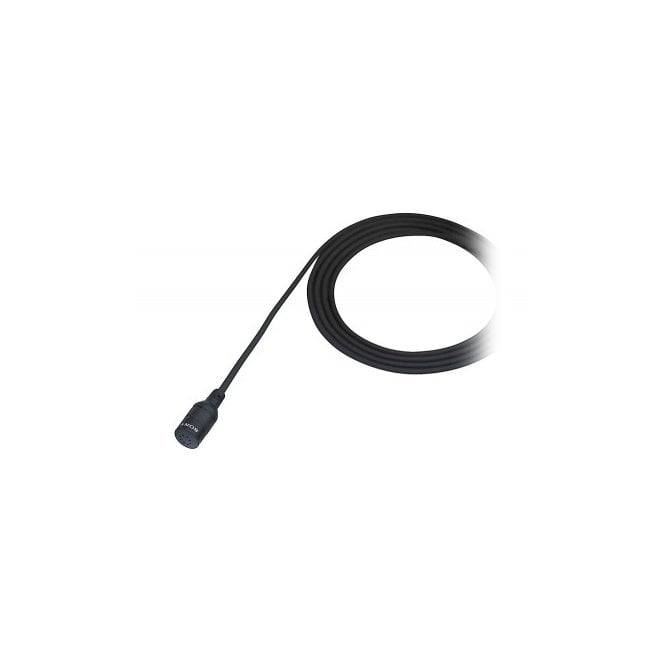

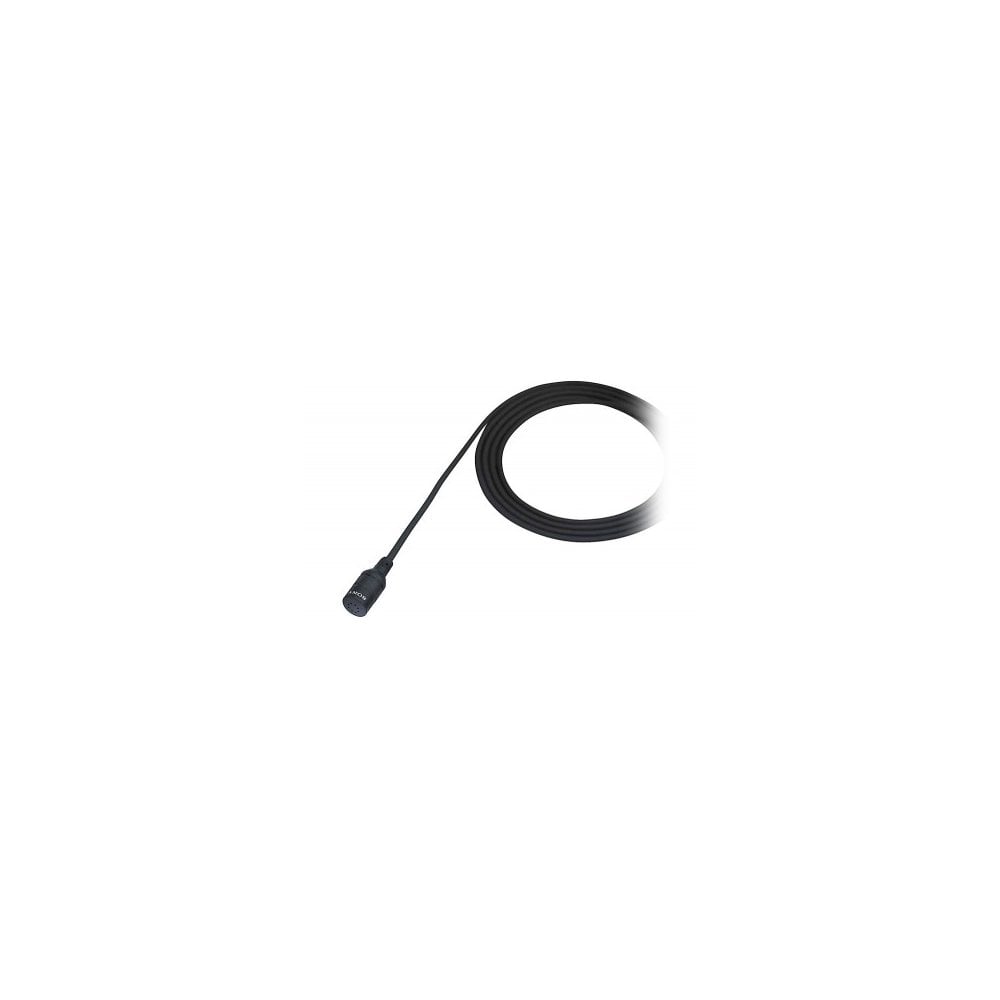

Sony ECM-77BC Omni-Directional Lavalier Electret Condenser Microphone

Sony ECM-77BC (ECM/77BC, ECM_77BC, ECM77BC, ECM 77BC, ecm-77bc) Omni-Directional Lavalier Electret Condenser Microphone

The ECM-77 is probably the most often seen lavalier microphone on TV and it is used widely in both studio production and on location. Its popularity is based on a combination of excellent sound quality, robust construction and an attractive cosmetic design. This microphone is the ECM-77BC supplied with a 4-pin locking plug for use with wireless transmitters which have HIROSE SMC9-4S connector.

Hands Free

As a lavalier microphone, the ECM-77 is an alternative to the traditional hand held microphone and being 'hands free' it allows the presenter to concentrate on her/his performance.

Professional Image

The ECM-77 is probably the most seen microphone on TV and its compact design creates a professional image.

Easy and Familiar Operation

The ECM-77 is an essential tool for achieving good quality voice recording. The microphone's capsule is designed for voice pick-up with an extended frequency response and impressive sensitivity. The popularity of the microphone in TV production means that most sound people will be familiar with using the ECM-77.

Audio Section

• Capsule Type: Electret Condenser
• Frequency Response: 40 Hz to 20 kHz
• Directivity: Omni-directional
• Sensitivity *[1]: -39.0 dB (11.2 mV)
• Output Impedance *[2]: 2.5kΩ±30%, Unbalanced
• Dynamic Range: 90d B or more
• Signal-to-Noise Ratio *[3]: 64 dB or more
• Inherent Noise *[4]: 30 dB SPL or less
• Induction Noise From External Magnetic Field *[5]: 5 dB SPL or less
• Wind Noise *[6]: 40 dB SPL or less (with windscreen)
• Maximum Input Sound Pressure Level *[7]: 120 dB SPL

General Section

• Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector

Mic Cable:

• 3.9 feet
• 1.2 m

• Power Requirements: DC 1.1 V to 10.0V
• Power Consumption: 0.4 mA or less

Dimensions *[8]:

• φ5.6 X 12.5 mm (Mic head)
• φ1/4 X 1/2 inches (Mic head)

Mass:

• Approx. 25.5 g
• Approx. 0.9 oz

In the box

• 1x ECM-77BC Microphone
• 1x Single/horizontal type tie clip
• 1x Metal-mesh type windscreen
